Why Bio-Swales Matter
As cities and campuses grow denser, stormwater management has become a critical part of urban planning and sustainable landscape design. Traditional drainage often leads to flooding, soil erosion, and polluted water bodies.
Enter bio-swales — shallow, vegetated channels designed to slow down, filter, and infiltrate stormwater.
“Bio-swales are more than functional infrastructure — they are landscapes that breathe, filter, and recharge the water cycle.”
For architects and engineers, bio-swales are a perfect intersection of civil engineering, landscape design, and environmental stewardship.
What is a Bio-Swale?
A bio-swale is a gently sloped, vegetated channel that:
- Conveys stormwater from hard surfaces like roads, plazas, or rooftops.
- Cleans pollutants through soil filtration, plant uptake, and microbial action.
- Reduces peak flows to prevent flooding.
- Recharges groundwater where soil permeability allows.
Image Source:

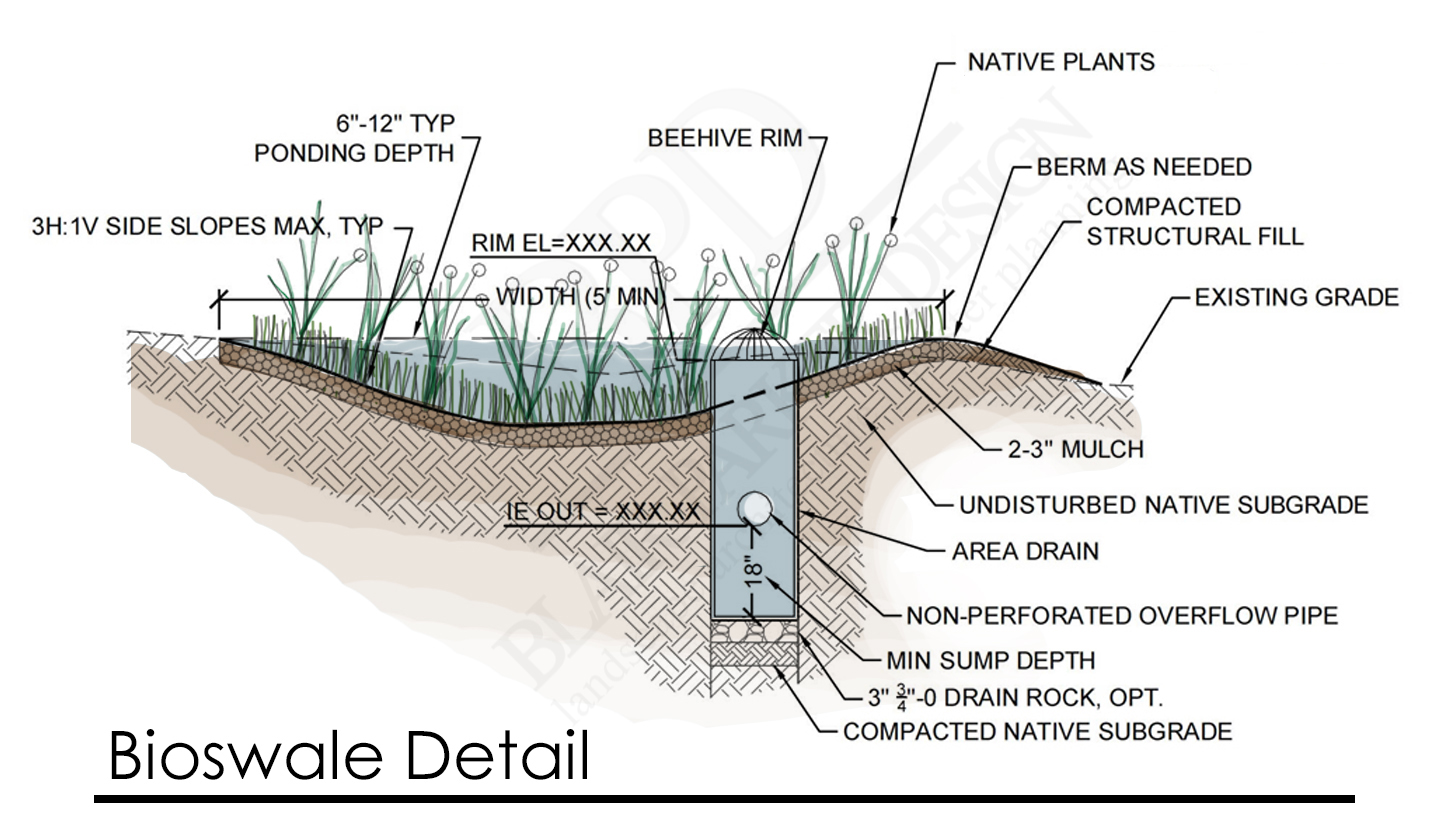

- Channel: Shallow trench with gentle gradient (1–5%).
- Soil Media: Layered soil or engineered filter media.
- Vegetation: Grasses, sedges, and native plants tolerant to occasional flooding.
- Overflow System: Connects to conventional storm drains during heavy rain.
Bio-swales can be integrated into walkways, medians, courtyards, and campus landscapes, adding both aesthetic and functional value.
Ideal Applications Across Built Typologies
Bio-swales can be used in various built environments, adapting to scale, context, and design intent:
| Typology | Application Example | Benefit |
| Campus | Courtyards, pedestrian paths, parking lots | Reduce ponding, enhance green campus aesthetic |
| Urban Streets / Plazas | Road medians, sidewalks | Filter runoff, prevent urban flooding |
| Residential Complexes | Open lawns, entry plazas | Recharge groundwater, integrate play and garden areas |
| Commercial / Industrial | Carparks, stormwater outfalls | Pollution control, reduce runoff volume |
| Institutional / Hospitals | Landscaped buffer zones | Prevent waterlogging, create therapeutic green spaces |
Design Tip: Design bio-swales as visible landscape features rather than hidden infrastructure. This promotes awareness and enhances the built environment.
Image Source:
Real-Life Case Studies

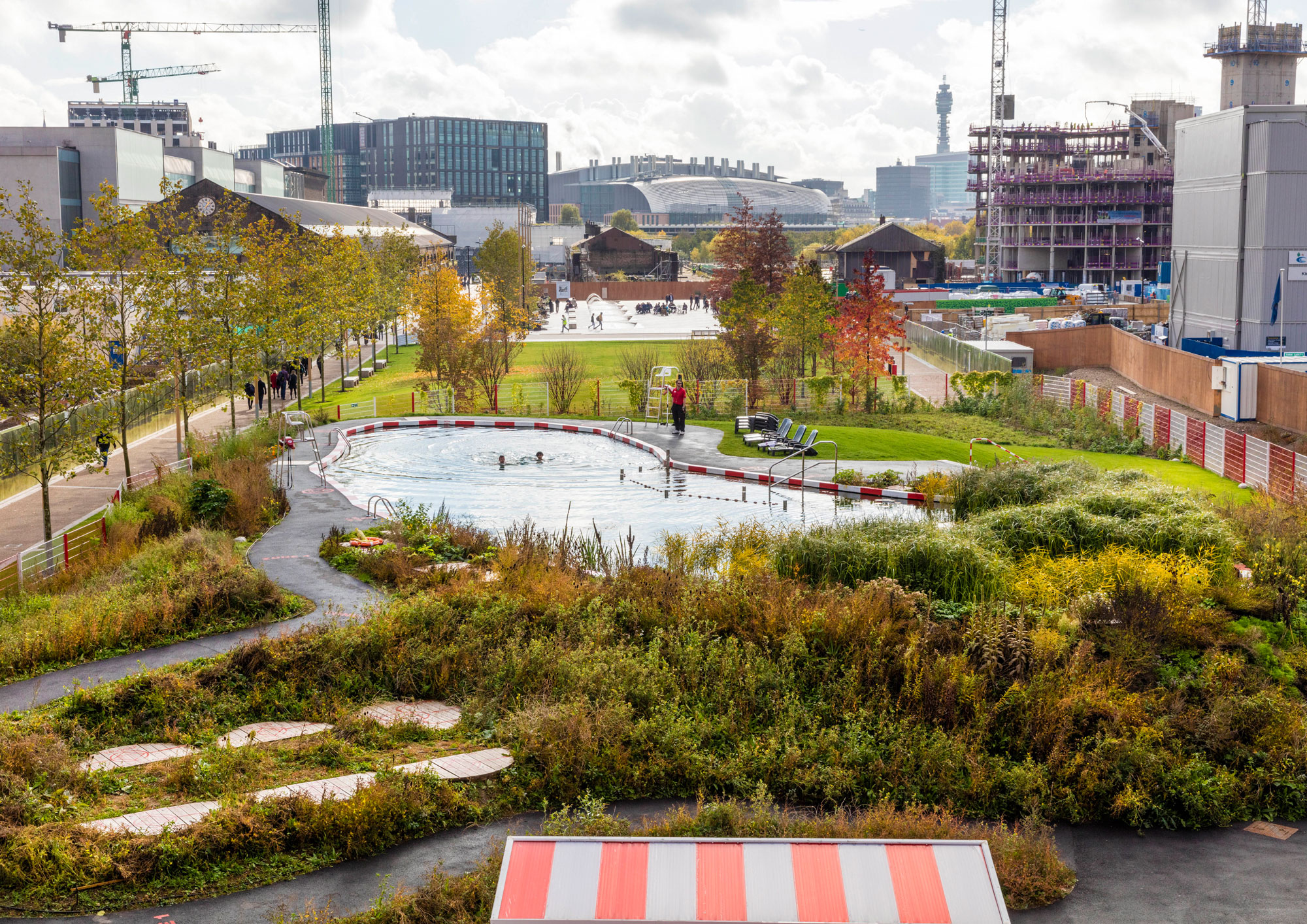

1: King’s Cross, London, UK
Image Source:
- Scale: Urban redevelopment site.
- Design: Shallow vegetated swales alongside pedestrian pathways.
- Outcome: Controlled runoff from impervious surfaces; improved urban greenery.

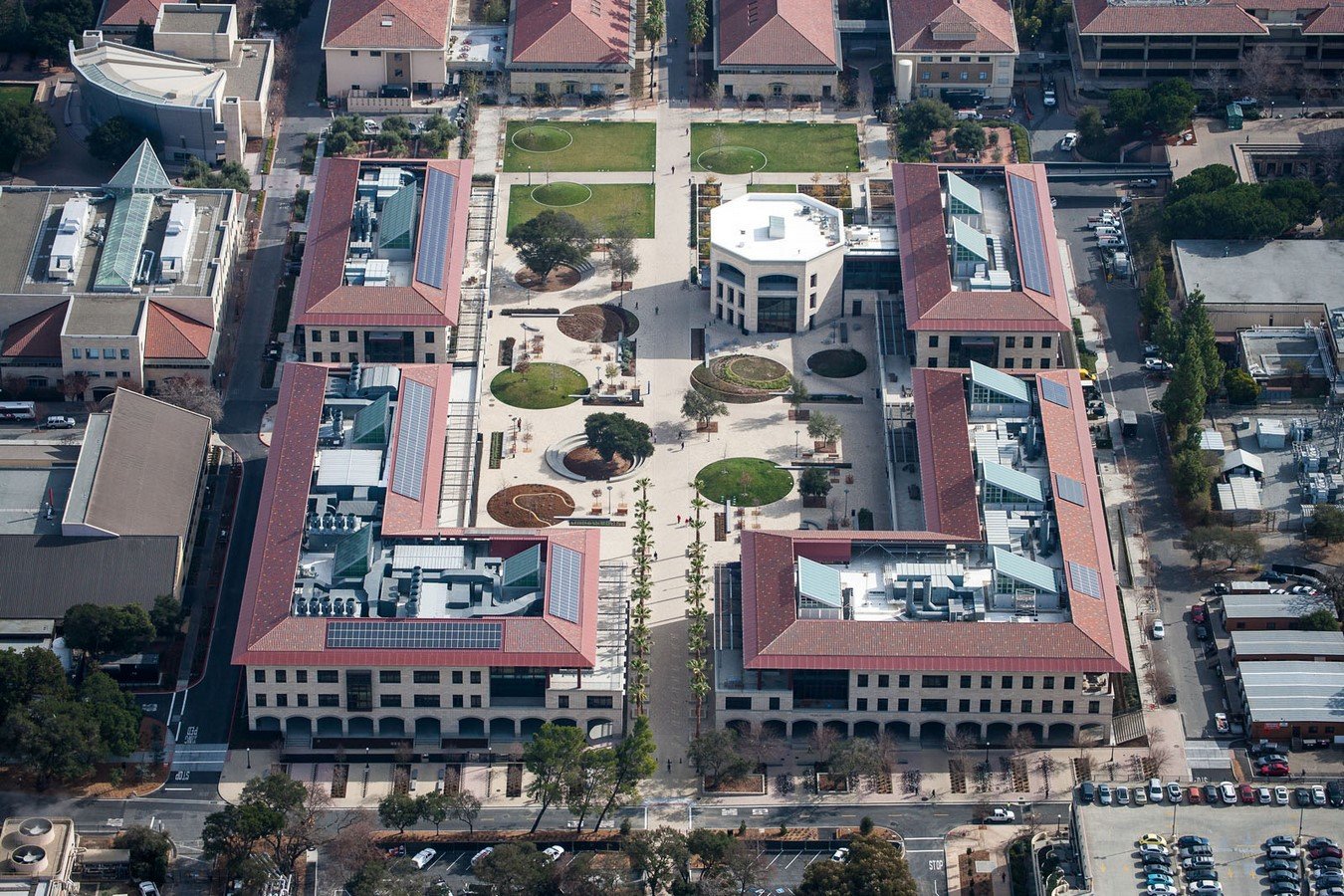

2: Stanford University Campus, California, USA
Image Source:
- Scale: University campus.
- Design: Campus stormwater management plan using vegetated channels and retention ponds.
- Outcome: Reduced surface runoff and enhanced campus ecology; aesthetic integration with courtyards.

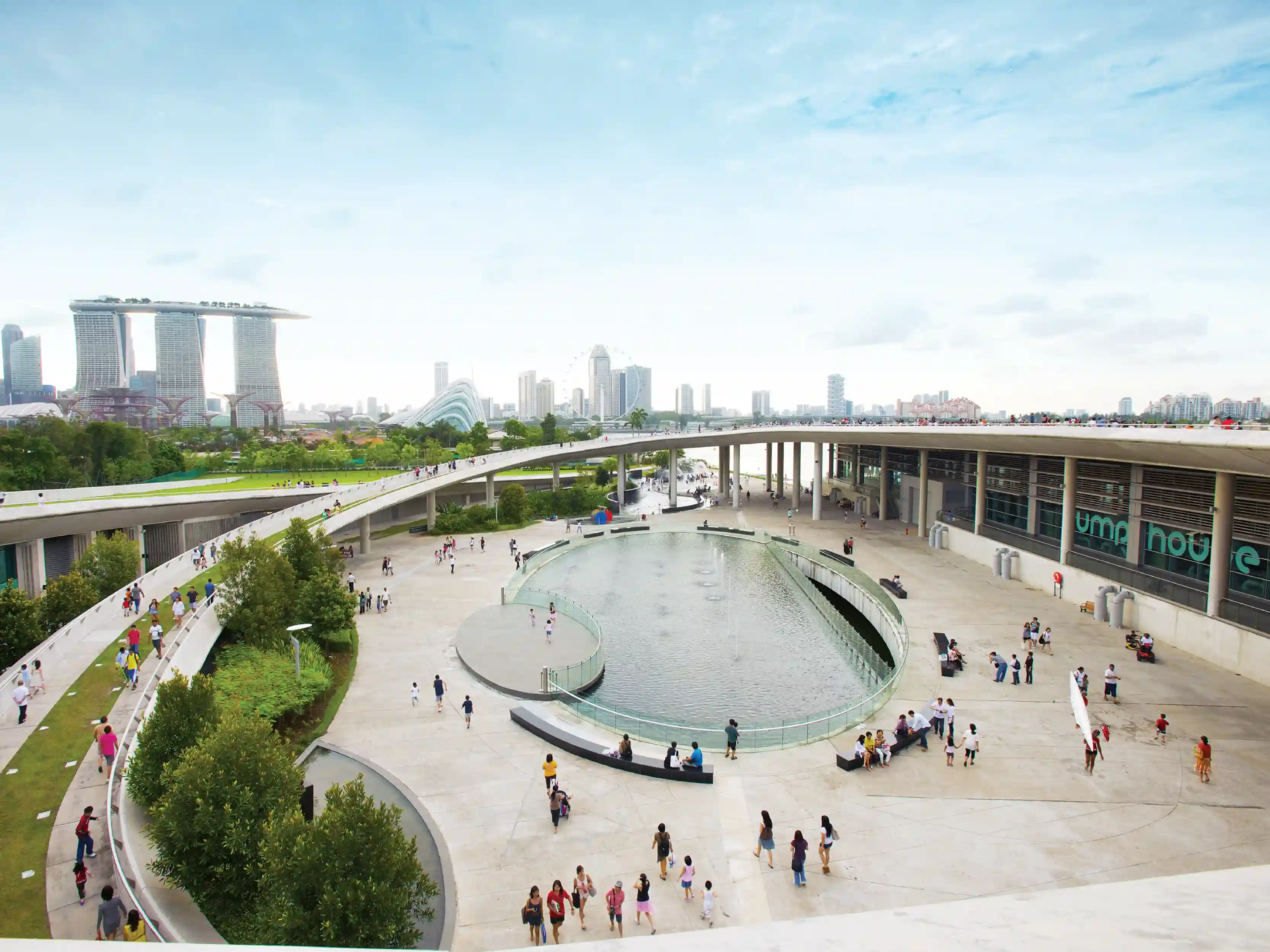

3: Marina Barrage, Singapore
Image Source:
- Scale: Waterfront urban park.
- Design: Series of vegetated channels filtering runoff before reaching the reservoir.
- Outcome: Flood mitigation in high-intensity rain events; improved water quality in urban basin.

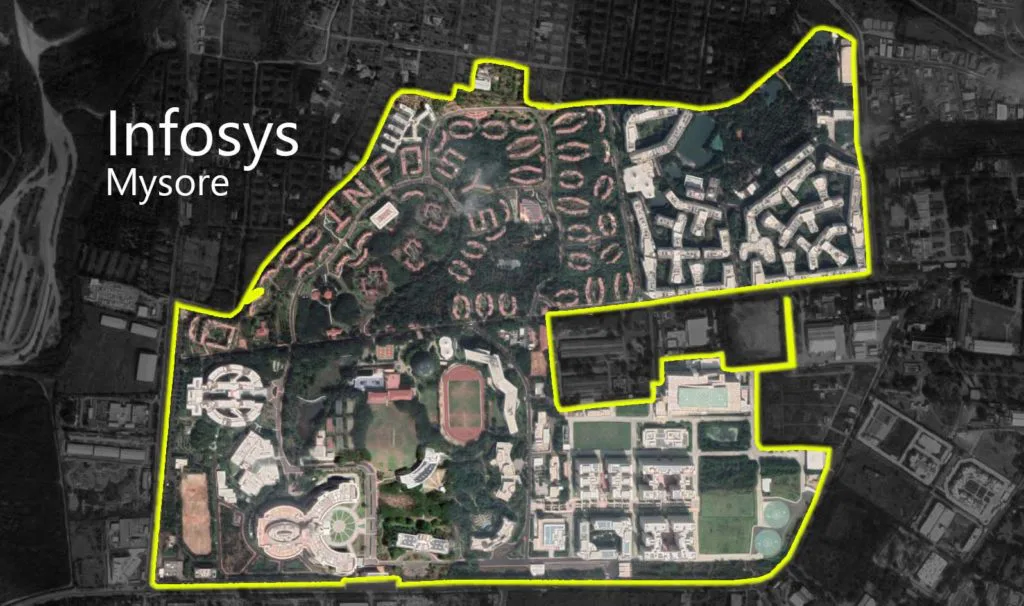

4: Infosys Mysuru Campus, India
Image Source:
- Scale: Large IT campus.
- Design: Bio-swales integrated in landscape medians and parking areas.
- Outcome: Enhanced recharge of stormwater; sustainable campus ecosystem; reduced load on municipal drainage.
The buildings we design don’t just occupy space, they interact with water, earth, and ecology. Bio-swales are a visible proof of that interaction.

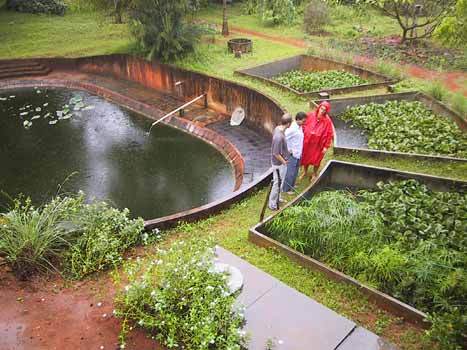

5: Auroville, Tamil Nadu, India
Image Source:
- Scale: Experimental eco-community.
- Design: Bio-swales combined with percolation ponds for natural filtration.
- Outcome: Demonstrates zero-energy, natural stormwater management; integrates with green landscape corridors.
Benefits for Architects and Engineers
- Sustainable Drainage: Reduces dependency on conventional stormwater drains.
- Landscape Integration: Enhances aesthetics while serving a functional purpose.
- Urban Cooling & Biodiversity: Green channels lower surface temperatures and provide habitat.
- Educational Potential: Works as a live demonstration of sustainable design for students or campus users.
Design Guidelines for Success
- Slope: 1–5% gradient to allow slow water flow.
- Cross-section: 0.3–1 m depth depending on catchment area.
- Soil & Filtration: Use engineered soil mixes for fine sediment and pollutant filtration.
- Vegetation: Native plants adapted to wet-dry cycles.
- Maintenance: Annual cleaning of debris and sediment; replanting as needed.
Design Tip: Connect bioswales with rainwater-harvesting systems and STPs for a holistic water-management approach — perfect for campus-scale or mixed-use projects.
Bio-swales show that infrastructure doesn’t have to be invisible — it can be beautiful, educational, and regenerative.
From urban streets to campuses, residential complexes to eco-communities, bio-swales are a simple, effective, and visually compelling solution for sustainable stormwater management. Understanding bio-swales is no longer optional for AECO professionals. Keep an eye out for Kaarwan’s upcoming MEP Design Course, where more such informative subjects related to intelligent water solutions will be discussed with expert mentors.
FAQs
Q1: Can bio-swales be used in small residential sites?
Yes — even narrow strips along driveways or gardens can filter and slow runoff.
Q2: How do bio-swales differ from regular drainage channels?
They use vegetation and soil filtration to treat water naturally, rather than just conveying it away.
Q3: Are bio-swales compatible with paved urban areas?
Yes — combined with permeable pavements, median channels, or landscaped pockets.
