If you’ve ever had the chance to sit with the entire concept of Building Information Modelling or BIM, you’ve probably heard multiple conflicting ideas and explanations. Some sources limit themselves to 3D and 4D, while multiple others also define dimensions up to 10D. This might sound confusing to many professionals, and that’s completely understandable. But, this is no more about the bifurcations that can occur in BIM; it’s how far it can go, and this blog will help you explore every bit of it.

This guide will break down BIM dimensions in simpler terms to help you understand how to utilise them in real projects and which ones matter, depending on your workflow.

But, before we dive deeper, here’s a quick preview:

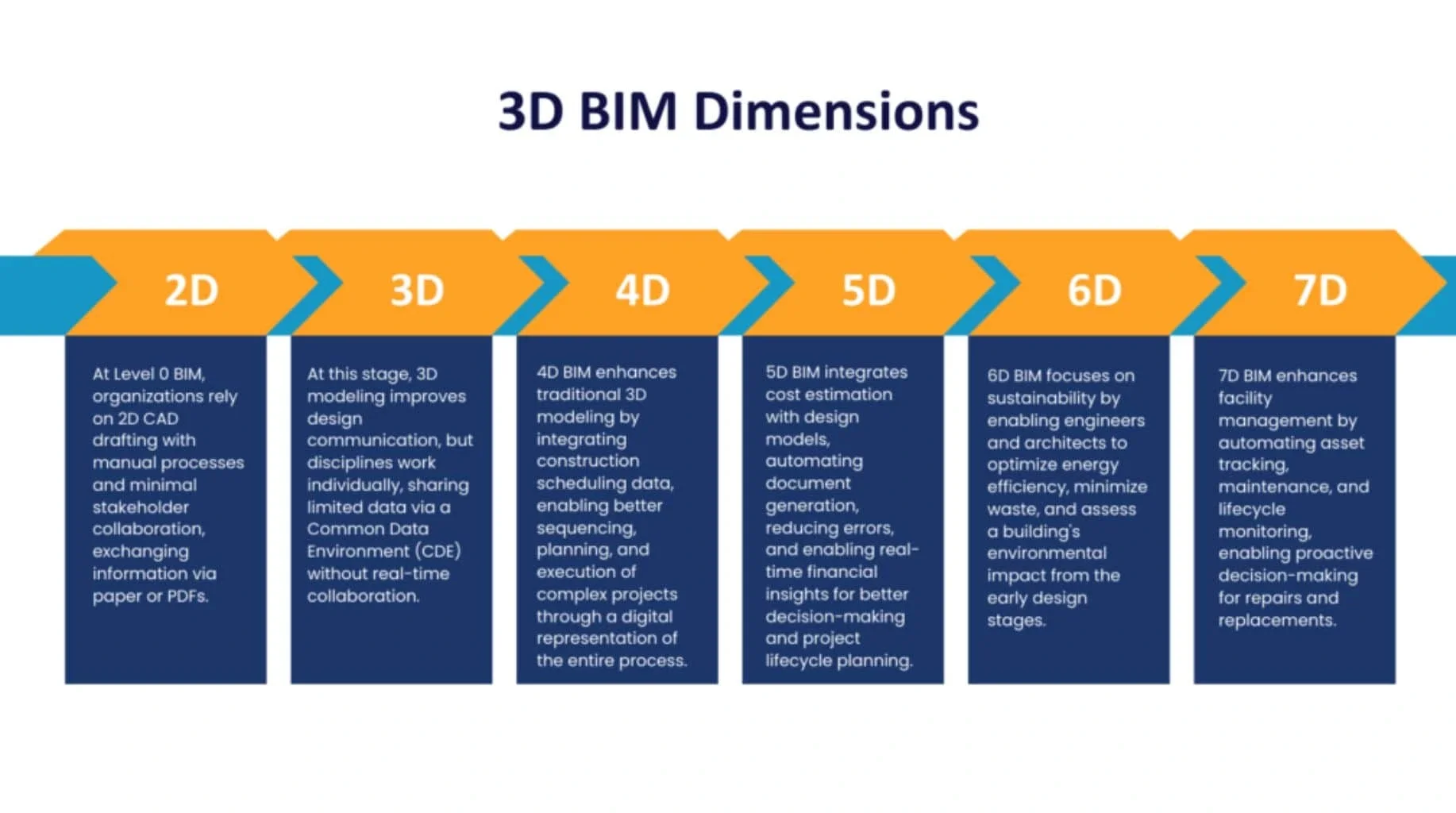

2D BIM — The Pre-BIM Baseline

To think of it, 2D BIM isn’t really the contemporary sense of BIM that we refer to these days. It’s more like what AutoCAD did for us while creating traditional drawings like floor plans, elevations, and sections. These are 2D (flat) representations without adding much data or intelligence to design development.

But you must think of this as a starting point before BIM evolved in its true form. If you’ve worked with CAD, you may have started from this dimension.

3D BIM — Geometry and Spatial Model

3D BIM is where the true journey of BIM begins. It brings a model built along the three axes, x,y, and z, to the table that allows teams to visualise a project before the project even begins.

This also implies working in a cloud environment and collaborating with stakeholders in a single coordinated model. This also makes detecting any kind of clashes possible beforehand. For example, you can identify whether a duct is in the way of a beam before it even gets to the construction phase.

In India, 3D BIM is being widely used in metro rail projects and large commercial developments. Tools like Revit have taken over this place, and professionals equipped with these skills are referred to as BIM Modellers.

For example, an operating theatre in a hospital utilises multiple services like the HVAC, electrical, and medical gas systems that run hand in hand. With 3D BIM, these systems are coordinated early, which leads to less rework during the construction phase.

Beyond visualisation, the real value lies in coordination. Architects, structural engineers and MEP teams can collaborate on the same model, reducing errors and delays.

4D BIM — Time and Construction Scheduling

4D BIM brings in the dimension of time, connecting the 3D model with construction schedules, allowing teams to simulate and observe project development over time. This is very useful, especially for phasing and sequencing. For example, you can visualise the parts of a building that will be completed each month and notice potential delays before time.

Navisworks is mostly used to create such simulations, and in infrastructure across India, 4D BIM helps stakeholders keep track of progress and communicate timelines clearly.

For example, in a metro rail project, different stations and track sections are built in phases and with 4D BIM, teams can simulate construction sequences and avoid any sort of clashes between contractors working on the same project to avoid any setbacks and improve efficiency. Professionals working in this area often take on roles like BIM Coordinator.

However, the biggest advantage here is the predictability. Instead of responding to delays, teams can project them and act accordingly.

5D BIM — Cost and Quantity Takeoffs

Every element in the 3D model is connected to pricing, information that enables automatic quantity takeoffs and cost estimation. 5D BIM brings the cost data into the model.

The moment you incorporate a design change, the costs get updated instantly. This then reduces manual calculation errors and fuels decision-making. For example, in a commercial office project, a developer might consider switching facade materials. With 5D BIM, the cost difference is calculated immediately, and this helps them arrive at a decision faster.

Tools like Revit, when combined with CostX, are commonly used. In India, this dimension is being largely adopted by commercial and residential developments. Roles here also include Quantity Surveyors and Project Managers who depend on accurate cost forecasting. However, the key benefit is financial control and instead of figuring out static estimates, you get dynamic, real-time observations.

6D BIM — Sustainability and Energy

6D BIM keeps sustainability in check. It uses the model to analyse energy performance, carbon footprint and environmental impact. This also includes simulations for daylight, ventilation and energy consumption. Tools like Autodesk Insight and IES VE help initiate these analyses. For example, in a hospital building that operates 24/7, energy consumption is an important factor to consider. However, with 6D BIM, designers can optimise window placement, insulation, and HVAC systems to reduce long-term energy use.

With increasing emphasis on green building certifications like LEED and GRIHA, this dimension is growing increasingly in India. Professionals working in this space are often referred to as Sustainability Consultants.

The goal here is long-term performance, not just the initial construction.

7D BIM — Facility Management and Lifecycle

This is where BIM dimensions go beyond construction and move into operations. 7D BIM focuses on how a building is managed after completion.

What data does 7D BIM track?

7D BIM entails detailed asset information like equipment specifications, warranty details,  operation manuals, and maintenance schedules.

For example, in a large hospital, this becomes crucial. Every system, right from HVAC units to elevators and medical equipment, is tethered to the model. Facility teams can click on an asset and access its service history or maintenance systems on the go. So, instead of relying on paper documents or individual files, everything is centralised and in one place.

Who uses 7D BIM and when?

7D BIM is mainly used after project handovers by the facility managers and operations teams, which can be utilised even once the project construction is done. For example, in an airport project, thousands of assets need regular monitoring. With 7D BIM, maintenance becomes proactive rather than reactive, and teams are well aware when a system needs servicing, reducing downtime and improving efficiency. This is where tools like BIM 360 and COBie help manage and optimise this data.

Careers in this space majorly include Facility Managers and Asset Management professionals. This is also where BIM delivers long-term value. While earlier dimensions are utilised in design and construction, 7D ensures the aftermath, ensuring the building’s long-term performance over the years.

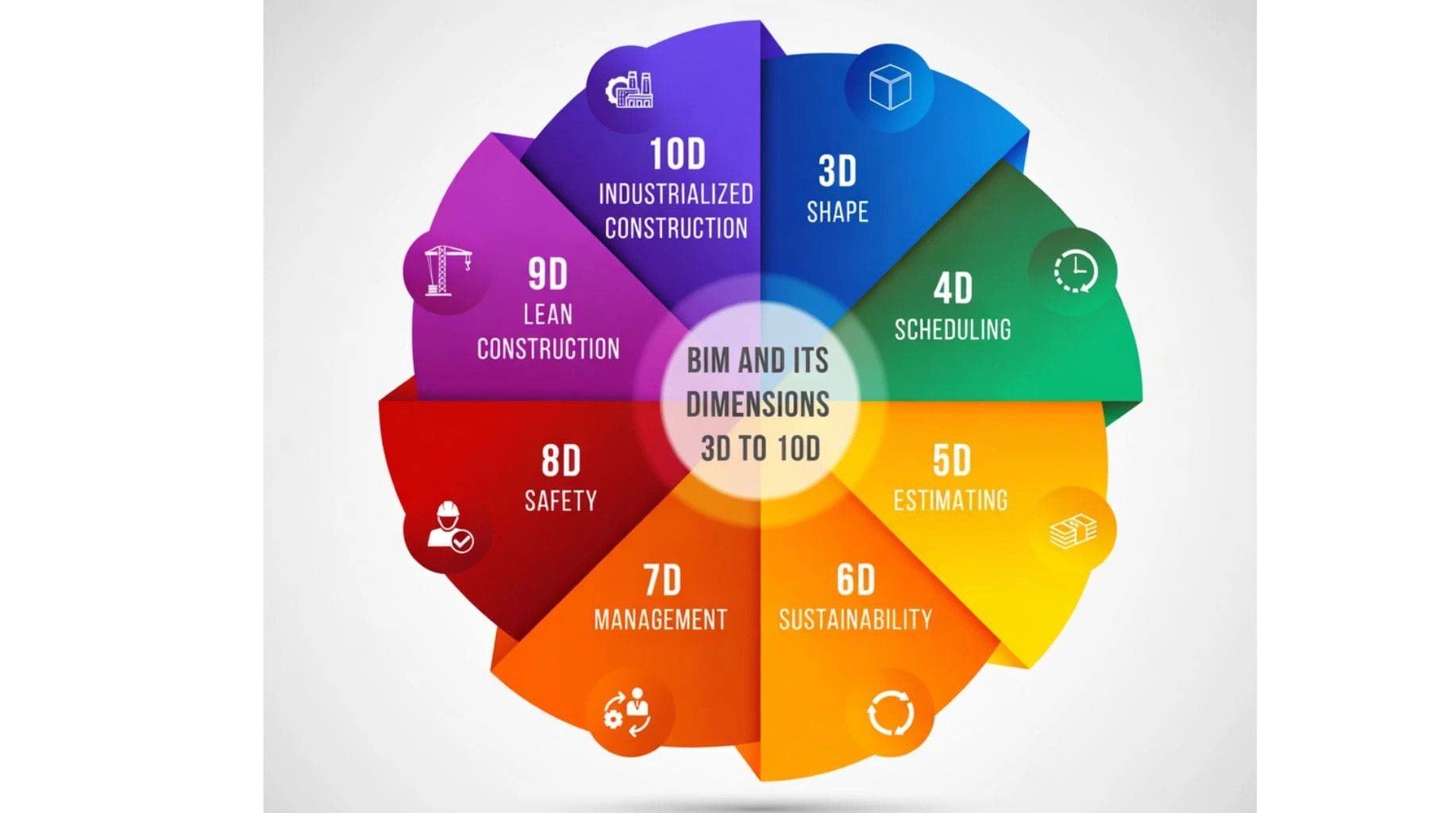

Beyond 7D: Emerging BIM Dimensions

Beyond 7D, BIM dimensions are still developing, but are pointing towards the future of construction.

8D BIM focuses on safety and risk management. For example, teams can simulate hazard zones on a construction site and use VR walkthroughs to equip workers with apt skills before they enter high-risk areas.

9D BIM is linked to lean construction. It helps minimise the material waste and optimise workflows. In large-scale construction projects, they can be utilised to improve efficiency significantly.

10D BIM relates to industrialised construction, and in projects like modular housing or prefabrication projects, building components are manufactured off-site and assembled later on the site. BIM also helps in managing these processes with precision.

While 3D-7D BIM are quite standard in the industry, 8D-10D BIM show where the industry is heading and what is yet to come.

BIM Dimensions vs BIM Levels — Not the Same Thing

A common misconception is also when professionals get all mixed up about BIM dimensions and BIM levels. They are not quite the same.

In simpler terminology, dimensions highlight what the model entails, while levels describe how teams collaborate with it.

Which BIM Dimensions Does Your Project Actually Need?

Not all projects need all the BIM dimensions, and this is where a lot of teams can overcomplicate things. For a small residential project, 3D BIM is more than enough to visualise the design, and 4D BIM can help plan the upcoming construction phases. Adding 5D may be useful if budget tracking is a priority task in your list, but going beyond that is not needed.

In a commercial office building, BIM dimensions typically extend to 5D. Developers rely a lot on cost-linked models when it comes to quick decision-making, especially while balancing design and budget both.

However, for complex projects like airports, hospitals or metro systems, BIM dimensions up to 7D become a non-negotiable. These projects involve long-term operations where maintenance data and asset tracking can significantly impact performance. The key here is to use BIM dimensions based on project needs, not trends.

FAQs

1. Do BIM dimensions apply to all types of construction projects?

No. Smaller projects may only need 3D or 4D BIM, while complex ones like hospitals or airports may go up to 7D.

2. What is the difference between BIM dimensions and BIM levels?

Dimensions define what data is added to a model; levels define how teams collaborate with it.

3. Which BIM dimension is most commonly used in India right now?

3D and 4D BIM are most widely adopted, especially in metro rail and large commercial projects.

4. Can a project skip certain BIM dimensions?

Yes. You choose dimensions based on project needs — there's no mandatory sequence to follow.

5. What careers are associated with different BIM dimensions?

BIM Modellers (3D), BIM Coordinators (4D), Quantity Surveyors (5D), Sustainability Consultants (6D), and Facility Managers (7D).

6. Is 8D, 9D, or 10D BIM being used on real projects yet?

They're still emerging and not fully standardised, but early adoption is happening in safety simulation, modular construction, and lean workflows.

7. What is the role of digital twins in higher BIM dimensions?

Digital twins are closely tied to 9D and 10D BIM, enabling real-time monitoring and industrialised construction management.

8. How does 5D BIM reduce project costs in practice?

Any design change automatically updates the cost estimate in the model, eliminating manual errors and speeding up decisions.

9. What green standards does 6D BIM support?

It supports certifications like LEED and GRIHA by simulating energy, daylight, and ventilation during the design phase.

10. How do I get started with BIM as a beginner?

Start with 3D BIM and tools like Revit, then gradually explore 4D and 5D as you grow more comfortable.
