Types of Elevators Explained:
Elevators have become a defining element in modern architectural design, not just as tools of vertical transport, but as integral components that influence circulation, space planning, accessibility, and mechanical coordination. With the rise of multi-story buildings, inclusive design, and spatial efficiency, understanding the types of elevators and their architectural impact is essential. This blog explores four key elevator types: hydraulic lift, traction lift, dumbwaiter, and platform lift—each with its own mechanism, structural needs, and design implications.
1. Hydraulic Lift:
Image Credits: Shivani Chougula @Kaarwan
A hydraulic lift operates using a piston that moves inside a cylinder, powered by hydraulic fluid pushed through a pump. These elevators are typically used in low- to mid-rise buildings (up to 5-6 floors) due to their limited speed and height range. Architecturally, hydraulic lifts require a pit and a machine room at the base, usually adjacent to the shaft. Because they don’t need an overhead machine room like traction lifts, they’re often chosen for retrofits or height-restricted buildings. They move slower than traction elevators but offer smooth, stable rides and can carry heavy loads. Commonly found in commercial complexes, small hotels, or residential buildings, they are cost-effective to install but may require more maintenance due to oil usage and heat generation. Designers must account for ground-level space for the hydraulic equipment, proper pit dimensions, and safety features such as oil buffers.

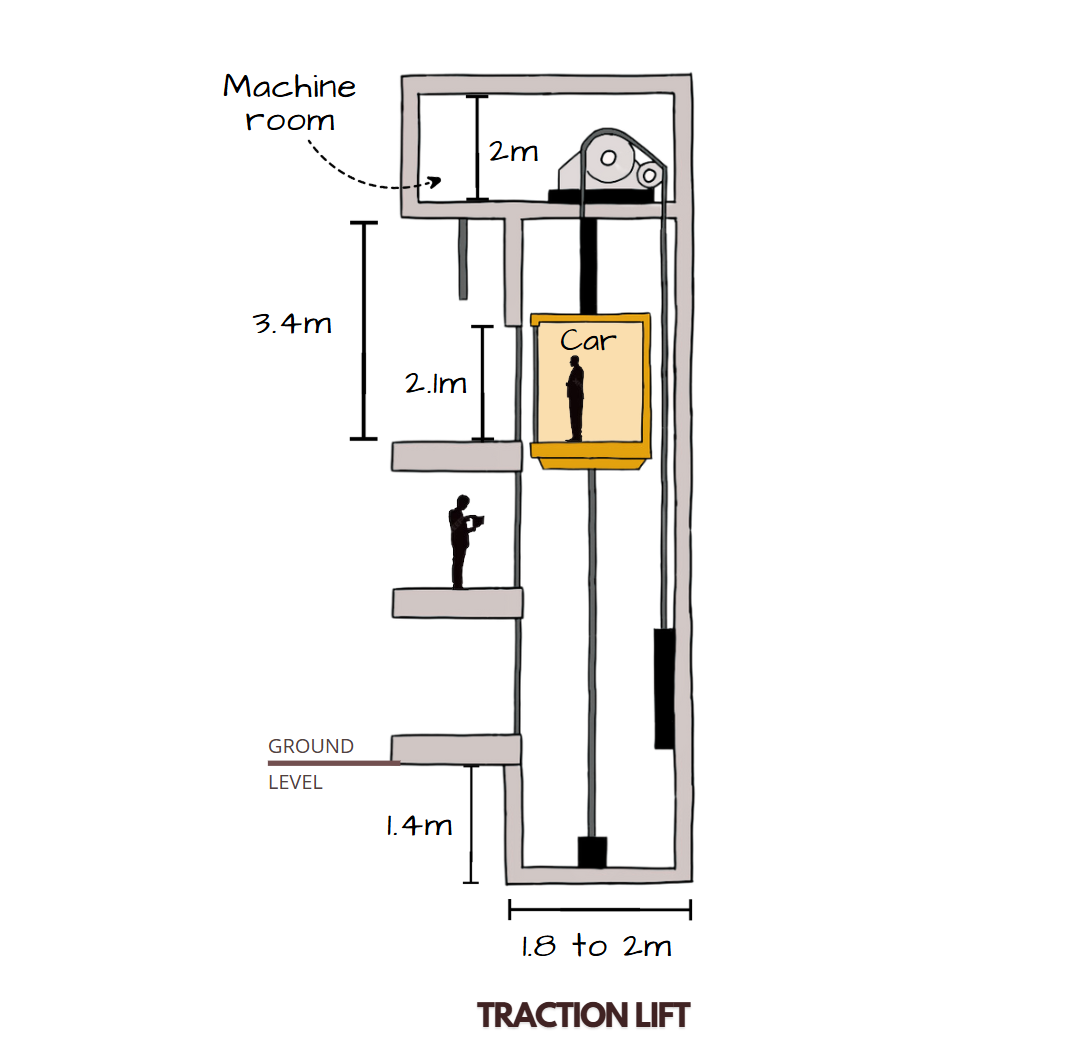

2. Traction Lift:
Image Credits: Shivani Chougula @Kaarwan
Traction lifts use steel ropes and counterweights, operating through an electric motor placed in a machine room (either above the shaft or in a machine-room-less variant). They are the most common type used in high-rise and mid-rise buildings thanks to their high speed, energy efficiency, and adaptability. Traction lifts can be geared or gearless—the latter being ideal for high-speed, high-rise applications. From an architectural standpoint, traction elevators may demand precise alignment for the shaft, a machine room overhead (unless it's MRL), and enough space for counterweight movement. They are suitable for office towers, hospitals, hotels, and residential towers. Traction lifts also allow for sleek cabin designs, smart display panels, and destination dispatch systems, making them ideal for buildings focused on performance and user experience. Architects must also consider shaft wall thickness, service access, and noise insulation due to motor placement.
3. Dumbwaiter Lift:
Image Credits: Shivani Chougula @Kaarwan
Dumbwaiters are small-scale freight elevators designed to carry goods rather than people, typically trays of food, books, files, or other small items. These lifts are compact and usually operate between kitchens and dining areas, libraries, or storage rooms. They consist of a small vertical shaft, typically powered by a simple traction or hydraulic system, and often don’t require a full-height shaft or machine room. Architecturally, dumbwaiters offer convenience in restaurants, hotels, offices, and even residences, particularly in multilevel homes with basement kitchens. They require minimal space and offer flexibility in placing load points on each floor. While they don’t follow the same safety codes as full-sized elevators, they still require fire-rated shafts, landing doors, and compact equipment rooms. For architects, the challenge is discreet integration within service cores or cabinetry, without interrupting the building’s spatial flow.

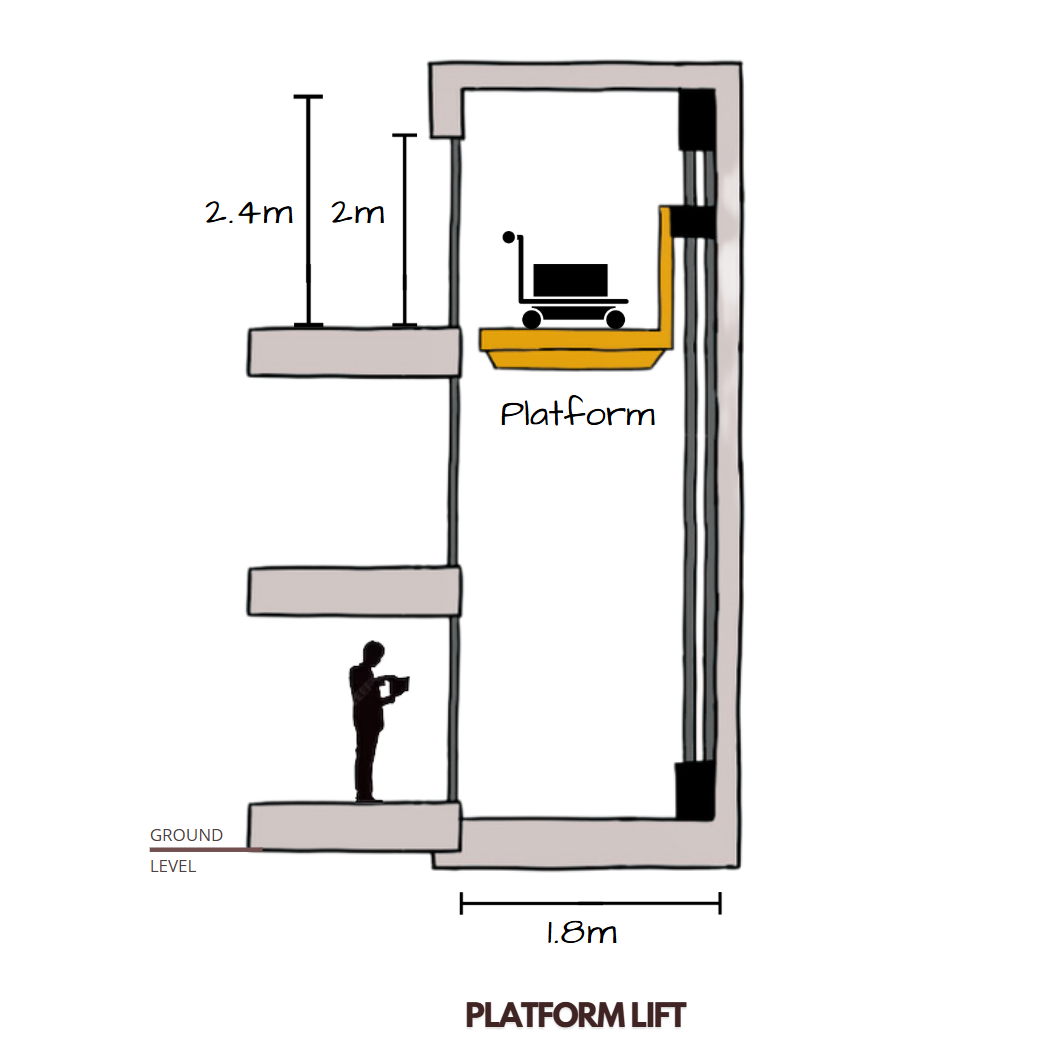

4. Platform Lift:
Image Credits: Shivani Chougula @Kaarwan
An industrial platform lift is a heavy-duty lift designed for transporting goods, machinery, and equipment—not people—between floors in factories, warehouses, storage facilities, and workshops. These lifts are built for strength and durability, often with open platforms, high load capacities (sometimes up to several tonnes), and guard rails for safety. Powered by hydraulic, screw-driven, or chain mechanisms, they can be installed indoors or outdoors and typically require a reinforced pit or supporting structure, depending on the model. From an architectural perspective, platform lifts are integral to the logistics and efficiency of an industrial space. Their shaft enclosures can be steel or RCC, and the machine room (if needed) is usually located nearby for easy maintenance. Architects must plan for adequate headroom, approach ramps (if required), barrier-free access, and clear loading zones
Conclusion:
Elevators are more than vertical transport devices—they are critical tools in shaping accessibility, efficiency, and spatial experience. Whether it’s the robust hydraulic lift for low-rise structures, the high-speed traction lift for skyscrapers, the compact dumbwaiter for efficient service, or the inclusive platform lift, each type serves a distinct architectural purpose. Choosing the right elevator begins with understanding its mechanics, spatial requirements, user needs, and long-term efficiency. As buildings become more adaptive and user-centric, architects must consider elevators not as afterthoughts, but as design elements that move people, both literally and experientially.
