3D printing has become an essential tool for architecture students and professionals, offering the ability to create tangible models quickly and efficiently. However, preparing a Rhino file for 3D printing can be tricky if you're unfamiliar with the right workflow. In this guide, I’ll walk you through how to export Rhino files for 3D printing effectively, ensuring your designs turn out exactly as planned.

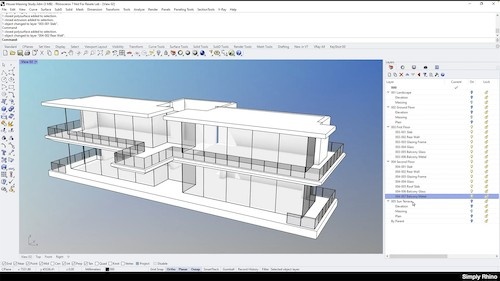

Image Credit: boxx,com
Why Use Rhino for 3D Printing?
Rhino is a powerful tool for architectural modelling due to its flexibility in handling complex geometries. Whether you're working on intricate facades, organic forms, or parametric structures, Rhino architecture makes it possible to translate digital designs into real-world models.
Before diving into the steps, it's crucial to ensure that your model is watertight, meaning it has no gaps or inconsistencies that could cause errors in the printing process.
Step 1: Prepare Your Model for 3D Printing
Before exporting, it's important to clean up your model and make sure it's optimized for printing.
1.1 Check for Naked Edges
Naked edges refer to gaps in your geometry that could prevent successful 3D printing. Use the following command: _ShowEdges
This will highlight any problematic areas in pink. If you spot any gaps, use: _Join, _Cap, _FillMeshHoles to fix them.
1.2 Convert Surfaces to a Solid
For 3D printing, your Rhino model should be a closed polysurface or solid. Use _ConvertToSolid to ensure that your model is print-ready.
1.3 Scale Your Model Correctly
Set the correct units and scale before exporting. Most 3D printers work in millimeters, so I recommend checking and converting if needed: _Units
Choose Millimeters and scale your model accordingly.
Step 2: Optimize Your Mesh for 3D Printing
Since 3D printers work with meshes, your Rhino model needs to be converted to a mesh format.
2.1 Use the Mesh Command
In Rhino, type: _Mesh
This will create a polygonal representation of your model. Rhino provides options like Jagged & Faster or Smooth & Slower, but I recommend using Custom Settings for better control.
2.2 Adjust Mesh Settings
For best results, tweak these settings:
- Max Angle: 15 degrees
- Max Aspect Ratio: 6
- Minimum Edge Length: 0.01 mm
- Weld: Checked
Once satisfied, hit Enter to generate the mesh.
Step 3: Export Your Rhino File for 3D Printing
Now that your model is properly meshed and scaled, it’s time to export it to a 3D printable format.
3.1 Choose the Right File Format
Most 3D printers accept STL files, but some also support OBJ or 3MF. I recommend STL for its wide compatibility.
To export: _Export
Choose STL and adjust the settings:
- Binary (Smaller file size)
- High Resolution (For detailed prints)
- Export as ASCII only if required
Click OK, and your file is ready!

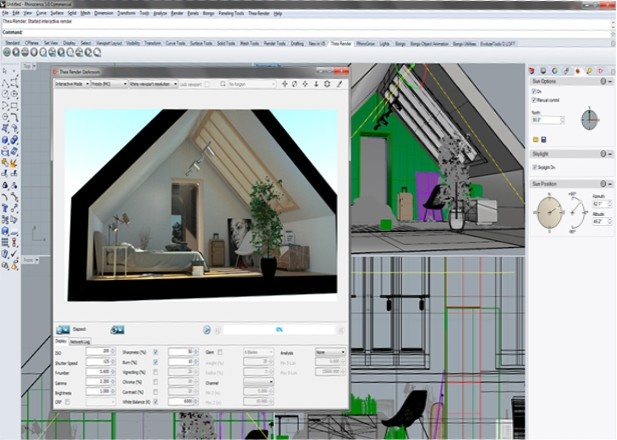

Image Credit: Rhino3d.co.uk
Step 4: Validate and Repair the STL File
Before sending your file to print, it’s wise to check for errors.
4.1 Use Rhino’s Built-in Analysis
Rhino Software has a Check Mesh tool that identifies potential issues. Run _CheckMesh. If errors appear, use: _RebuildMesh, _MeshRepair for fixes.
4.2 Use External Validation Tools
I also recommend using Netfabb (by Autodesk) or Microsoft 3D Builder to double-check your STL file.
Tiptoed around Computational Design? Try our budget-friendly masterclasses and get a free clarity session.
Take your designing skills up a notch and start designing with Computational Design now!
Step 5: Slice and Print
Once your file is verified, it’s time to prepare it for printing.
5.1 Import the File into a Slicer
A slicer software translates your 3D model into G-code for the printer. Some popular options include:
- Cura
- PrusaSlicer
- Simplify3D
5.2 Adjust Print Settings
Key settings include:
- Layer Height: 0.1–0.2 mm for detailed prints
- Infill Percentage: 10–20% for models, 50%+ for functional parts
- Supports: Enable for overhangs
5.3 Start Printing
Save the G-code file and transfer it to your printer. Watch the first few layers to ensure a smooth print.
Conclusion
Mastering how to export Rhino files for 3D printing is a valuable skill for any architecture student or professional. With a clean model, optimised mesh, and the right export settings, you can confidently bring your Rhino designs to life.
If you’re looking to deepen your skills in Rhino architecture and get certified, consider enrolling in an advanced Rhino certification course to sharpen your expertise and boost your career!
Visit our website Kaarwan for more!
FAQs
1. What is the best file format for 3D printing from Rhino?
The best format is STL, though some printers also support OBJ and 3MF.
2. Why is my Rhino model not watertight?
Check for naked edges and use Join, Cap, and FillMeshHoles to fix any gaps.
3. How do I ensure a smooth 3D print from Rhino?
Use Custom Mesh Settings to refine resolution and validate the STL file before printing.
4. Can I 3D print directly from Rhino?
No, but you can export your file and use a slicer to prepare it for 3D printing.
5. What’s the best way to learn Rhino for architecture?
Taking an advanced Rhino certification course can help you master Rhino’s capabilities for architectural modeling and fabrication.
