Levelling in Civil Engineering: Types, Methods, Instruments & Calculations

Written ByPriyanka
Published dateApr 30
Read time13 min

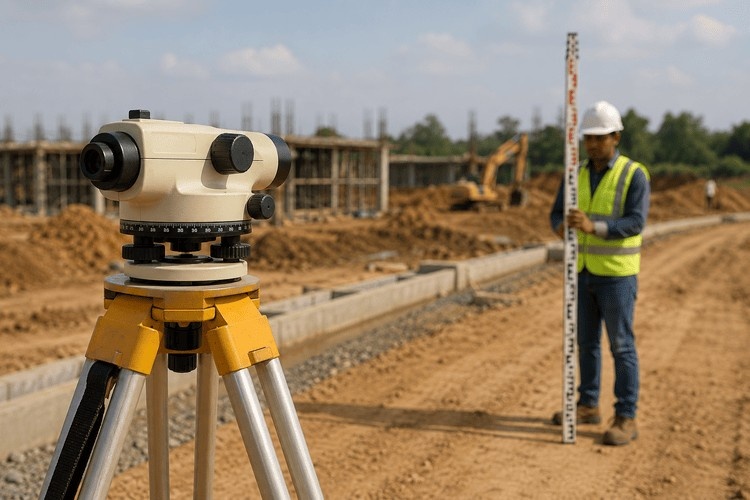

What is Levelling in Civil Engineering?

Levelling in civil engineering is the process of measuring and establishing the difference in elevation between two or more points on the Earth's surface. It provides the vertical control that every civil engineering project depends on, from the simplest building foundation to the most complex highway or dam.

To put it simply: before any structure is built, engineers need to know how high or low each part of the ground is relative to a fixed reference. That fixed reference is called a datum or benchmark, often referenced to mean sea level. By measuring heights relative to this datum, civil engineers can design structures at correct elevations, ensure proper drainage gradients, calculate earthwork volumes, and set out construction levels precisely on site.

Levelling in surveying is distinct from horizontal measurement; it deals exclusively with vertical distances. It is a fundamental operation that is carried out at every stage of a civil engineering project: during initial site investigation, throughout the design phase, during construction to guide setting out, and after completion for as-built documentation.

  Read More :   Surveying in civil enginneering

Objectives and Importance of Levelling

Understanding why levelling matters in civil engineering helps explain why it is the first survey operation performed on any project and why accuracy in levelling is treated as non-negotiable.

To determine the relative elevation of points:  Every construction decision that involves height, foundation depth, floor level, road gradient, drainage slope, and dam crest depends on knowing the exact elevation of ground points relative to each other and to a fixed datum.

To create a reference framework for construction:  By establishing benchmarks at known elevations around and on the site, the levelling survey provides the vertical reference that all construction setting out is based on. Every column base, every slab, every kerb line is set to a level derived from this framework.

To support design and planning: Elevation data from levelling surveys feeds into the design of road profiles, drainage gradients, irrigation channel alignments, and building floor levels. Without accurate levelling data, these designs cannot be correctly prepared.

To calculate earthwork volumes: Cut and fill calculations, determining how much soil must be excavated or how much fill material must be placed to bring the site to the design level, are based entirely on levelling data. Inaccurate levelling leads directly to inaccurate earthwork estimates and cost overruns.

To prepare contour maps:  Elevation data from grid levelling is used to draw contour lines that represent the shape and slope of the terrain on topographic maps. These maps are essential for drainage design, site layout planning, and environmental assessment.

To support infrastructure maintenance:  Regular levelling surveys of roads, bridges, embankments, and building floors track settlement and deformation over time, enabling timely maintenance and preventing structural failures.

Read More : Compass Surveying

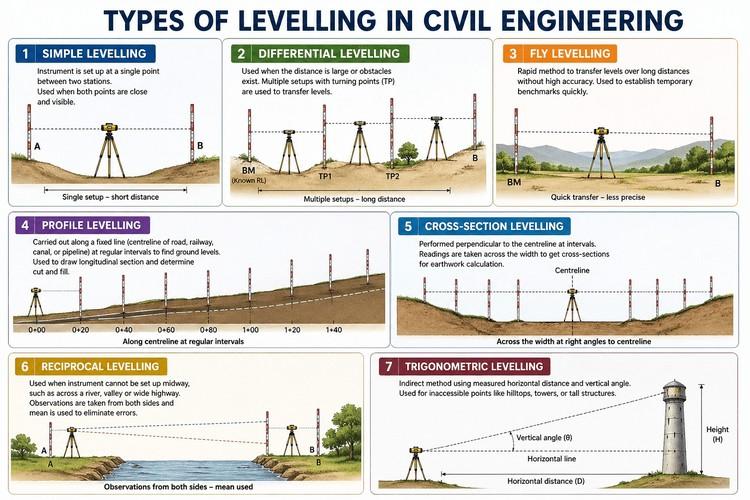

Types of Levelling in Civil Engineering

There are several types of levelling in civil engineering, each suited to different project requirements, distances, and site conditions.

Simple Levelling is the most basic type; the levelling instrument is set up at a single point between two stations, and readings are taken on a staff placed at each. It is used when both points are close to each other and visible from a single instrument position. It is the starting point for understanding how levelling works in practice.

Differential Levelling is used when the distance between two points is too great for a single instrument setup or when there are obstacles between them. Multiple instrument setups are used, with each setup measuring the difference in height between an intermediate turning point and the next. This is the most widely used type of levelling in civil engineering for transferring elevations across long distances, for road projects, canal alignments, and pipeline surveys.

Fly Levelling is a rapid method used to transfer elevations over long distances without high accuracy requirements. It is used to establish temporary benchmarks quickly during the early stages of a project or to check the accuracy of previous levelling work. It is a faster but less precise form of differential levelling.

Profile Levelling is carried out along a fixed line, the centreline of a road, railway, canal, or pipeline, to establish the ground level at regular intervals. The resulting data is used to draw the longitudinal section of the route, which shows how the ground profile relates to the proposed design gradient. This is essential for determining cut and fill requirements along the alignment.

Cross-Section Levelling is performed perpendicular to the centreline of a road or canal alignment, taking elevation readings at intervals across the width of the route. It provides the data needed to calculate the volume of earthwork required for each section of the alignment and to draw typical cross-section drawings.

Reciprocal Levelling is used when the levelling instrument cannot be set up midway between two points, for example, when levelling across a river, a valley, or a wide highway. Observations are taken from both banks or from both sides of the obstacle, and the mean of the two results is used to minimise errors caused by curvature, refraction, and instrumental faults.

Trigonometric Levelling is an indirect method where elevations are determined from measured horizontal distances and vertical angles rather than direct staff readings. It is used for measuring the heights of inaccessible points, tops of towers, mountain peaks, or steep hillsides, where direct levelling is physically impractical.

Build a strong career in civil engineering with Kaarwan’s expert-led courses. Explore specializations, gain practical skills, and get the right guidance to take a clear first step toward your future in engineering.

Levelling Instruments in Civil Engineering

Choosing the right levelling instrument in civil engineering depends on the required accuracy, the nature of the work, and the site conditions. Here is a clear comparison of the main levelling instruments used in professional civil engineering practice.

Infographic showing types of levelling in civil engineering with diagrams of simple, differential, fly, profile, cross-section, reciprocal, and trigonometric levelling methods using instruments and staff readings across different terrains.
InstrumentTypeBest Used For
Dumpy LevelOptical, fixed telescopeGeneral construction levelling, road and canal surveys, building layout
Auto Level (Automatic Level)Optical, self-compensatingMost civil engineering fieldwork , fast, easy, consistent accuracy
Tilting LevelOptical, manually tiltedPrecise levelling where fine adjustment is needed between readings
Digital LevelElectronic, staff-reading sensorHigh-precision work , bridge construction, large infrastructure projects
Laser LevelLaser beam projectionIndoor construction, short-distance setting out, slab levelling
TheodoliteOptical/electronic, angle measurementTrigonometric levelling, inaccessible points, combined angular and height surveys

Dumpy Level is the classic optical levelling instrument, a telescope fixed permanently in the horizontal position, mounted on a levelling head with three foot screws. It was invented by William Gravatt in 1832 and remains in wide use in India for general construction surveys. The telescope and vertical spindle are monolithically cast, giving the instrument its characteristic rigidity and durability. It is reliable, accurate, and straightforward to use once properly set up and levelled.

Auto Level (Automatic Level) has an internal compensator mechanism, a pendulum or prism system, that automatically maintains the line of sight horizontally within a small range of tilt. This eliminates the need for manual levelling between readings and makes the instrument faster and easier to use than the dumpy level, particularly on uneven ground.

Tilting Level allows the telescope to be tilted slightly about its horizontal axis using a fine screw, which is used to bring the bubble into the centre before each reading. It is more accurate than the dumpy level for precise work, but slower to use because of the additional adjustment required at each setup.

Digital Level uses an electronic sensor to automatically read the bar-coded graduation on a specially designed staff and records the readings digitally. It eliminates reading errors completely and provides high-precision measurements. It is used on major infrastructure projects where high accuracy is required and where digital data storage and processing are beneficial.

A laser level projects a visible or invisible laser beam that defines a perfectly horizontal (or sloped) plane. It is particularly useful for indoor setting out , floor screeding, false ceiling installation, partition layout , and for outdoor slab and pavement construction, where a visible reference line over a large area is needed.

Read More : Chain Surveying

What is Auto Level in Civil Engineering?

The auto level, also called the automatic level, is the most widely used levelling instrument in the civil engineering fieldwork in India in 2026. Its key feature is the internal compensator: a self-levelling mechanism that automatically corrects for small deviations from horizontal, maintaining an accurate horizontal line of sight without manual intervention.

In practice, the surveyor sets the instrument up on its tripod, roughly levels it using the foot screws until the circular bubble is approximately centred, and the compensator takes care of the rest. This makes the auto level significantly faster to use than a dumpy or tilting level, particularly over long days in the field where the instrument may need to be moved many times.

Auto levels are used for virtually all standard levelling tasks in civil engineering, establishing benchmarks, transferring levels across a site, profile levelling along road alignments, and setting out floor, slab, and foundation levels on construction sites. They are robust, reliable, and available in a range of accuracy grades for different project requirements.

Levelling Staff and Rod

The levelling staff, also called a levelling rod, is the graduated measuring pole that is held vertically on the points whose elevation is required, while the surveyor reads the graduation at the horizontal line of sight through the level instrument.

Standard levelling staffs in India are 4 metres or 5 metres in length, graduated in metres, decimetres, and centimetres, with clear numbering to allow reading from a distance of 50 to 100 metres. The graduation is typically in the form of alternating black and white bands of 5 mm each, numbered at every 10 cm interval.

Types of levelling staff:

A solid staff is a single rigid rod of fixed length, simple and robust but limited in length to what can be practically carried. A folding staff has two or three sections joined by hinges that fold flat for transport and are unfolded and locked straight for use. A telescopic staff has sections that slide inside each other and extend to the full length when extended , the most common type on Indian construction sites today.

Taking a staff reading: The staff must be held perfectly vertical for the reading to be accurate. The best method is for the staffman to gently rock the staff forward and backward toward the instrument, and the surveyor records the lowest reading seen , which corresponds to the truly vertical position. A small circular bubble on the staff ensures verticality.

Build a strong career in civil engineering with the right guidance and practical courses. Explore different specializations, learn industry-relevant skills, and take a clear first step toward shaping your future in engineering.

Methods of Levelling

Once the instrument is set up and staff readings are taken, the field data is reduced and converted into elevation values, using one of two standard methods: the Height of Instrument Method and the Rise and Fall Method.

Height of Instrument Method (HI Method)

This method calculates the Height of the Instrument (HI), the elevation of the instrument's line of sight, by adding the backsight reading to the known elevation of the starting benchmark. All other elevations are then found by subtracting the foresight readings from this HI.

Formulas: HI = RL of benchmark + Backsight reading RL of new point = HI − Foresight reading

Simple example:

PointBSISFSHIRLRemarks
A (BM)1.250,,101.250100.000Known benchmark
B,0.875,,100.375Intermediate
C,,1.420,99.830Foresight

HI = 100.000 + 1.250 = 101.250 RL of B = 101.250 − 0.875 = 100.375 RL of C = 101.250 − 1.420 = 99.830

The HI method is fast and simple, making it preferred for setting out work where the instrument height is the key working value. Its limitation is that it does not provide a direct arithmetic check on intermediate sight readings.

Rise and Fall Method

This method compares each consecutive pair of staff readings and determines whether the ground level has risen or fallen between them. It provides a complete arithmetic check on all readings, including intermediate sights, which makes it more reliable for detecting errors in differential levelling along long routes.

Formulas: If current reading < previous reading → Rise = Previous reading − Current reading → New RL = Previous RL + Rise If current reading > previous reading → Fall = Current reading − Previous reading → New RL = Previous RL − Fall

Arithmetic check: Sum of BS − Sum of FS = Sum of Rise − Sum of Fall = Last RL − First RL

Simple example:

PointBSISFSRiseFallRLRemarks
A1.250,,,,100.000BM
B,0.875,0.375,100.375Rise
C,,1.420,0.54599.830Fall

Check: BS total (1.250) − FS total (1.420) = −0.170 = Last RL (99.830) − First RL (100.000) = −0.170

What is Reduced Level in Surveying?

Reduced Level in surveying is the vertical height of any survey point measured relative to an assumed or fixed datum, usually mean sea level or a local benchmark. It is the fundamental output of levelling fieldwork, the elevation value assigned to each measured point.

Formula: RL = HI − Staff Reading (using HI method) or RL = Previous RL ± Rise/Fall (using Rise and Fall method)

Why is RL important?

Every structural drawing, road profile, drainage design, and earthwork calculation is based on reduced levels. When a structural engineer specifies that a column base is at RL +0.500m, the site engineer uses that value to set out the foundation at exactly 500mm above the project datum. When a drainage engineer designs a pipe at a gradient of 1 in 200, the inlet and outlet reduced levels determine exactly how deep the pipe must be excavated at each point.

Benchmark vs Reduced Level: A benchmark is a physical point of known RL, a fixed reference that all other RLs in the survey are calculated from. The Great Trigonometric Survey (GTS) benchmarks established by the Survey of India are referenced to mean sea level at Bombay (Mumbai) Port and are used as primary references for major infrastructure projects across India.

Principles of Levelling

Levelling in civil engineering is governed by a set of fundamental principles that ensure accurate and reliable results.

Horizontal line of sight: The instrument must maintain a truly horizontal line of sight during all readings. Any tilt of the line of sight introduces a systematic error in every reading taken. The compensator in an auto level, the bubble in a dumpy level, and the tilting screw in a tilting level all serve this single purpose.

Working from a known datum: Every levelling survey must start from a point of known elevation, a benchmark, and ideally close back to the same or another known benchmark to verify accuracy. Starting from an assumed datum is acceptable for relative comparisons but introduces risk if the assumed value is later found to be incorrect.

Equal backsight and foresight distances:  Setting the instrument equidistant from the two staff positions minimises the effects of curvature and refraction, and eliminates the error caused by a slightly misaligned line of collimation. When equal distances are not possible, corrections for curvature and refraction should be applied.

Minimum number of setups: Each time the instrument is moved, a small setup error is introduced. Minimising the number of instrument positions, using longer backsight and foresight distances, reduces cumulative setup errors across a long levelling run.

Arithmetic checks: For any levelling run, the arithmetic check, Sum of BS − Sum of FS = Last RL − First RL, must be satisfied exactly. This confirms that there are no mathematical errors in the reduction of readings. For a closed loop that returns to the starting benchmark, the misclosure should be within the permitted tolerance for the class of levelling being carried out.

Applications of Levelling in Civil Engineering

The applications of levelling in civil engineering span every type of infrastructure project and every stage of the project lifecycle.

Road and highway design requires profile levelling along the centreline of the proposed route to establish the existing ground levels, from which the road design gradient and cut and fill requirements are determined. Cross-section levelling provides the lateral ground profile needed for earthwork quantity calculations.

Building and structural setting out uses levelling to establish floor levels, foundation depths, column base levels, and slab thicknesses on construction sites. The site benchmark is transferred to the working area, and all structural levels are set relative to it.

Irrigation and canal design requires accurate longitudinal levelling along canal alignments to establish the correct gradient for water flow. Cross-section levelling provides the data for designing embankment and cutting profiles.

Drainage and sewerage design depends on levelling data to establish the gradients of drainage pipes and sewers, the inlet and outlet levels of manholes, and the relationship between drainage levels and existing ground levels.

Dam and reservoir design requires extensive levelling surveys to map the topography of the catchment area, establish the dam crest and foundation levels, and calculate the reservoir storage capacity from contour data.

Bridge design and construction uses levelling to establish the levels of foundations, pier bases, abutments, and deck soffit levels , ensuring that the bridge structure is built at the correct elevations and that clearance requirements for navigation or flood levels are met.

Contour mapping and topographic surveys use grid levelling , systematic elevation measurements at regular intervals across an area , to generate the contour data needed for site planning, drainage design, and environmental impact assessments.

Still confused about your career path in civil engineering? Explore our expert-led courses and get the right guidance to choose your specialization. Build in-demand skills, gain practical knowledge, and take the first step toward a successful engineering career today.

Frequently Asked Questions

What is levelling in civil engineering?

Levelling in civil engineering is the process of measuring and establishing the difference in elevation between points on the Earth's surface, using a levelling instrument and staff. It provides the vertical control framework that all civil engineering design and construction is based on , from foundation depths and floor levels to road gradients and drainage slopes.

What are the main types of levelling in civil engineering?

The main types of levelling in civil engineering are simple levelling, differential levelling, fly levelling, profile levelling, cross-section levelling, reciprocal levelling, and trigonometric levelling. Each is suited to different distances, site conditions, and accuracy requirements.

What is a reduced level in surveying?

Reduced level in surveying is the vertical height of a survey point measured relative to a fixed datum , typically mean sea level or a local benchmark. It is the fundamental output of a levelling survey and is used to specify and set out all construction elevations on a project.

What is the difference between the HI method and the Rise and Fall method?

The Height of Instrument (HI) method calculates the elevation of the instrument's line of sight and uses it to find all point elevations , it is fast and suitable for setting out work. The Rise and Fall method compares consecutive staff readings to determine whether the ground has risen or fallen between points , it provides a complete arithmetic check on all readings and is more reliable for detecting errors in long differential levelling runs.
