If you've searched "revit system requirements" and landed on Autodesk's official page, you probably came away more confused than when you started. It says 16GB RAM is fine. It says a 2GHz processor works. Technically, sure. Practically? That machine is going to make you want to throw your laptop out the window by week three of your BIM coursework.
Let's actually talk about this properly - not the "will it open" version, the "will it survive a real project" version.
Also Read: How to Start with Revit Beginner Certification
Autodesk's Official Minimum Requirements for Revit 2026
Here's what Autodesk publishes for Revit 2026, straight from their support page:
- OS: 64-bit Windows 10 (v1809+) or Windows 11
- CPU: Intel or AMD, 2 GHz or higher base clock
- RAM: 16 GB
- GPU: DirectX 11 capable, Shader Model 5, 4GB VRAM recommended
- Storage: 30 GB for install, 100 GB free recommended for temp files
- Display: 1280×1024 minimum
That's it. That's the whole "minimum" tier. And notice the wording - "usually sufficient for a typical editing session for a single model up to approximately 300 MB." A single model. Not linked files, not a browser tab open, not your Spotify running in the background. Just one small file.
Why the "Minimum" Specs Aren't Enough for Real Projects
Here's the thing nobody tells you when you're buying your first laptop for architecture school: minimum requirements are a legal safety net, not a usability promise. They exist so Autodesk can say "yes, technically it runs on this."
The moment you open a project with a couple of linked files - say your structural consultant's model, or a site plan - RAM usage climbs fast. Add a few views open at once, maybe an Enscape render running in another window, and that 16GB ceiling gets hit embarrassingly quickly. What happens next isn't a crash, usually. It's worse in a way - Revit starts paging to your hard disk, and everything just... slows to a crawl. Views take forever to regenerate. Saving feels like it's judging you.
Got your hardware sorted? Kaarwan's Revit & BIM Certification Course turns that setup into real, job-ready modeling skills - structured for beginners, built for outcomes.
RAM: The 20x Rule for Model Size
This is the one number that matters more than anything else, and it's genuinely simple once you get it.
Rule of thumb: your RAM should be roughly 20 times your .rvt file size.
- A 300MB model → 16GB is technically okay for light, single-model editing
- A 500MB–600MB model → you want 32GB
- A 1GB+ model, or anything with multiple linked files → 64GB is where you should be
Why 20x and not something smaller? Because Revit doesn't just load the raw file into memory - it loads the entire database of every element, family, view, and parameter, then keeps working copies of things as you edit. A 100MB model can easily eat 2GB before you've clicked anything. Now stack a browser with fifteen tabs, a PDF viewer, and maybe Teams running in the background on top of that.
If you take away one thing from this entire guide, let it be this: RAM is the cheapest, highest-impact upgrade you can make. Don't skimp here to save a few thousand rupees. You'll regret it every single time you sync a large file.
Also Read : Speed Up Architectural Renders Without Crashing Your Laptop

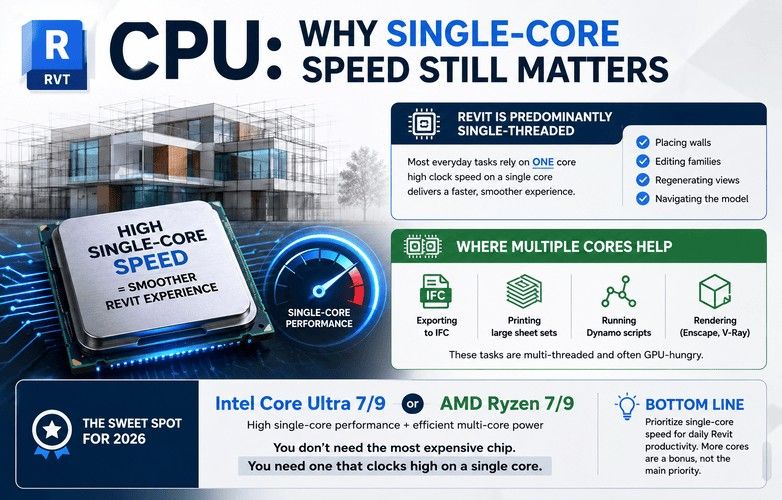

CPU: Why Single-Core Speed Still Matters
This is where a lot of people overspend, ironically in the wrong direction.
Revit's core modeling engine - placing walls, editing families, regenerating views, navigating the model - runs predominantly on a single thread. Not spread across sixteen cores. One core, doing the heavy lifting, while the rest mostly sit around.
What this means practically: a processor with a high base clock speed and strong single-core boost will feel faster in daily Revit use than a chip with way more cores running at a lower clock. You don't need a 24-core workstation CPU to model comfortably. You need one that clocks high on a single core.
Where multiple cores do help: exporting to IFC, printing big sheet sets, running Dynamo scripts, and - this is the big one - rendering plugins like Enscape or V-Ray, which are genuinely multi-threaded and GPU-hungry. If your workflow includes real-time rendering, factor that in separately from your modeling needs.
A recent Intel Core Ultra 7/9 or AMD Ryzen 7/9 with good single-core performance is the sweet spot for most students and working professionals in 2026. You don't need the most expensive chip on the shelf.
Also Read : Revit Certification Levels: ACU, ACP & Expert Guide (2026)
GPU: What Changed With Revit 2026's Accelerated Graphics
For years, the standard advice was "Revit barely uses your GPU, don't overspend here." That's mostly still true, but 2026 nudged things slightly.
Revit 2026 shipped with an Accelerated Graphics Tech Preview - a shift toward using the GPU more for viewport navigation (panning, orbiting, zooming). It's still a preview feature with some limitations, but it signals where things are heading. For pure modeling and documentation work, a mid-range card with 4–8GB VRAM still handles things fine.
The real GPU conversation starts the moment you add rendering into your workflow. Enscape, Lumion, V-Ray, Twinmotion - these are genuinely GPU-heavy applications, and if that's part of your daily routine, you'll want a card with at least 8GB VRAM, ideally more. Interestingly, the same hardware bottlenecks show up in rendering, not just modeling - worth reading if crashes during render exports are something you've dealt with before.
Bottom line: don't buy a gaming-grade GPU just to model in Revit. Buy one if you're actually rendering.
Also Read : Revit & BIM Workflow Changes in 2026 You Can't Ignore
Laptop vs Desktop: Which Should Students Choose?
Honestly, for most architecture students in India, this decision comes down to space, budget, and whether you're commuting between home, studio, and site visits.
Desktops give you more performance per rupee, better cooling (so no thermal throttling mid-render), and easier upgrades later. If you have a fixed desk at home or in your studio and don't need to carry your workstation around, a desktop stretches your budget further.
Laptops make sense if you're moving between college, home, and site visits regularly - which, let's be honest, describes most architecture students' lives. Just be realistic about thermals. A thin, light laptop that looks great in your bag will throttle hard under sustained Revit workloads. Look for laptops with proper cooling systems, not just a good spec sheet.
Can You Run Revit on a Mac?
Short answer: no, not natively. Revit doesn't have a macOS version, full stop.
Your workaround options are Parallels Desktop (works for small files, chokes on anything real), or a cloud-hosted Windows workstation. Boot Camp used to be an option but isn't available on Apple Silicon Macs anymore.
If you're a committed Mac user planning to spend years doing serious BIM work, it's worth being honest with yourself early - either budget for a separate Windows machine, or look into a cloud workstation setup before you're three semesters deep and stuck.
Budget Recommendations for Indian Architecture Students
This is where most Revit guides fall short - they quote US pricing and assume you're buying an RTX 4090. Here's a more grounded breakdown for Indian students:
Entry tier (₹65,000–₹90,000): Look for a Ryzen 7 or Core i7 with 16GB RAM (upgradeable to 32GB later) and a GPU with at least 4GB VRAM. Fine for small residential projects and coursework in your first year or two.
Mid tier (₹1,00,000–₹1,50,000): 32GB RAM, a stronger CPU with good single-core clocks, and 6–8GB VRAM. This is genuinely the sweet spot for most students working through thesis-level projects with linked models.
If budget allows (₹1,60,000+): 64GB RAM, a high-clock CPU, and 8GB+ VRAM if you're also rendering with Enscape or Lumion. Worth it if you know you're heading into a BIM-heavy career track.
If you can only upgrade one component beyond the base configuration, make it RAM. Every single source on this topic agrees on that point.
Once your setup is sorted, the next question is usually where to actually start learning the software properly - that's a separate rabbit hole worth getting right from day one.
Skip the trial-and-error. Kaarwan's Revit & BIM Certification Course walks you through workflows, families, and worksets the way working BIM professionals actually use them.
FAQs
Can Revit run on 8GB RAM?
No. Autodesk's own minimum is 16GB, and even that's tight for anything beyond the smallest models. 8GB will struggle to even open Revit comfortably alongside your OS and background apps.
Do I need a dedicated graphics card for Revit?
For serious work, yes - even a modest one. Revit's viewport display, shaded views, and the newer Accelerated Graphics preview all lean on the GPU. Integrated graphics alone will feel sluggish once your models get any real complexity.
Is a gaming laptop good for Revit?
Often, yes - gaming laptops tend to pack strong CPUs and dedicated GPUs at reasonable prices. Just check the cooling system before buying; thermal throttling under sustained Revit workloads is a real issue on some thinner gaming models.
How much does system performance actually affect grades or coursework?
More than people admit. Slow save times, laggy views, and crashes during a submission crunch don't just waste time - they cost you working hours you don't have back. A well-specced machine isn't a luxury for architecture students; it's part of your toolkit, same as a good stylus or a solid printer.
