Step-by-Step Workflow From SketchUp to Lumion Render

From Idea to Atmosphere

For architects, a drawing is never just a drawing. It is an invitation into a space that does not yet exist. But clients, students, and even colleagues often struggle to visualise plans and models in their raw state. That is why rendering has become central to architectural communication.

Among the many tools available, SketchUp remains the go-to for fast, intuitive modelling, while Lumion has emerged as one of the most powerful rendering engines for atmospheric, real-time visualisations. Together, they form a workflow that is both efficient and visually striking.

This blog takes you through the step-by-step journey of moving from SketchUp to Lumion, helping you not only master the process but also refine your storytelling as a designer.

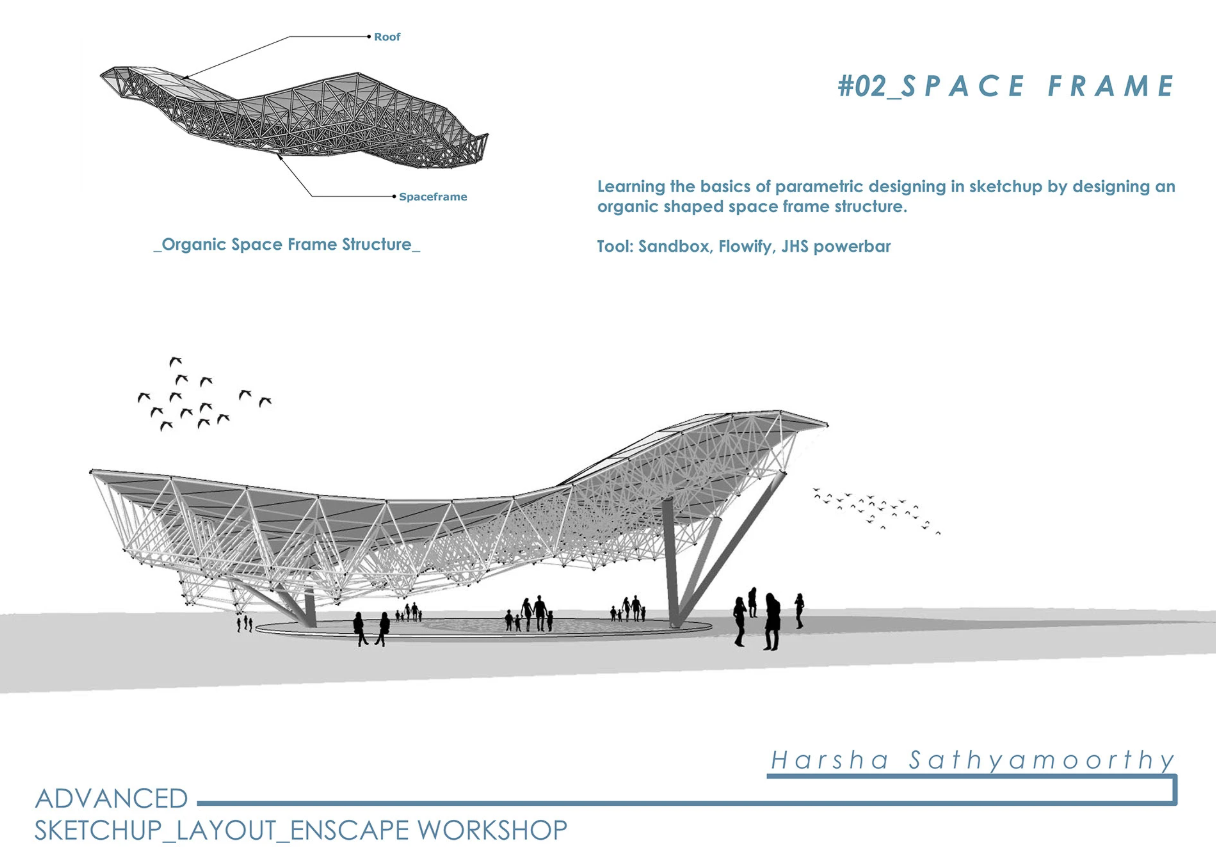

Image Source: Kaarwan SketchUp & Lumion Advance Course, Learner Portfolio displaying space frame modelled in SketchUp.

Step 1: Preparing the Model in SketchUp

Before importing into Lumion, the SketchUp model must be clean and well-structured. Poorly prepared files often lead to heavy, slow renders later. Key preparation steps include:

Organise Layers and Groups – Assign walls, furniture, glazing, landscape elements to layers/tags. This makes it easier to apply materials and toggle visibility later in Lumion.
Purge Unused Components – Delete hidden geometry, unused materials, and redundant groups to reduce file size.
Scale and Proportion Check – Ensure all dimensions are correct; Lumion reads true scale.
Set Camera Views – Save key SketchUp scenes; these can be imported into Lumion for consistent camera angles.

Think of this stage as setting the bones of your design. The clearer and lighter your model, the more effortless your rendering experience will be.

Step 2: Exporting the Model

SketchUp models can be exported directly in .SKP format for Lumion. Alternatively, for larger projects, exporting as a Collada (.DAE) file ensures smoother performance.

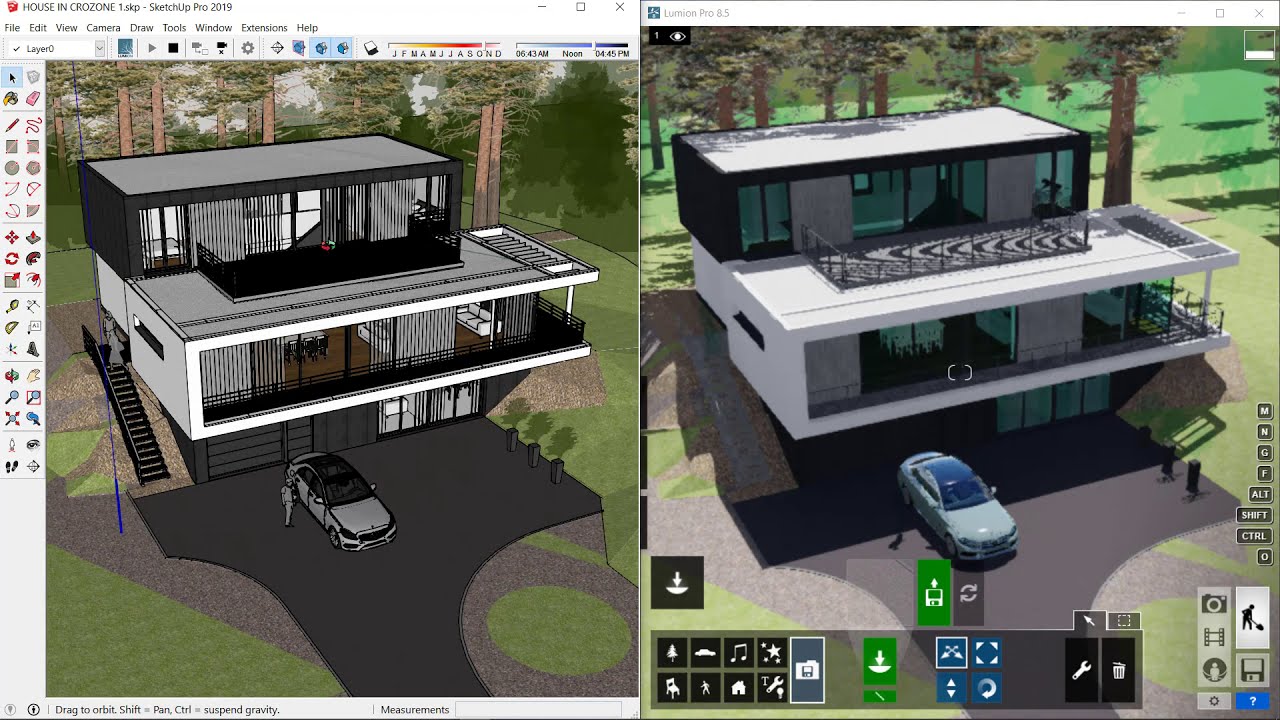

For LiveSync: Install the Lumion LiveSync plugin for SketchUp. This allows you to see real-time changes in Lumion as you model in SketchUp.
For Static Export: Save the final model as .SKP or .DAE, ready for direct import.

Step 3: Importing into Lumion

Once inside Lumion:

Import the Model – Use the Import New Model button, then place it into your Lumion scene.
Scale and Placement – Check that the model sits correctly on Lumion’s terrain. Adjust elevation to avoid “floating” or “sinking.”
Orientation – Rotate or reposition if north direction or context needs alignment.

This is where the raw geometry begins its transformation into a lived-in environment.

Image Source: Rendering Artist

Step 4: Applying Materials

SketchUp’s materials are placeholders. In Lumion, they gain realism:

Replace Materials – Swap SketchUp textures with Lumion’s high-quality material library (wood grains, glass, metals, concrete, etc.).
Fine-Tune – Adjust glossiness, bump maps, and reflectivity. For instance, a polished marble surface and a rough limestone block can behave very differently under light.
Custom Materials – Import bespoke textures (tiles, fabrics, finishes) to match the design intent.

This step is where the flat becomes tactile.

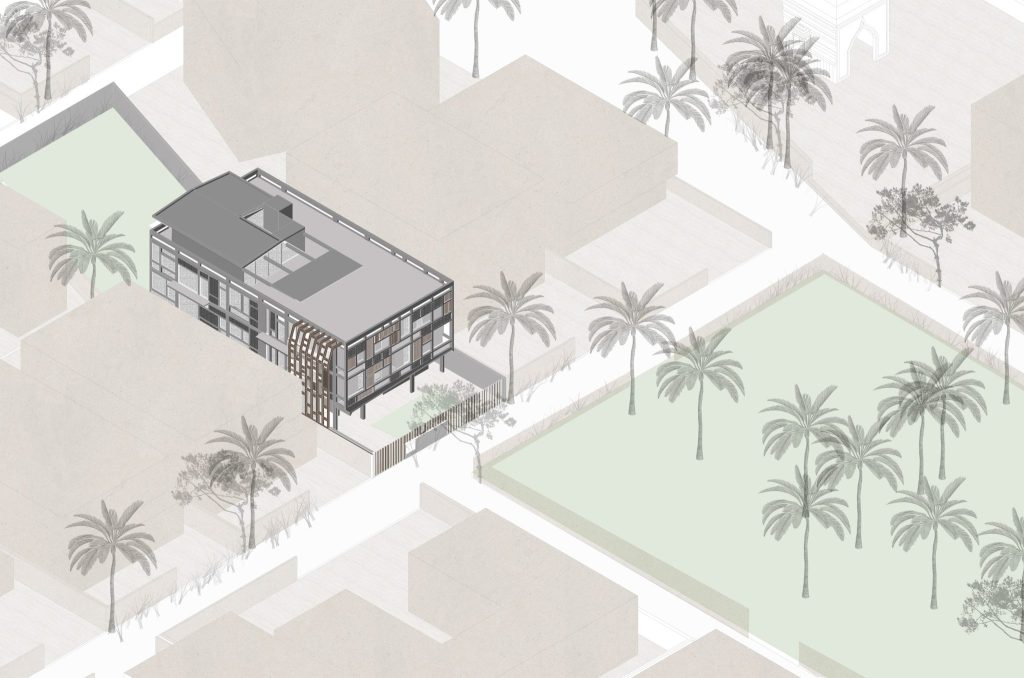

Step 5: Adding Landscape and Context

A building rarely exists in isolation. Lumion’s vast asset library allows you to create context quickly:

Terrain Editing – Sculpt land, add hills, or flatten plots.
Vegetation – Use realistic trees, shrubs, and grasses; add variety to avoid repetitive patterns.
Water and Roads – Integrate rivers, pools, or urban roads for context.

Remember: the story of a building is incomplete without its surroundings.

Step 6: Lighting the Scene

Lighting can make or break a render. Lumion offers multiple options:

Sunlight – Adjust time of day, shadows, and sky conditions.
Artificial Lights – Place spotlights, area lights, or omni lights for interiors and landscapes.
Global Illumination – Refine ambience with effects like skylight or hyperlight for realism.

A pro tip: avoid over-lighting. Subtle contrasts often feel more believable.

Step 7: Rendering Still Images

Once satisfied with composition:

Set Camera Views – Import SketchUp scenes or create new ones in Lumion.
Adjust Effects – Apply depth of field, exposure, and reflection controls.
Render Output – Export at high resolution for presentations or print, or standard resolution for digital sharing.

Step 8: Rendering Animations and Walkthroughs

Lumion excels at immersive storytelling:

Path Animations – Define camera paths for flythroughs.
Phasing – Animate construction stages for presentations.
People & Objects – Populate with animated humans, vehicles, and birds to add life.

These animations bring clients closer to experiencing the project as a lived environment rather than an abstract form.

Step 9: Refining and Post-Production

While Lumion produces near-final outputs, some polishing in Photoshop or After Effects can enhance results:

Correct colours and contrast.
Add entourage (branding, text overlays, diagrams).
Fine-tune skies or reflections.

Why This Workflow Matters

Architects no longer present only plans and elevations. Today, clients expect immersive narratives. A fast, reliable workflow — from SketchUp to Lumion — allows architects to deliver compelling visuals without endless back-and-forth.

For students, mastering this process provides an edge in portfolios and competitions. For professionals, it means clearer communication and faster approvals.
