From ancient forts and temples to contemporary landscape walls, stone masonry has stood the test of time as one of the most durable and expressive building techniques. For architecture students, understanding the types of stone masonry is both an academic necessity and a professional advantage, especially when preparing building construction drawings.
This guide explains the different types of stone masonry, supported with drafted elevation diagrams and their real-world applications.
What is Stone Masonry?
Stone masonry is the construction technique of building with stones and mortar. It is valued for strength, longevity, and aesthetics. Masonry can be load-bearing or decorative, depending on the project.
In architecture schools, students are often asked to draw and label different types of masonry as part of Building Materials & Construction courses. These diagrams form a quick reference for exams and design studios.
Types of Stone Masonry
Image Source: Civil Seek
1. Rubble Masonry
- Uncoursed Rubble Masonry: Stones of irregular size/shape are fitted randomly.

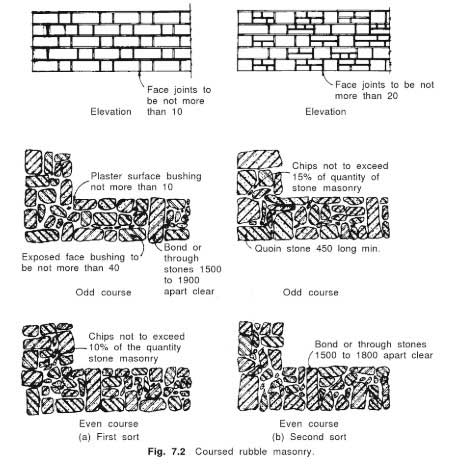

- Coursed Rubble Masonry: Stones are arranged in horizontal courses, though still irregular.
- Application: Compound walls, rural houses, retaining walls.
- Diagram Tip: Show irregular outlines with mortar joints.
Image Source: Civil Seek
2. Ashlar Masonry
- Ashlar Fine Masonry: Precisely cut and dressed stones laid in uniform courses.
- Ashlar Rough Masonry: Dressed only on exposed faces, sides remain rough.
- Ashlar Rock-Faced Masonry: Edges are finished, but faces are left rough for texture.
- Application: Temples, palaces, monumental architecture, high-end facades.
- Diagram Tip: Show neatly cut rectangular blocks with minimal mortar thickness.
Image Source: Vecteezy

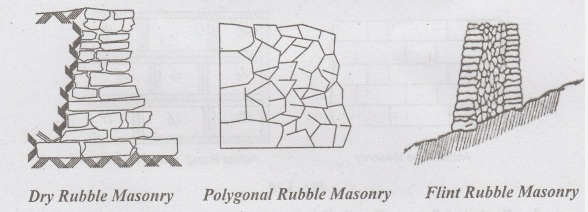

3. Polygonal Masonry
- Irregular stones with multi-sided shapes fitted together like a puzzle.
- Application: Pavements, retaining walls, rustic finishes.
Image Source: Civil Depatment Poriyan
4. Dry Masonry
- Stones stacked without mortar, relying on gravity and friction.
- Application: Garden retaining walls, landscape features.
- Diagram Tip: Indicate tight joints without mortar hatching.
Importance of Stone Masonry in Architecture
- Historical Value: Many heritage buildings (e.g., Indian forts, European castles) used stone masonry.
- Structural Strength: Properly executed stone masonry can last for centuries.
- Aesthetics: Rough or polished stone surfaces add timeless beauty.
- Sustainability: Locally available stones reduce transport energy and support vernacular design.
| PURPOSE | STONE-USED |
| Heavy engineering worksEx: stocks, break waters, light houses, bridges, piers | Granite, Gneiss |
| Buildings situated in industrial towns | Granite and compact sandstone |
| Pavements, railway ballast, door sits and steps | Granite slabs and slate |
| Electrical switch board | Marble slabs and slate |
| Fire resistance works | Compact sandstone |
| Carving and ornamental works | Marble and laterite |
| Face work and architectural purposes | Marble, granite closer gained sand stone |
Source: kpstructures
Drafting Stone Masonry Diagrams
In manual drafting exams, neatness is key:
- Use thicker lines for outer profiles.
- Represent mortar joints with thinner lines.
- For rubble masonry, vary stone sizes for realism.
- For ashlar, maintain uniform rectangular blocks.
Students can elevate these hand drawings by learning digital drafting through AutoCAD and creating photo-realistic outputs using Advanced SketchUp & Visualisation Rendering and Mastery courses.
Case Reference: Indian Stone Masonry Traditions
- Rajasthan: Jodhpur sandstone (Mandore temples).
- Madhya Pradesh: Khajuraho temples in granite and sandstone.
- South India: Hoysala temples with intricately carved soapstone.
These examples prove that stone masonry is not just construction but also craftsmanship that defines the character of a region.
📖 Students preparing for GATE 2026 AR Crash Course or final-year thesis should master stone construction detailing along with drafting and rendering workflows. Our Thesis Bootcamp offers complete guidance for building construction, drawings, and digital presentations.
Transition to Digital & Professional Practice
While drafting remains essential for exams, professional practice expects students to:
- Create construction details in BIM (Revit/ArchiCAD).
- Render realistic stone finishes in Lumion or V-Ray.
- Simulate structural and environmental performance using computational tools.
📌 This is why students should combine Building Construction knowledge with Visualisation & Rendering Programmes to stand out in internships and job applications.
Final Thoughts
Learning the types of stone masonry with diagrams is not just about exams; it’s about understanding one of architecture’s oldest crafts. Whether building rustic rubble walls or refined ashlar facades, stone continues to inspire architects today.
By combining traditional drafting skills with digital visualisation, students can confidently present their designs in both academic and professional contexts.
FAQs
Q1. What is the difference between rubble and ashlar masonry?
Rubble masonry uses irregular stones, while ashlar masonry uses finely cut and dressed stones laid in courses.
Q2. Why is stone masonry important in architecture?
It provides strength, durability, and aesthetic appeal, making it timeless in both heritage and modern projects.
Q3. Which type of masonry is used in historic monuments?
Ashlar masonry is common in temples, palaces, and forts due to its precision and finish.
Q4. Can stone masonry be built without mortar?
Yes, dry masonry uses stones stacked without mortar, often seen in landscape walls.
Q5. How can students represent stone masonry in software?
By using CAD hatches for drafting and applying stone textures in rendering tools like SketchUp, Lumion, or V-Ray.
