If you've been reading around BIM dimensions, you've probably noticed something , most explainers stop being useful right around 5D. Cost data, sure, that's easy to picture. But then 7D shows up and suddenly nobody's giving you a straight answer. So let's fix that.
What Does 7D BIM Mean?
Here's the one-line version: 7D BIM is your 3D model loaded with facility management data , maintenance schedules, warranties, asset lifecycles , the stuff you actually need once the building is handed over and people start living or working in it.
That's really the whole shift to understand. Dimensions 3D through 6D are all about building the thing , modeling it, scheduling it, costing it, checking its sustainability numbers. 7D flips the lens. It's not about construction anymore. It's about running the building for the next 30, 40, 50 years. Someone has to know when the HVAC filter needs replacing, which vendor installed the fire suppression system, and when the warranty on the elevator motor runs out. That someone is the facility manager, and 7D BIM is basically their operating manual, built right into the model.
If you want the full picture of where 7D sits alongside the other dimensions, explore all BIM dimensions from 2D to 10D , it's worth having that map in your head before going deeper into any single one.
Thinking about where BIM skills like this fit into your career? Kaarwan's certification programs walk you through the practical, industry-relevant foundations that sit underneath every one of these BIM dimensions.
Also explore: BIM's Future in MEP Engineering
How 7D BIM Builds on 6D BIM
This is where a lot of people get tangled up, so let's lay it out plainly.
| 6D BIM | 7D BIM | |
| What it adds | Sustainability & energy performance data | Facility management & asset lifecycle data |
| Primary use | Simulating energy consumption, environmental impact | Tracking maintenance, warranties, and asset condition over time |
| Primary stakeholder | Designers, sustainability consultants | Facility managers, building owners |
| When it's used | Design and pre-construction stage | Post-construction, throughout operations |
| Data source | Energy models, environmental simulations | Asset registers, COBie data, maintenance logs |
Basically , 6D asks "how efficient will this building be?" 7D asks "how do we keep it running well, year after year, without constant fire-fighting?" One is predictive, the other is operational. And 7D doesn't exist in isolation either , cost data from 5D (check out how 5D BIM adds cost data if you haven't already) often feeds directly into long-term maintenance budgeting too. The dimensions really do build on each other, not replace each other.

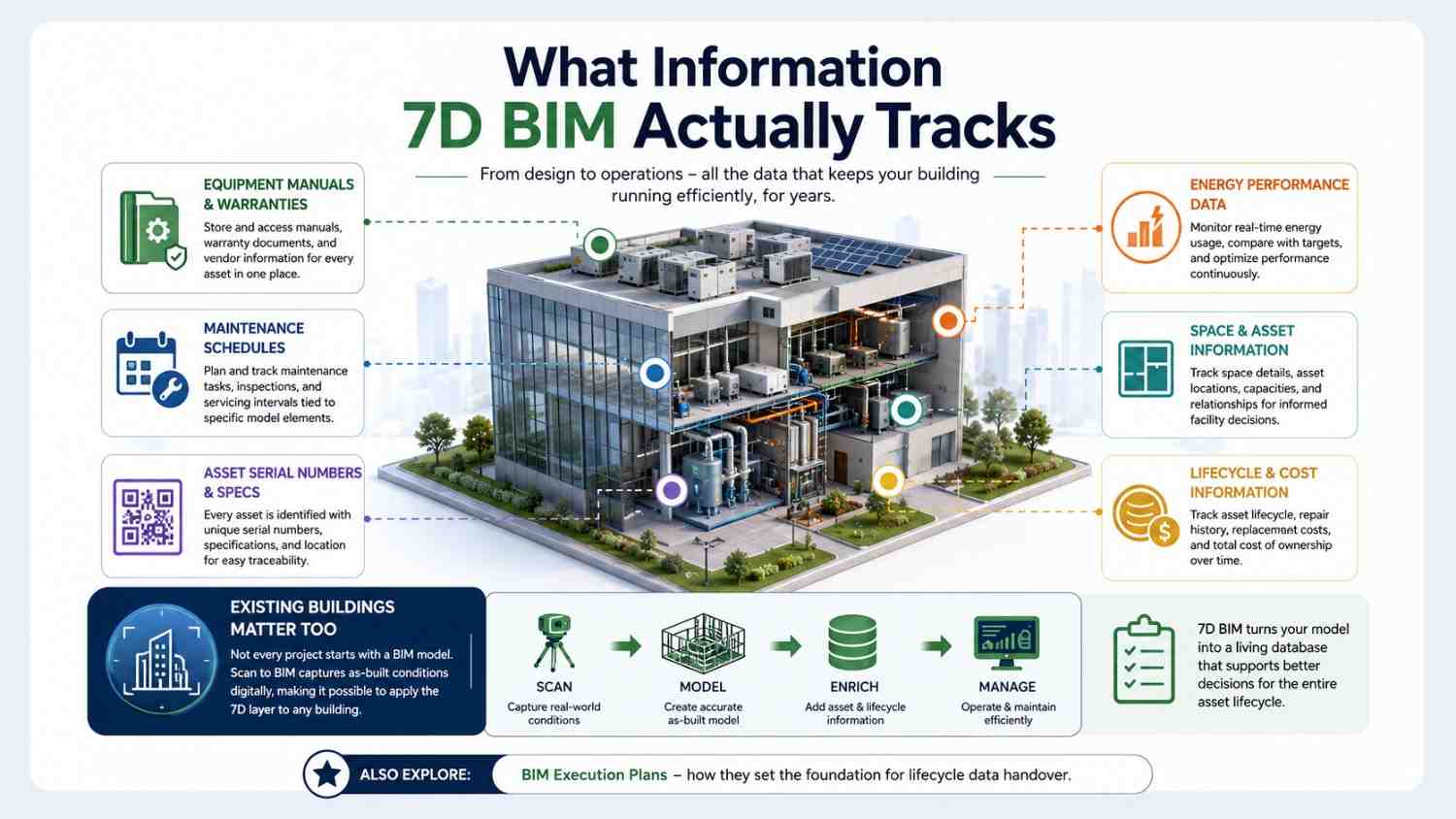

What Information 7D BIM Actually Tracks
Let's get concrete, because vague explanations are where most articles on this topic fall apart.
A well-built 7D model typically holds:
- Equipment manuals and warranties , so nobody's digging through a filing cabinet when a boiler breaks down in year six
- Maintenance schedules , filter changes, inspections, servicing intervals, all tied to specific model elements
- Asset serial numbers and specs , every pump, panel, and piece of MEP equipment identified and traceable
- Energy performance data , carried over from 6D, but now tracked against real, live operational usage rather than predicted usage
This is also where existing buildings come into the conversation. Not every project starts from a clean design model , a lot of facility management work happens on buildings that were never modeled in BIM to begin with. That's exactly the gap that how Scan to BIM supports existing-building data covers , capturing an as-built condition digitally so it can even have a 7D layer applied to it.
Also explore: BIM Execution Plans , how they set the foundation for lifecycle data handover
Why 7D BIM Matters After Handover
Think about a large hospital or a major transit hub , thousands of individual assets, each with its own maintenance cycle, each one a headache if tracked on spreadsheets scattered across departments. Buildings at that scale genuinely can't run on institutional memory or paper trails. When facility data lives inside the model instead, a maintenance team can pull up exactly which valve needs servicing and when, instead of guessing or waiting for something to fail first.
That's really the whole value proposition, distilled:
- Fewer reactive, panicked repairs
- Longer lifespan for expensive equipment
- Facility audits that don't take three weeks of digging through paperwork
- Clear accountability when something's still under warranty versus when it isn't
None of this is glamorous work. But it's the difference between a building that ages gracefully and one that nickel-and-dimes its owner for decades.
Who Uses 7D BIM?
This is the part people researching BIM careers should actually pay attention to, because it's not just architects and contractors in this room.
- Facility managers , the day-to-day owners of this data, the ones actually using it
- Building owners , care about the long-term cost and asset value implications
- Asset managers , track performance and depreciation across a portfolio, not just one building
- BIM coordinators , responsible for making sure the model is clean and complete enough to hand off in the first place
If you're job-hunting or prepping for interviews in this space, it's worth knowing how BIM dimensions come up in interviews , 7D specifically tends to trip people up because candidates rarely study past 5D.
Also read: MEP Engineer Career Paths , where facility-management-adjacent skills fit in
Curious how BIM careers actually take shape after graduation? Kaarwan's Professional Revit & BIM Certification Program builds the core modeling and coordination skills this entire dimension system depends on.
Wrapping Up
3D gave us shape, 4D gave us time, 5D gave us cost, 6D gave us sustainability , and 7D is where the building actually starts getting lived in and looked after. It's less flashy than a 3D walkthrough, sure, but it's arguably where the real long-term value of BIM shows up.
If you're building a career around BIM and want the practical grounding that all of this rests on, start your BIM career with Kaarwan's certification program , it's the foundation this entire dimension conversation sits on top of.
Frequently Asked Questions
What is the difference between 6D and 7D BIM?
6D BIM focuses on sustainability and energy performance, mostly used at the design stage. 7D BIM picks up after handover, tracking maintenance, warranties, and asset data throughout the building's operational life.
Does 7D BIM require special software?
Generally, yes. Facility teams typically pair the BIM model with CAFM (Computer-Aided Facility Management) software, which pulls in the asset and maintenance data structured within the model.
Who is responsible for maintaining 7D BIM data after construction?
That responsibility usually shifts to the facility manager or an in-house asset management team, though BIM coordinators are often involved in structuring the handover data (commonly via COBie) so it's usable in the first place.
Is 7D BIM the same as facility management software?
Not quite. 7D BIM is the structured, model-linked data itself , the facility management software is the tool that reads and acts on that data. Think of one as the content, the other as the interface.
