What is Compass Surveying in Civil Engineering?
Compass surveying in civil engineering is a method of surveying in which the directions of survey lines are determined using a magnetic compass, while the linear distances between points are measured using a chain or steel tape. It builds on the limitations of chain surveying , where only linear distances are measured and a network of triangles must be formed , by adding angular measurement, which means lines can be plotted independently of each other using their direction and length relative to a known reference.
The reference direction used in compass surveying is called the meridian , typically the magnetic north-south direction. The angle that a survey line makes with this meridian is called the bearing of that line. By measuring both the length and the bearing of each survey line, the surveyor can establish the relative positions of all the points in the survey without needing to form a triangular network.
Compass surveying is particularly well suited to route surveys , roads, canals, and pipelines , and to surveys of large or irregular areas where obstacles make triangulation impractical. It is also widely used for preliminary surveys and reconnaissance work where moderate accuracy is acceptable and speed is important.
Read more: Surveying in Civil Engineering
Types of Compass Used in Surveying
Two types of compass are predominantly used in civil engineering surveying , the prismatic compass and the surveyor's compass. Both use a magnetic needle to establish direction, but they differ significantly in their construction, the bearing system they use, and how readings are taken.
| Feature | Prismatic Compass | Surveyor's Compass |
| Graduation circle position | Fixed to the magnetic needle | Fixed to the box |
| Prism | Yes , enables simultaneous sighting and reading | No , only a narrow slit at the viewing end |
| Sighting and reading | Can be done simultaneously | Cannot be done simultaneously |
| Bearing system | Whole Circle Bearing (0° to 360°) | Quadrantal Bearing (0° to 90°) |
| Graduations | Inverted , read through the prism | Direct , read from top |
| Needle function | Does not act as an index | Acts as the index for reading |
| Tripod requirement | Optional, can be hand-held | Mandatory |
| Least count | 30 minutes | 15 minutes |
| Portability | Light and portable | Less portable |
| Common use | Traverse surveys, route surveys | Boundary and small area surveys |
Prismatic Compass

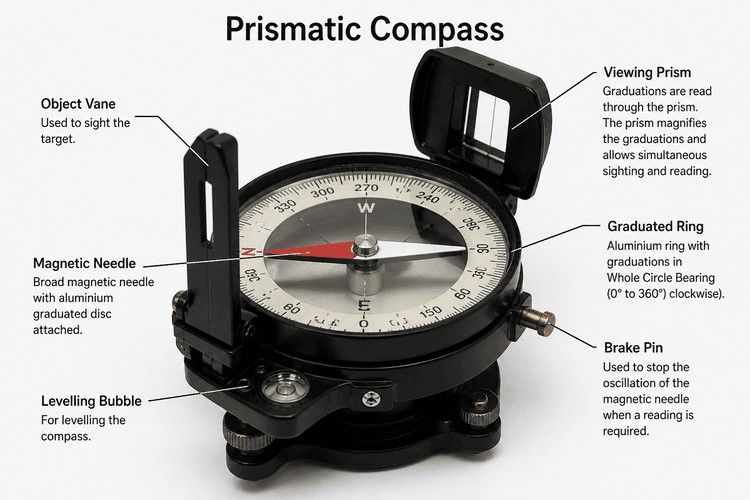

The prismatic compass is the most widely used compass in civil engineering field surveys in India. It has a broad magnetic needle to which an aluminium graduated disc is attached. Bearings are read through a prism at the viewing end, which magnifies the graduation disc and allows the surveyor to simultaneously sight the target and take a reading without changing position. Graduations run clockwise from 0° at north through 90° at east, 180° at south, and 270° at west, the Whole Circle Bearing system. The graduations appear inverted on the disc because they are viewed through a prism. A brake pin is provided to stop the oscillation of the needle when a reading is required.
Surveyor's Compass

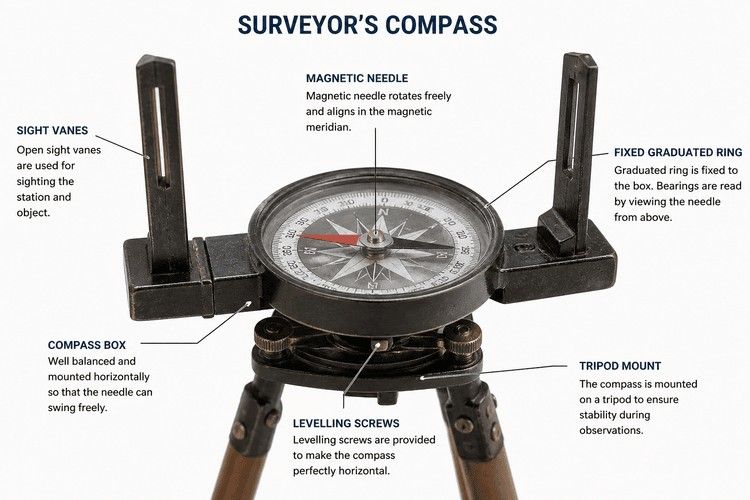

The surveyor's compass has a fixed graduated ring attached to the box, and the magnetic needle rotates freely above it. There is no prism; readings are taken by directly viewing the tip of the needle from above through a glass cover. The bearing system used is the quadrantal system, where bearings are expressed as angles from north or south toward east or west, for example, N 30° E or S 45° W. A tripod is required for stable operation. The instrument is mounted with a levelling arrangement to ensure the needle can swing freely.
Read more: Chain Surveying in Civil Engineering
Bearings in Compass Surveying
A bearing in compass surveying is the horizontal angle that a survey line makes with a reference meridian, measured at one end of that line. The two systems used to express bearings in civil engineering surveying are the whole circle bearing system and the quadrantal bearing system.
Whole Circle Bearing (WCB)
In the whole circle bearing system, bearings are always measured clockwise from the magnetic north direction. The value ranges from 0° to 360°, with north at 0°, east at 90°, south at 180°, and west at 270°. This system is used with the prismatic compass and is more convenient for numerical calculations and traverse work.
Quadrantal Bearing (QB)
In the quadrantal bearing system, bearings are measured from either north or south, whichever is closer, toward east or west. The angle range is 0° to 90° in each quadrant. The bearing is expressed with a letter at the start (N or S) indicating the reference direction, the angle value, and a letter at the end (E or W) indicating the direction of measurement, for example, N 45° E, S 30° W.
Conversion Between WCB and Quadrantal Bearing
| WCB Range | Quadrant | Conversion Formula | QB Notation |
| 0° to 90° | NE | QB = WCB | N (WCB)° E |
| 90° to 180° | SE | QB = 180° − WCB | S (180°−WCB)° E |
| 180° to 270° | SW | QB = WCB − 180° | S (WCB−180°)° W |
| 270° to 360° | NW | QB = 360° − WCB | N (360°−WCB)° W |
Fore Bearing and Back Bearing
Every survey line has two bearings, one measured in the forward direction of survey progress (forebearing) and one measured in the reverse direction (backbearing).
Fore Bearing (FB) is the bearing of a line measured in the direction in which the survey is progressing. For a line AB, the forebearing is measured from A toward B.
Back Bearing (BB) is the bearing of the same line measured in the opposite direction. For line AB, the back bearing is measured from B toward A.
The theoretical relationship between fore bearing and back bearing is straightforward: they should differ by exactly 180°.
If FB is less than 180°: BB = FB + 180° If FB is greater than 180°: BB = FB − 180°
For example, if the fore bearing of line AB is 65°, the back bearing should be 65° + 180° = 245°. If the observed back bearing differs from this calculated value by the same amount at both stations, local attraction is likely present at one of the stations.
Checking fore bearings and back bearings for all lines is a fundamental quality check in compass surveying; it is the primary method for detecting the presence of local attraction at survey stations.
Local Attraction in Compass Surveying
Local attraction is one of the most significant sources of error in compass surveying. It occurs when the magnetic needle of the compass is deflected from its true magnetic north-south alignment by the influence of nearby magnetic or metallic objects.
What causes local attraction?
The most common causes of local attraction in compass surveying are iron ore deposits and magnetic rocks in the ground, steel structures and iron poles near the survey station, overhead or underground electric cables carrying current, and small metallic objects carried by the surveyor, such as a key bunch, metal-framed spectacles, iron buttons, or the chain and arrows used in the survey itself. The surveyor must be careful to keep all such objects away from the compass during observation.
How to detect local attraction?
The standard method for detecting local attraction is to measure both the fore bearing and back bearing of each survey line. If the difference between fore bearing and back bearing is exactly 180°, neither station is affected by local attraction. If the difference is not 180°, a local attraction is present at one or both stations. The back bearing should also be re-observed from the original forward station as a check.
How does it affect compass surveying?
When a local attraction is present at a station, all bearings observed from that station are affected by the same systematic error; the needle is deflected by a fixed amount in one direction. This means that individual bearings measured from that station are incorrect, though the included angle between any two lines measured from the same affected station remains correct, because both bearings are equally deflected.
Master compass surveying with real examples and practical methods. Strengthen your fundamentals, understand bearings and errors, and advance your career with Kaarwan’s BIM Certification for civil engineering professional courses.
Sources of Error in Compass Surveying
Understanding the sources of error in compass surveying helps the surveyor take appropriate precautions and apply the correct corrections where errors are detected.
Instrumental Errors
These arise from defects in the compass itself. A bent or unbalanced needle will not align correctly with the magnetic meridian. Sluggishness of the needle due to a worn or damaged pivot point causes the needle to stick and give incorrect readings. Eccentricity, where the centre of the graduated ring does not coincide with the centre of the needle's pivot, introduces a systematic error in all readings. The glass cover of the compass, if not properly earthed, can become electrostatically charged and attract the needle.
Personal Errors
These are caused by the observer. Careless centring of the compass over the station point introduces position error. Parallax – observing the reading at an angle rather than directly above the graduation – causes reading errors. Sighting inaccurately through the object vane to the ranging rod, or reading the graduation disc before the needle has fully settled, are common sources of personal error. The surveyor should always tap the glass gently to release needle sluggishness and wait for complete needle stabilisation before taking a reading.
Natural Errors
The Earth's magnetic field itself is subject to variations that affect compass readings. Secular variation is a long-period swing of the magnetic meridian over approximately 250 years. Annual variation produces changes of 1 to 2 arc minutes per year. Daily variation, also called 'diurnal variation, can be as large as 10 arc minutes in a single day, being greatest in the afternoon and smallest at night. It is also larger in summer than in winter and greater near the poles than at the equator. Irregular variations caused by magnetic storms, earthquakes, and volcanic activity can produce sudden changes of 1 to 2 degrees.
Looking to build practical civil engineering skills beyond the classroom? Kaarwan's BIM Certification Program for Civil Engineers trains you in real-world digital workflows used by top AEC firms. Learn more
Corrections in Compass Surveying
When a local attraction is detected, the observed bearings must be corrected before the survey can be plotted accurately. Two methods are commonly used.
Included Angle Method
In this method, the included angles at each survey station are first calculated from the observed bearings; the included angles are not affected by local attraction because both bearings forming the angle are equally deflected. Starting from a line that is known to be free from local attraction (where fore and back bearings differ by exactly 180°), the corrected bearings of all subsequent lines are calculated step by step using the included angles. This method is simple and is the most commonly used in student-level compass surveying.
Error Computation Method
This method identifies the amount and direction of local attraction error at each affected station individually. Starting from a station that is free from local attraction, the error at the next station is found by comparing the observed back bearing with the theoretical back bearing (fore bearing ± 180°). The correction is then applied to all bearings observed from that station, and the process continues station by station around the traverse. This method is more rigorous and gives more accurate corrected bearings than the included angle method.
Master compass surveying with real examples and practical methods. Strengthen your fundamentals, understand bearings and errors, and advance your career with Kaarwan’s BIM Certification for civil engineering professional courses.
Procedure of Compass Surveying
The field procedure for compass surveying follows a systematic sequence.
Reconnaissance: The surveyor walks the entire area to identify suitable station locations, assess obstacles, plan survey lines, and prepare a rough index sketch. Stations should be mutually visible, survey lines should be free of obstacles to chaining, and lines should run close to the objects that need to be located.
Station Marking: Survey stations are marked with pegs, ranging rods, or paint marks on hard surfaces. Reference sketches for each station are recorded in the field book at the start of the survey.
Setting up the Compass: At each station, the compass is centred directly over the station mark using a plumb bob and levelled using the bubble level. For a prismatic compass, the prism is focused on the graduation disc until readings are sharp and clear.
Measuring Bearings: The object vane is aligned toward the target ranging rod at the far end of the survey line. Once aligned, the needle is allowed to settle fully, and the brake pin is used to gently dampen any residual oscillation. The bearing is read and recorded in the fieldbook. Both fore bearings and back bearings are measured for each line.
Measuring Distances: Chain or steel tape measurements are taken along each survey line following the chain-surveying procedure. Offsets to the surrounding detail are measured at the same time.
Recording Field Notes: All bearings, chain distances, and offset measurements are recorded in the field book. Neat reference sketches of each station and the surrounding detail are drawn alongside the measurements.
Closing the Traverse: For a closed traverse, one that starts and ends at the same station, the survey is complete when the final station's measurements are recorded, and the forward bearing from that station back to the first station can be verified. For an open traverse, used for route surveys, the survey ends at the final station of the route.
Advantages and Limitations
Advantages of Compass Surveying
Compass surveying allows independent plotting of each survey line using its direction and length, eliminating the need for a triangular framework, which makes it much more flexible than chain surveying in areas with obstacles. It is suitable for large areas, route surveys, and irregular terrain where chain surveying would be impractical. The equipment is lightweight, portable, and easy to set up. Errors in one survey line do not propagate to adjacent lines, making the survey more robust to localised mistakes.
Limitations of Compass Surveying
The most significant limitation is the dependency on the Earth's magnetic field , the compass cannot be used reliably in areas affected by magnetic disturbances from iron ore deposits, steel structures, or electric cables. Compass surveying is less accurate than theodolite or total station surveying because angular measurement with a magnetic compass is inherently less precise than electronic angle measurement. It is subject to multiple sources of error , local attraction, instrumental errors, and daily magnetic variation , all of which require careful identification and correction. The method is more time-consuming in the field than chain surveying alone because both linear and angular measurements must be recorded at each station.
Chain surveying and compass surveying are foundational techniques. But in 2026, modern civil engineering projects use GPS, LiDAR, and BIM-integrated survey workflows. Upgrade your skills with Kaarwan's BIM Certification Program for Civil Engineers and learn how survey data feeds directly into 3D project models used by top AEC firms
Master compass surveying with real examples and practical methods. Strengthen your fundamentals, understand bearings and errors, and advance your career with Kaarwan’s BIM Certification for civil engineering professional courses.
Frequently Asked Questions
What is compass surveying in civil engineering?
Compass surveying in civil engineering is a method of measuring the directions of survey lines using a magnetic compass and the linear distances using a chain or tape. It allows survey lines to be plotted independently using their bearing and length relative to the magnetic meridian, without requiring a triangular framework as in chain surveying.
What is the difference between a prismatic compass and a surveyor's compass?
The prismatic compass uses the whole circle bearing system (0° to 360°), has a prism that allows simultaneous sighting and reading, and can be hand-held. The surveyor's compass uses the Quadrantal Bearing system (0° to 90°), has a plain slit at the viewing end requiring separate sighting and reading operations and requires a tripod for stable operation.
What is local attraction in compass surveying?
Local attraction in compass surveying occurs when the magnetic needle is deflected from its true north-south alignment by nearby magnetic objects – iron ore deposits, steel structures, electric cables, or metallic objects carried by the surveyor. It is detected by comparing fore bearings and back bearings; if the difference is not 180°, local attraction is present. It is corrected using the included angle method or the error computation method.
What is the relationship between forebearing and backbearing?
The fore bearing and back bearing of any survey line should theoretically differ by exactly 180°. If the forebearing is less than 180°, the back bearing equals the forebearing plus 180°. If the forebearing is greater than 180°, the back bearing equals the forebearing minus 180°. Any deviation from this 180° difference indicates the presence of local attraction at one or both survey stations.
