At first glance, Aerogel appears almost unreal — a material that looks more like frozen smoke than a physical substance. Yet beneath its ghostly, translucent appearance lies one of the most powerful insulation materials ever engineered. Originally developed by NASA to withstand the harsh temperature extremes of space exploration, Aerogel has quietly transitioned from the realm of aerospace to architecture.
Today, it is emerging as a revolutionary material for architects and building scientists working at the intersection of performance, lightness, and sustainability. Over the next decade, Aerogel is expected to feature prominently in high-performance façades, deep energy retrofits, net-zero buildings, and ultra-light envelope systems.
What Exactly Is Aerogel?
Aerogel is a solid material derived from a gel — but with one radical difference: the liquid component of the gel is replaced entirely by gas. The result is an extremely porous, ultra-light network of silica particles, containing up to 98% air by volume.
This gives Aerogel its remarkable combination of qualities — superb thermal insulation, minimal weight, and a semi-transparent appearance that diffuses light softly.
To understand its technical efficiency, a few key numbers are enough:
- Density: ~0.03 g/cm³
- Thermal Conductivity: as low as 0.013 W/mK
- Hydrophobic: naturally repels water
- Fire Resistant: withstands extreme temperatures, depending on formulation
- Composition: primarily silica-based for building applications
These figures translate into a material that delivers the highest insulation value per millimetre of thickness of any known building product. It enables deep energy performance without bulk - a quality architects have long sought in insulation design.
Image Source: Cordis
Why Aerogel is a Game-Changer in Architectural Design
Modern architecture is being reshaped by the need to balance thermal efficiency, spatial optimisation, and material honesty. Aerogel fits this brief with precision.
| Benefit Type | Why It Matters |
|---|---|
| Ultra-thin insulation | Achieves deep thermal performance while maintaining usable floor space. |
| High fire resistance | Offers safer envelopes compared to many foam-based insulation materials. |
| Ideal for heritage retrofits | Enables high insulation without thickening or altering historic façades. |
| Translucent insulation | Can diffuse daylight while insulating — ideal for skylights and daylight façades. |
| Material compatibility | Works with timber, composite panels, and membranes for lightweight assemblies. |
In essence, Aerogel allows buildings to perform better without becoming heavier or visually denser — a subtle but profound shift in how we think about thermal layers in design.
Application Domains Where Aerogel Excels
Aerogel’s versatility allows it to adapt across a diverse range of architectural conditions. Its use is particularly relevant in contexts that demand high thermal performance with minimal material depth:
- Heritage and Conservation Projects: where wall build-ups cannot be thickened or altered visually.
- Cold Climate Envelopes: delivering superior insulation without compromising form or daylight.
- Skylights and Translucent Systems: providing daylight diffusion and thermal performance in a single layer.
- Passive House Retrofits: enabling ultra-low energy refurbishment in spatially constrained buildings.
- Offsite Timber and Light-Frame Systems: creating compact, modular, and circular construction envelopes.
From frozen Arctic research pods to dense European retrofits, Aerogel’s applications are expanding far beyond its space-age origins.
Image Source: archdaily
Architectural Case Studies
1. The Kanopée Building, Lyon, France: This timber-hybrid mixed-use building integrated aerogel insulation panels within a layered façade system to meet stringent energy efficiency targets without compromising the building’s lightness or spatial integrity. Aerogel’s inclusion allowed the architects to reduce wall thickness while maintaining high U-value performance, proving its suitability for urban retrofits and new low-carbon construction alike.

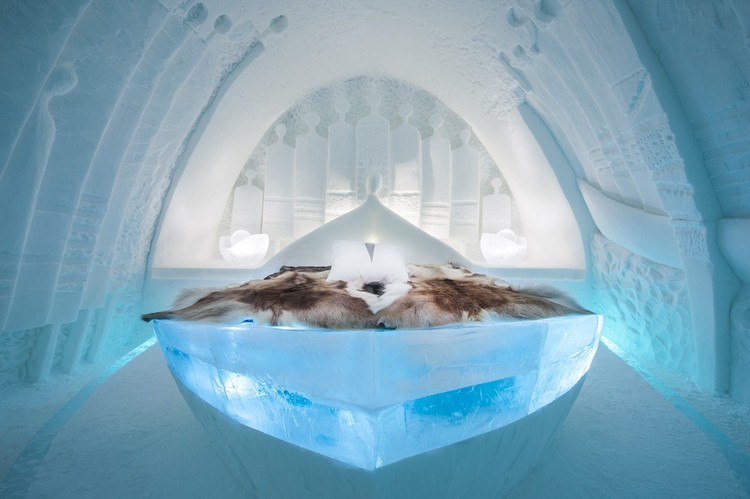

2. The Ice Hotel (Experimental Aerogel Panels), Sweden: In one of the coldest inhabited environments on Earth, aerogel-infused panels were tested as part of an experimental façade research project. The material’s stability in extreme sub-zero temperatures validated its potential for polar research stations, tourism architecture, and seasonal pavilions.
3. Pacific Northwest Passive House Retrofits, USA / Canada Aerogel blankets are already being used in North American passive house retrofits, particularly where internal space preservation and façade continuity are critical. By applying thin aerogel layers internally, designers achieved deep energy upgrades without sacrificing square footage or disturbing exterior heritage façades.
Limitations and Honest Boundaries
Despite its extraordinary potential, Aerogel is not yet a universal solution.
- Cost: It remains significantly more expensive than conventional insulation materials.
- Fragility: Panels and blankets require careful handling during installation to avoid damage.
- Limited Production: Manufacturing scale is still small, though increasing year by year.
- Overperformance for Mid-Tier Projects: It’s best suited for precision, high-performance envelopes rather than general construction.
However, as material innovation, demand, and economies of scale improve, these barriers are expected to decline sharply.
Why Aerogel Will Shape the Next Generation of Building Envelopes
Global construction is moving toward carbon-conscious, high-performance, and circular material systems. Regulations in Europe, North America, and Asia increasingly tie operational energy and embodied carbon directly to financial and compliance outcomes.
In this context, Aerogel stands out as a performance multiplier. It enables architects to design thinner, lighter, and more efficient envelopes that meet demanding energy codes while preserving spatial and aesthetic intent.
And when combined with engineered timber systems, modular sandwich panels, and adaptive façades, Aerogel can create the next generation of climate-responsive, low-carbon architectural assemblies — merging elegance with engineering precision.
Conclusion
Aerogel represents more than an insulation product — it signals a paradigm shift in how architecture approaches performance and material lightness. It allows us to design buildings that conserve energy not through mass, but through intelligence — where every millimetre of material is maximised for efficiency. In an era defined by net-zero targets, shrinking footprints, and adaptive envelopes, Aerogel is not science fiction anymore. It is quietly becoming the material reality of a lighter, smarter, and more resilient built environment.
FAQs
1. What is Aerogel in architecture?
Aerogel is a silica-based insulation material made up to 98% air, offering exceptional thermal resistance in ultra-thin layers — ideal for high-performance envelopes.
2. How efficient is Aerogel as insulation?
With thermal conductivity as low as 0.013 W/mK, Aerogel provides the highest insulation value per millimetre thickness of any known building material.
3. Where is Aerogel used in buildings?
It’s used in heritage retrofits, skylights, timber façades, modular offsite systems, and passive house refurbishments where thickness and weight are critical constraints.
4. What are the main advantages of Aerogel?
It combines ultra-thin insulation, fire resistance, hydrophobic behaviour, and daylight compatibility, making it ideal for light, breathable, high-performance envelopes.
5. What are Aerogel’s limitations?
Currently, Aerogel remains expensive, requires careful handling during installation, and is not yet mass-produced — though scalability is improving rapidly.
6. Why is Aerogel important for the future of design?
As net-zero mandates and embodied carbon regulations grow tighter, Aerogel offers a way to achieve extreme energy efficiency with minimal material and spatial footprint.
