Introduction
A balcony adds visual depth and usable outdoor space to a building’s façade. But among the various balcony types, cantilever balconies stand out for their clean, support-free appearance. By projecting outwards from the building without visible supports, a well-designed cantilever balcony feels like it floats. Yet achieving this effect safely requires careful structural design and detailing — especially in reinforced concrete or steel. In this guide, we’ll examine how cantilever balconies work, their key components, and four types of cantilever variants along with architectural pros and use cases.
Cantilever Balcony & Slab:
Image Credits: Shivani Chougula @Kaarwan
A true cantilever balcony behaves like a rigid beam extending from the internal slab or floor slab of the building. The moment at the junction (fixed support) must balance the bending and shear demands of the projected slab portion. In RCC (reinforced concrete) systems, the slab is extended backward into the building to provide counter-balancing moment. The slab is often thickened near the support edge, and heavy reinforcing (main bars) runs continuously from the balcony into the interior slab zone. Distribution and shear reinforcement (stirrups or bent-up bars) help resist shear near the support. A cantilever balcony assembly will include:
- Main reinforcement (tension bars) from interior to the tip
- Shear reinforcement near support
- Slab thickening or drop panel at the junction
- Waterproofing and protective screed on the balcony surface
- Crossbar Reinforcement to control deflection and torsion
- Balustrade anchorage details to transfer railing loads safely
- Control joints / expansion provision to relieve stresses from thermal movement
Types of Cantilever Balcony

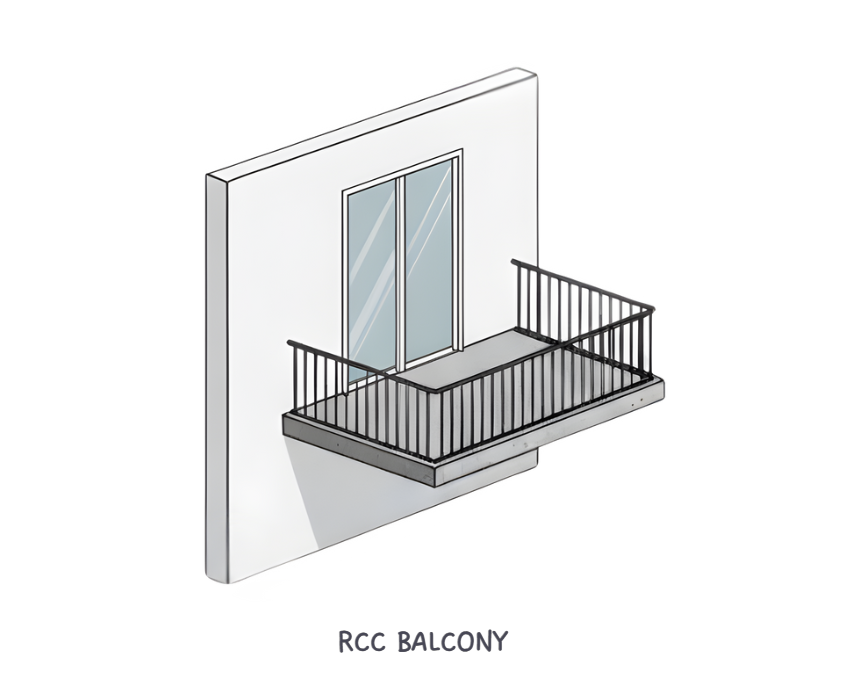

1. RCC Cantilever Balcony:
Image Credits: Shivani Chougula @Kaarwan
A classic concrete cantilever formed monolithically with the building’s floor slab. The balcony slab is continuous with the interior slab, with extra reinforcement and thickness near the support to resist bending stress. These are robust, durable, and offer design flexibility in shape and finish. Because of the structural continuity, they behave as one unit, minimizing differential movement. Ideal where the balcony depth is moderate (say up to 1.5 m or so depending on structural design). Aesthetically, they appear seamless and can be finished in tile, stone, or concrete.

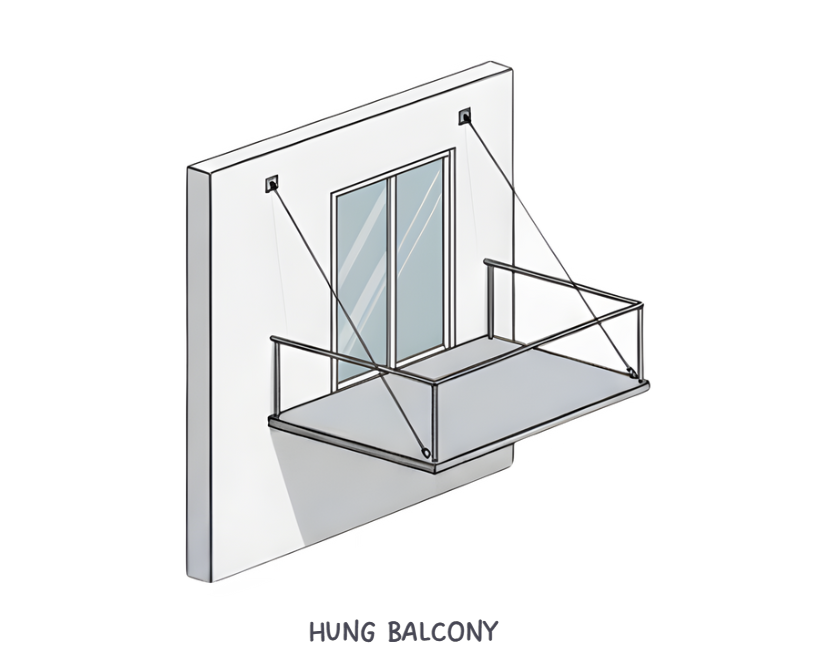

2. Hung Balcony:
Image Credits: Shivani Chougula @Kaarwan
Instead of purely relying on a cantilever, a hung balcony uses tension elements (steel rods or cables) from above to support part of the load. The cables anchor to stronger structural members overhead. This reduces the bending moment demand on the cantilever slab portion. In effect, the balcony is a hybrid — part cantilever, part suspension. Suitable when deep overhangs are desired but the cantilever moment would be too large. Visually, it can express lightness, with cables forming a subtle visual pattern.

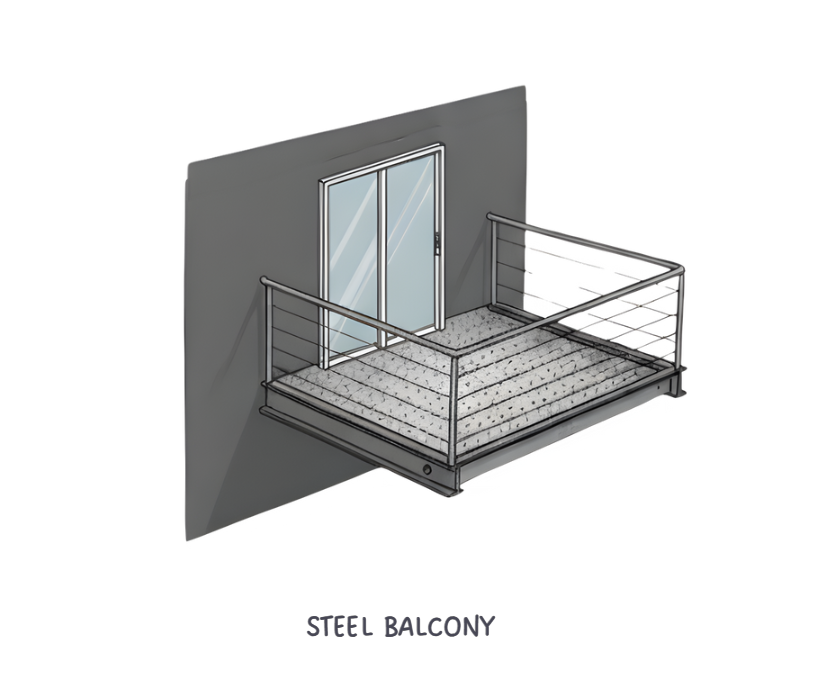

3. Steel Balcony:
Image Credits: Shivani Chougula @Kaarwan
Here, the cantilever is formed by steel beams or box sections projecting from the structure, and deck slabs (wood, composite, metal decking, or concrete topping) are placed over it. The steel beams are anchored into the main frame or slab, and deflection control is key. This system offers high strength-to-weight ratio and is ideal when you want slimmer structural profiles or lighter loads. Visually: exposed steel beams or hidden ones, and deck finishes can vary (timber planks, metal grating, composite decking). Good for contemporary, industrial-style architecture.

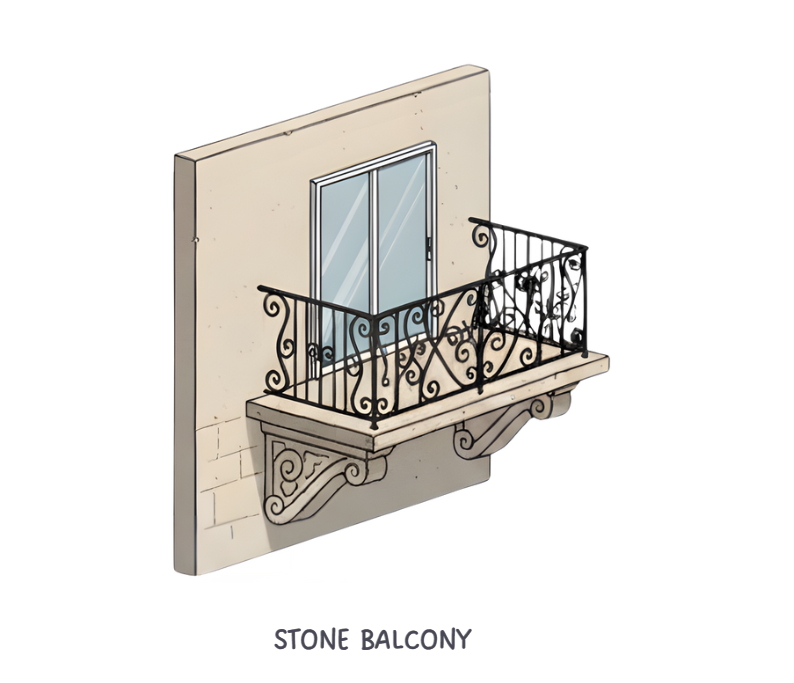

4. Stone Balcony:
Image Credits: Shivani Chougula @Kaarwan
These are rare in large spans but used in heritage or decorative buildings — stone slabs (granite, marble, or carved stone) projecting from structural support, with supports embedded deeply or cantilevered from masonry. Often combined with decorative wrought iron railings, corbels, or hidden steel backings. Their assembly requires careful detailing of anchorage and reinforcement (often concealed steel links or rods behind stone). Because stone is heavy and brittle, spans are shallow, and attention is needed to possible stresses, settlement, and water ingress. They convey timeless elegance and tie to traditional architecture.
Final Thoughts:
Cantilever balconies are expressive, functional, and elegant when designed carefully. Getting the structural balance, reinforcement detailing, waterproofing, and deflection control right is essential. Choosing between RCC, hung, steel frame, or stone types depends on span, load, architectural intent, and site constraints. When executed well, a balcony can float in air as an extension of interior space — a design statement as well as a functional element.
