Courtyard Design in Warm Humid Indian Climates: Insights from Tiruchirappalli Simulation Study

Courtyards have been an integral part of Indian architecture for centuries — a design response deeply rooted in climate, culture, and community. In warm and humid regions like Tiruchirappalli, they play an even more critical role: balancing temperature, enhancing air circulation, and fostering social interaction.

As contemporary practice embraces sustainability and performance-based design, architects are re-evaluating this age-old element through the lens of simulation and computational analysis — merging tradition with technology.

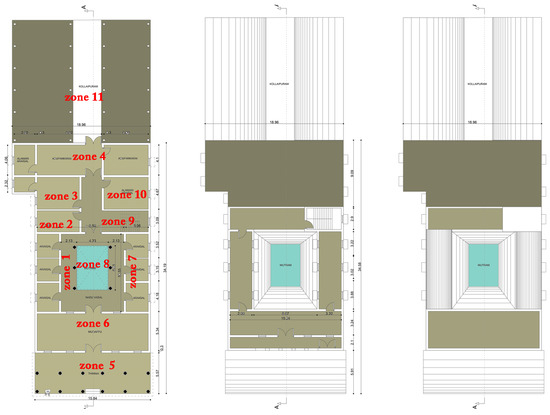

Image Source: Figure 8, Scenario 1: Details of selected samples - Floor plan of Case 1 (Chettinadu-style courtyard house) by the authors. From Simulating the thermal efficiency of courtyard houses: New architectural insights from the warm and humid climate of Tiruchirappalli City, India by R. Gunasekaran & R. S. Priya, Architecture, 5(2), 2025.https://doi.org/10.3390/architecture5020021x. © 2025 by the authors. Licensee MDPI, Basel, Switzerland. Licensed under CC BY 4.0

Understanding Courtyard Design in Warm Humid Climates

Warm humid climates are defined by high temperatures and high relative humidity, leading to discomfort and reduced indoor air quality if not carefully addressed. In such regions, architecture must allow air movement, minimise solar heat gain, and ensure daylight penetration without glare or overheating.

The courtyard, when positioned and proportioned effectively, becomes a passive cooling mechanism — enabling stack ventilation, evaporative cooling, and a visual connection to nature.

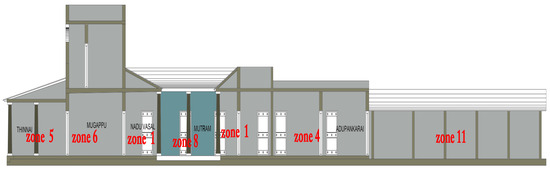

Image Source: Figure 9, Scenario 1: Details of selected samples - Section view of Case 1 (Chettinadu-style courtyard house) by the authors. From Simulating the thermal efficiency of courtyard houses: New architectural insights from the warm and humid climate of Tiruchirappalli City, India by R. Gunasekaran & R. S. Priya, Architecture, 5(2), 2025.https://doi.org/10.3390/architecture5020021x. © 2025 by the authors. Licensee MDPI, Basel, Switzerland. Licensed under CC BY 4.0

Simulation Study: Tiruchirappalli Case

A recent simulation study conducted in Tiruchirappalli explored how variations in courtyard geometry affect microclimatic comfort. Using computational tools like Autodesk CFD and DesignBuilder, researchers modelled different courtyard shapes and aspect ratios to analyse air movement and temperature gradients.

The results revealed that:

• Optimal courtyard width-to-height ratio (W/H) significantly impacts thermal comfort. Ratios between 1:1 and 1.5:1 provided the best balance of shading and ventilation.
• Orientation plays a key role — north-south aligned courtyards reduce solar gain during peak hours.
• Vegetation and water features enhance evaporative cooling, reducing courtyard temperature by up to 3–4°C.
• Surface materials influence heat retention — lighter, porous materials improve night-time cooling.

Such data-driven insights confirm what traditional builders understood intuitively — form, material, and microclimate must work in harmony.

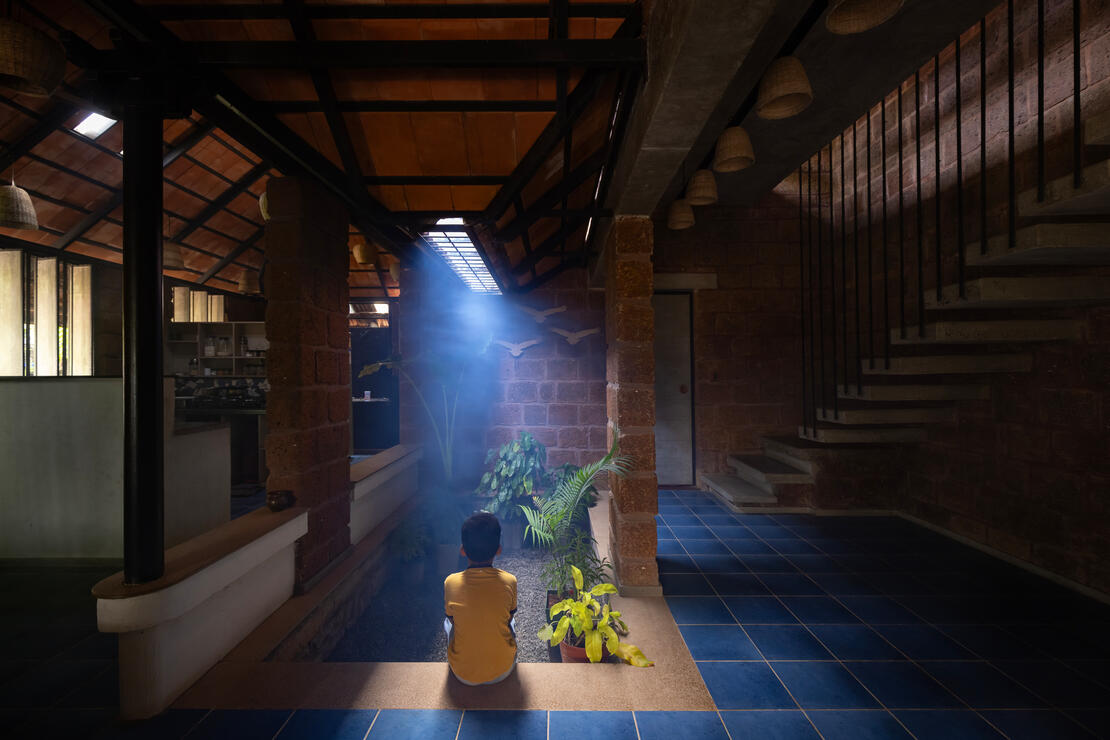

Image Source: Bhoomija Creations, Project: Dyuthi for Sudheesh at Kolazhy, Thrissur

From Vernacular Wisdom to Modern Simulation

Traditional homes in Chettinad, Kerala, and Tamil Nadu used courtyards not only as climatic buffers but as social and spiritual centres. Today, architects reinterpret this wisdom using computational design tools, which allow them to test multiple configurations quickly and efficiently.

By simulating airflow, daylight, and thermal patterns, professionals can fine-tune spatial design before construction — an essential step towards net-zero and climate-responsive buildings.

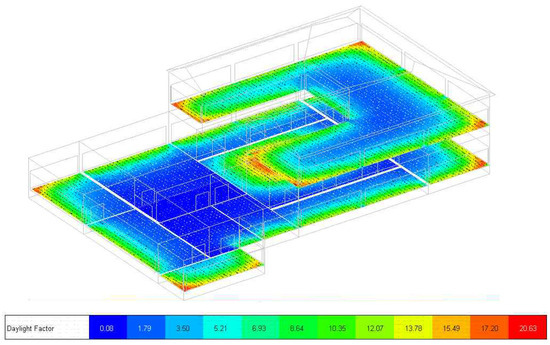

Image Source: Figure 24, Daylight of Courtyard - Daylight simulation for Case 1. Source (author using DesignBuilder). From Simulating the thermal efficiency of courtyard houses: New architectural insights from the warm and humid climate of Tiruchirappalli City, India by R. Gunasekaran & R. S. Priya, Architecture, 5(2), 2025.https://doi.org/10.3390/architecture5020021x. © 2025 by the authors. Licensee MDPI, Basel, Switzerland. Licensed under CC BY 4.0

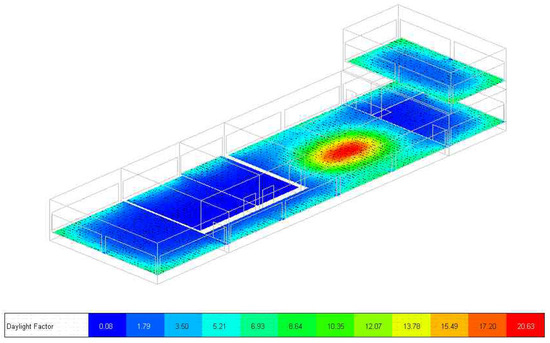

Image Source: Figure 25, Daylight of Courtyard - Daylight simulation for Case 2. Source (author using DesignBuilder). From Simulating the thermal efficiency of courtyard houses: New architectural insights from the warm and humid climate of Tiruchirappalli City, India by R. Gunasekaran & R. S. Priya, Architecture, 5(2), 2025.https://doi.org/10.3390/architecture5020021x. © 2025 by the authors. Licensee MDPI, Basel, Switzerland. Licensed under CC BY 4.0

Urban Implications: Courtyards Beyond the Home

The lessons extend beyond residential architecture. Educational, healthcare, and community buildings in warm, humid cities increasingly incorporate courtyards as cooling nodes and social lungs.

In schools, they become safe, shaded play areas; in hospitals, healing courtyards improve patient well-being. Urban planners too are reimagining courtyard typologies at the neighbourhood scale — using them as microclimate regulators amidst dense urban fabrics.

Image Source: Figure 19, Ventilation of Courtyard - CFD simulation of natural ventilation section A in Case 1. From Simulating the thermal efficiency of courtyard houses: New architectural insights from the warm and humid climate of Tiruchirappalli City, India by R. Gunasekaran & R. S. Priya, Architecture, 5(2), 2025.https://doi.org/10.3390/architecture5020021x. © 2025 by the authors. Licensee MDPI, Basel, Switzerland. Licensed under CC BY 4.0

Challenges and Design Considerations

Despite their advantages, courtyard designs demand thoughtful integration. Common challenges include:

• Overexposure to rain and humidity during monsoons.
• Inadequate shading or proportion, leading to overheating.
• Poor maintenance, resulting in stagnant air or water.

Simulation tools and BIM-based coordination can pre-empt these issues by validating design choices early — ensuring aesthetic and functional performance align.

When Nature Becomes Design Partner

Courtyard architecture teaches an essential lesson: climate-responsive design is timeless. By merging simulation technologies with traditional typologies, architects can rediscover the value of local wisdom while meeting global sustainability standards.

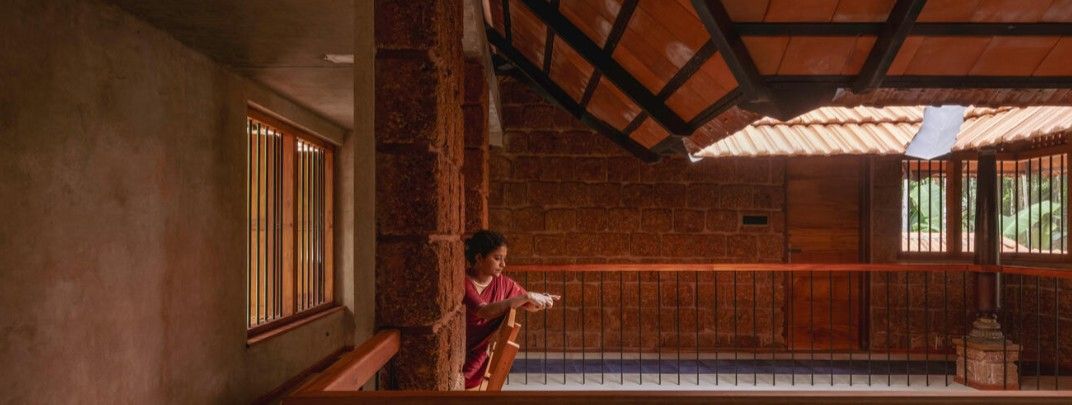

Image Source:  https://sarathavilas.com/mansion/

The Tiruchirappalli study proves that courtyard design in warm, humid climates is not a nostalgic pursuit — it’s a scientifically validated, sustainable solution for India’s future architecture.

Till now, Kaarwan has empowered over 44,600+ AEC professionals to bring traditional wisdom and modern tools together — exploring climate-conscious design through affordable, hands-on masterclasses. If you want to learn how BIM, Rhino, and Grasshopper can simulate and optimise climate-responsive design, join our 1-day masterclass or advanced certification program to see how technology can enhance natural harmony.

FAQs:

Why are courtyards important in warm, humid climates?

They promote cross ventilation, reduce heat gain, and create shaded spaces that enhance comfort.

How does simulation help in courtyard design?

Simulation tools analyse airflow, temperature, and sunlight, allowing designers to test variations for optimum comfort.

What is the ideal courtyard proportion?

A width-to-height ratio of 1:1 to 1.5:1 generally balances shading and ventilation.

How can BIM support passive design?

BIM helps coordinate material data, shading devices, and airflow simulations for climate-responsive design.

Can students learn to use these tools easily?

Yes — Kaarwan’s masterclasses introduce essential simulation workflows, making them accessible even to beginners.

References:

Gunasekaran, R., & Priya, R. S. (2025). Simulating the Thermal Efficiency of Courtyard Houses: New Architectural Insights from the Warm and Humid Climate of Tiruchirappalli City, India. Architecture, 5(2), 21. https://doi.org/10.3390/architecture5020021

Patil, D. R. (2025). Re-imagining vernacular courtyard logic in contemporary architectural engineering: towards climate-responsive design in the Indian context. Journal of Umm Al-Qura University for Engineering and Architecture. https://doi.org/10.1007/s43995-025-00231-z
