How to allot space for Plumbing Pipes and Services in a Residential Society?

If you’ve ever walked through the service shaft of an old housing project, you’ll know — plumbing is the quiet backbone of good design. It rarely gets the spotlight, but it’s the system residents live with every day.

From foul smells creeping through ducts to maintenance teams breaking walls just to access a leak — most of these problems don’t come from bad plumbing, but from poor spatial planning.

An experienced architect learns this the hard way — and plans for it early. Here’s how architects and designers can plan smarter when allocating space for plumbing pipes and services in housing projects.

1. Start with Dedicated Shafts — Spacious, Accessible, and Safe

The plumbing shaft is the spinal column of a building’s services. Always allocate adequate shaft sizes — not just enough for pipes, but for human access during maintenance.

• Keep shafts wide enough for plumbers to enter safely.
• Ensure proper ventilation to avoid trapped moisture and suffocation.
• Install bird mesh or covers to prevent pigeons and pests from nesting — a common hygiene issue in residential societies.
• Use non-corrosive grilles and damp-proof coatings to prevent water-related deterioration.

A well-designed shaft ensures maintenance teams can work without disturbing residents — or damaging interiors.

2. False Ceilings: Design for Access, Not Just Aesthetics

False ceilings often become service zones for plumbing, electrical, and HVAC lines. However, architects must detail them for easy accessibility.

• Avoid fully sealed POP ceilings over service areas.
• Instead, use modular or removable ceiling panels.
• Plan for inspection hatches near valves and junctions.
• Label ceiling panels discreetly for maintenance clarity.

Aesthetics should never come at the cost of access. A removable ceiling saves hours of demolition later.

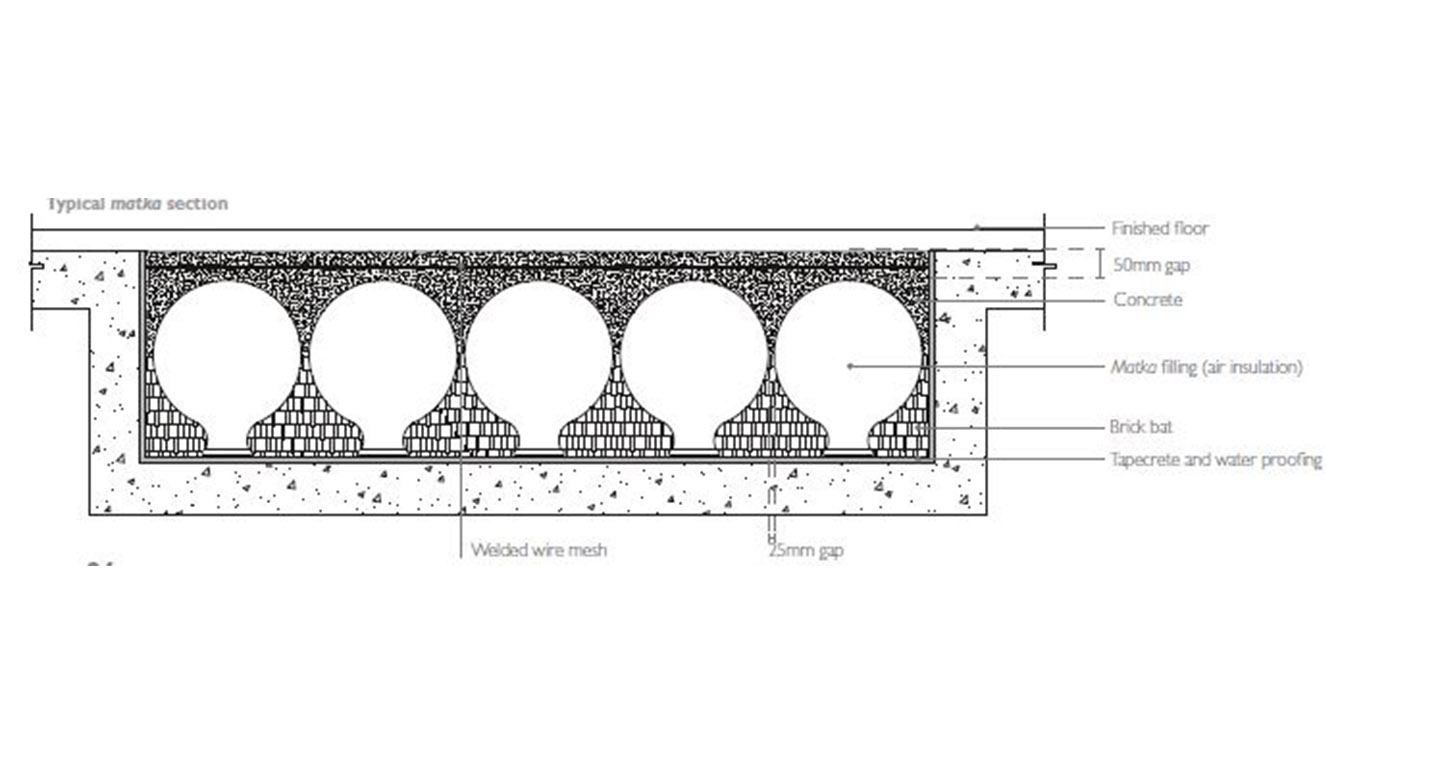

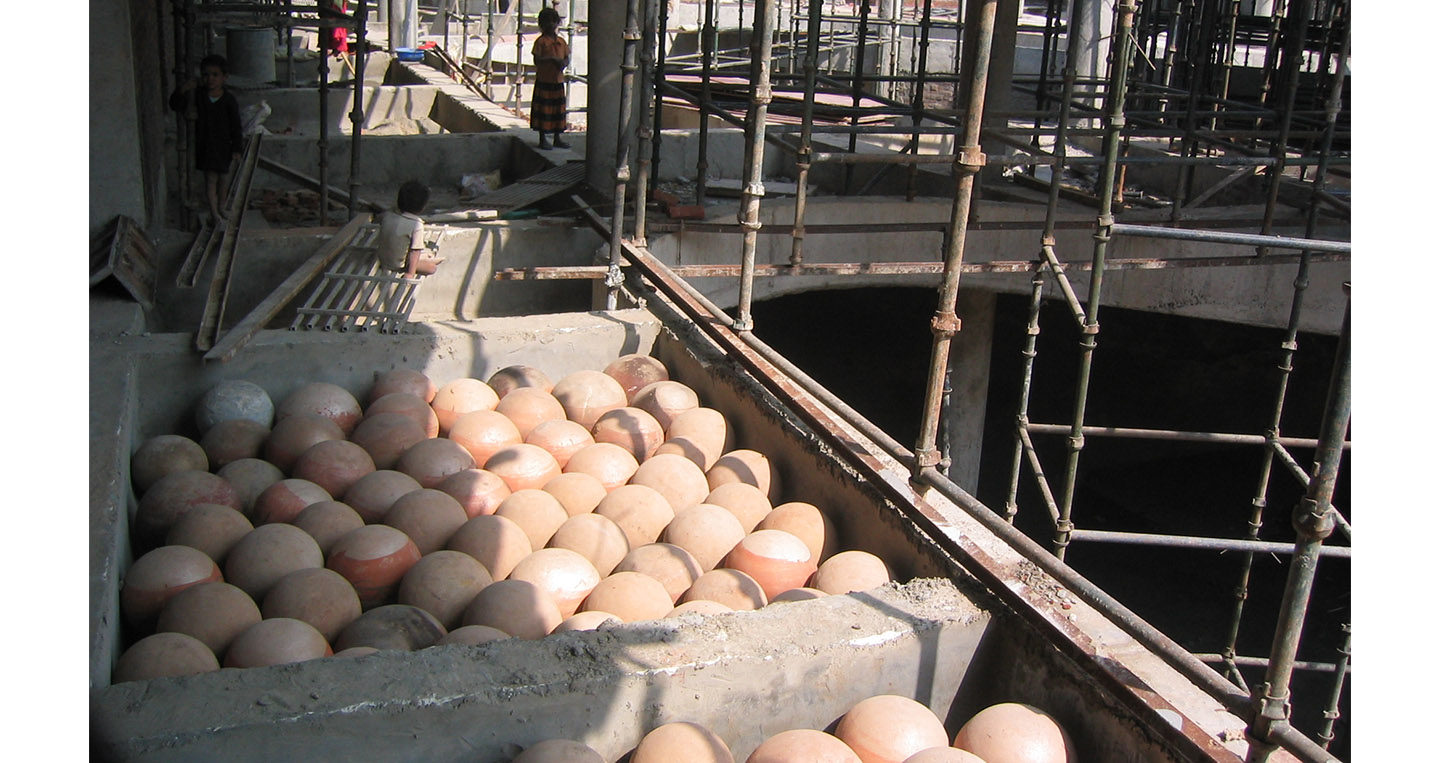

3. Heard About “Matka Filling”? — Think Beyond Pipes

In many traditional systems, matka filling tanks were used to store and naturally cool water. While modern projects rely on overhead RCC tanks, the concept of thermal moderation still matters.

Architects can integrate insulated overhead tanks or use terracotta cooling elements to reduce water temperature — especially in tropical climates. This merges sustainability with occupant comfort.

Traditional techniques often hold valuable lessons for modern water management.

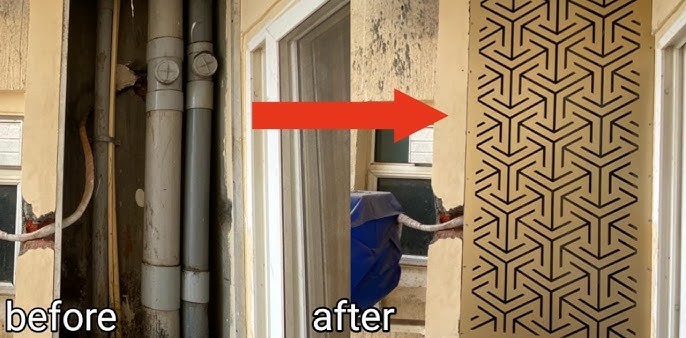

4. Hiding Pipes — With Maintenance in Mind

Every architect loves clean walls — but hidden doesn’t mean unreachable.

When concealing plumbing pipes, ensure:

• Inspection panels are integrated into wall finishes.
• Vertical risers have accessible shaft doors every few floors.
• Use PVC or CPVC covers that can be unscrewed instead of permanently plastered.

Always design with the next repair in mind. Accessibility today prevents demolition tomorrow.

5. Keep Plumbing Layouts Ventilated and Hygienic

Water stagnation, odor, and mildew often come from poor ventilation in shafts and service ducts. To prevent this:

• Provide cross-ventilation grills in plumbing ducts.
• Use exhaust fans for large shafts or basement service zones.
• Avoid locating shafts adjacent to bedrooms or living spaces — buffer them with ducts or corridors.

Services must breathe — so the building can stay healthy.

6. Plan Wet Zones Vertically

While designing multi-storey housing, stack all wet areas (toilets, kitchens, utility) vertically. This optimises pipe routes and minimises leaks.

Also:

• Align plumbing cores early in the design phase.
• Avoid running horizontal waste lines longer than necessary.
• Keep a minimum slope (1:40) for drainage runs to prevent blockages.

A well-coordinated plan reduces both plumbing costs and future headaches.

7. Use Modern Fittings and Smart Solutions

Technology is quietly revolutionizing plumbing services. Incorporate innovations like:

• Smart leak detectors that alert maintenance before water damage spreads.

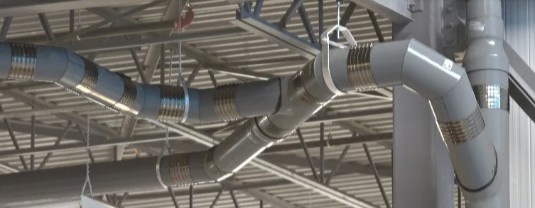

• Acoustic insulation sleeves for pipes near bedrooms.
• Pre-fabricated plumbing walls (common in modular housing) that save installation time.
• Recycled greywater systems for landscaping or flushing use.

Smart detailing today makes your project sustainable tomorrow.

8. Collaboration Is Key — Talk to Your MEP Engineer Early

Architects often finalize spaces before MEP coordination begins — leading to cramped shafts and conflicts. Instead:

• Involve plumbing consultants during the concept stage.
• Overlay plumbing, structural, and electrical drawings regularly.
• Maintain clear height requirements under beams for service runs.

Good detailing happens when architecture and engineering speak early.

9. Maintenance Access — The Hidden Priority

Every good design ends where maintenance begins. Provide:

• Lockable service corridors for staff.
• Washable floor finishes near shafts.
• Adequate lighting for maintenance zones.

A service-friendly design increases the building’s life and reduces resident complaints — something every housing society manager values.

10. Detail with Hygiene, Longevity, and People in Mind

Architectural detailing for plumbing isn’t just technical — it’s social. Clean, accessible, and thoughtful layouts ensure a better living experience for residents and easier upkeep for teams.

Good service design is invisible — until it fails. Great design ensures it never does.

Be on the lookout for Kaarwan's upcoming MEP Design Workshop, sign in for our free resources and save time with a scattered search of resources, information, blocks and much more.

FAQs

Q1. What is the ideal size for a plumbing shaft?

It depends on the number of pipes and floors — ensure at least 600–900 mm width for safe access.

Q2. Why should false ceilings be removable?

For easy inspection, leakage repair, and long-term maintenance access.

Q3. What is matka filling in plumbing?

An old technique of using earthen pots for natural cooling and filtration in water storage.

Q4. How can architects hide pipes without losing accessibility?

By using inspection panels, removable covers, or service walls.

Q5. What’s the biggest mistake in plumbing design?

Ignoring accessibility and ventilation — leading to costly retrofitting later.
