Plumbing Layout and Symbols:
Plumbing layouts form the backbone of building services, ensuring clean water supply, efficient drainage, and hygienic waste management across every space. In architectural drawings, these systems are represented using a clear set of symbols, line types, and annotations so that designers, contractors, and plumbers can coordinate precisely during construction. A well-planned plumbing layout not only prevents future leaks and maintenance issues but also improves water efficiency, safety, and overall functionality of a building. This blog breaks down how plumbing supply lines, drainage lines, and essential symbols work together to create a coherent and reliable system.
1. Water Supply Line Layout

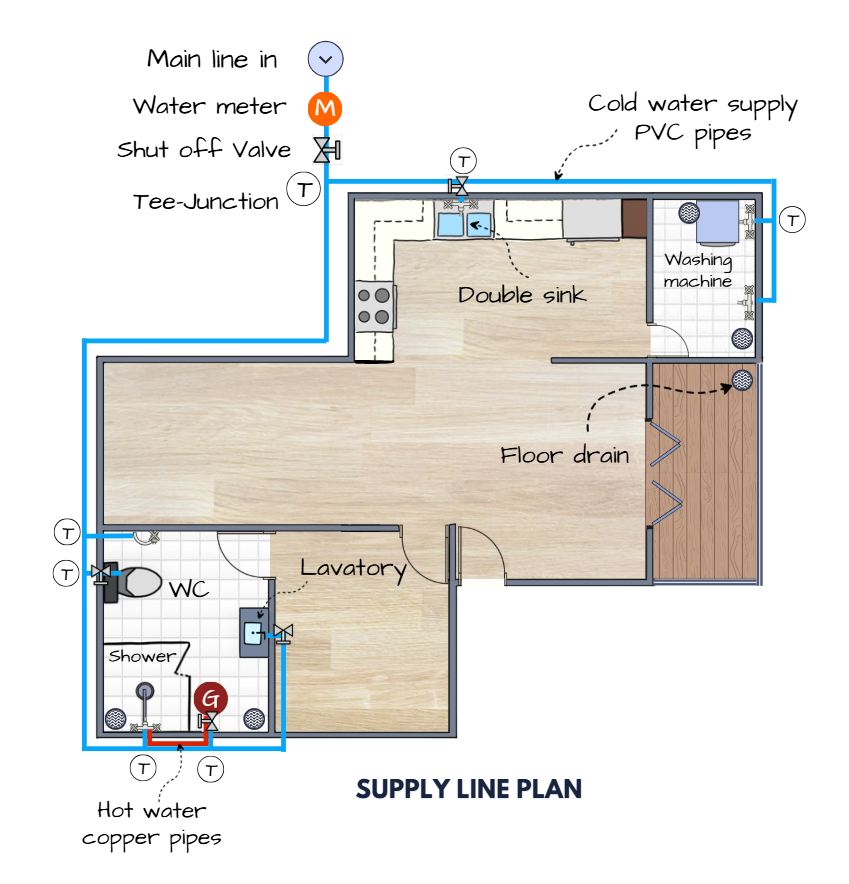

Image Credits: Shivani Chougula @Kaarwan
A water supply layout illustrates how fresh water enters the building, splits into various branches, and reaches all fixtures. The system typically begins at the main supply line, which connects to the property boundary and passes through a water meter to measure consumption. Immediately after, a shut-off valve is provided to allow complete isolation of supply during maintenance or emergencies.
The supply network branches out using T-junctions to deliver water to individual fixtures. Cold water lines are commonly run using materials such as CPVC, UPVC, or PPR pipes, chosen for durability and resistance to corrosion. For hot water systems, the supply line diverts to a geyser connection, where heat-resistant piping—often CPVC or multilayer composite pipes—carries the heated water to bathrooms and kitchens. Throughout the layout, vertical risers, wall chases, and concealed runs are planned to reduce pipe length, avoid sharp bends, and maintain pressure balance. Floor drains are also positioned within wet areas to ensure efficient removal of surface water, contributing to an overall reliable and well-distributed supply network.
2. Drainage Line Layout

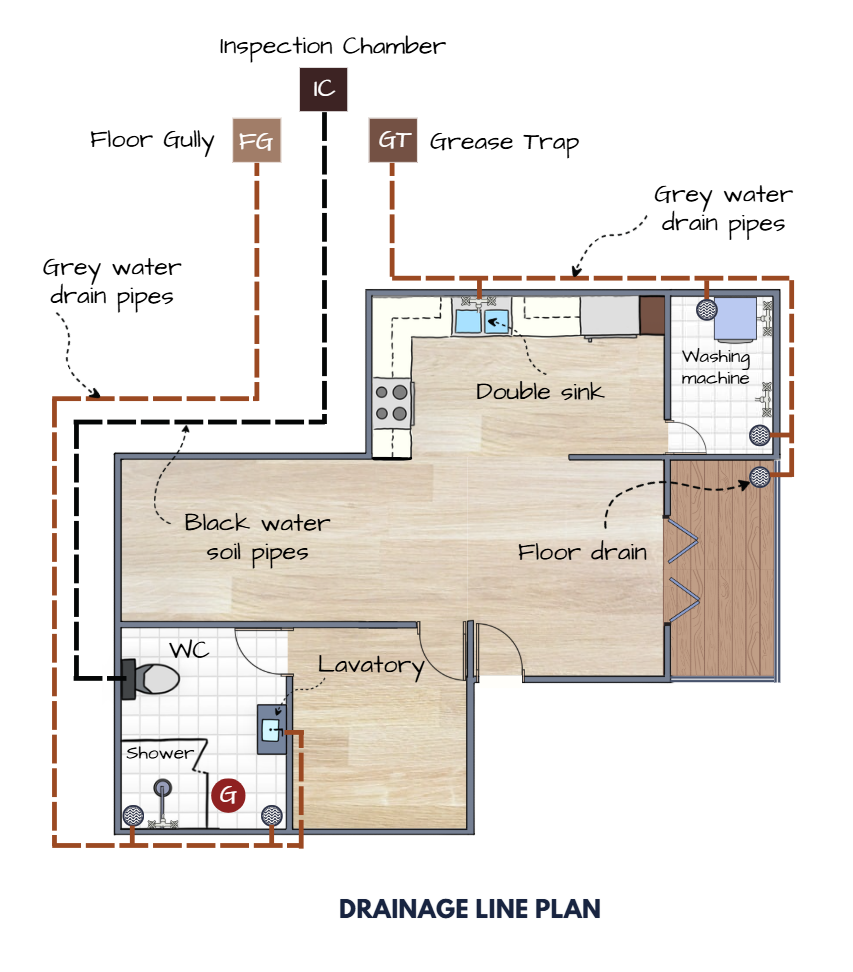

Image Credits: Shivani Chougula @Kaarwan
Drainage systems rely on gravity flow, proper slopes, and strategically placed traps to carry wastewater safely out of the building. The design separates flow into three key categories:
- Kitchen/utility grey water
- Bathroom grey water
- Black water from toilets
These flows are routed through purpose-specific components—grease traps, gully traps, and inspection chambers—to prevent blockages, maintain hygiene, and simplify maintenance.
Grey Water from Kitchen: Grease Trap
Kitchen drainage contains oil, grease, and food particles that can harden inside underground lines. A grease trap is placed near the kitchen outlet, where it slows down the wastewater, allowing grease to float and solids to settle. Only filtered grey water proceeds to the main drainage line, protecting the system from clogs and reducing maintenance frequency.
Grey Water from Bathrooms: Gully Trap
Bathroom waste—containing soap, dirt, and hair—flows into a gully trap, typically located outside the bathroom. This trap features a water seal that blocks foul odours from escaping and captures small debris before routing the grey water to the main pipeline. It enhances sanitation and reduces the risk of downstream blockages.
Black Water from Toilets: Inspection Chamber
Black water travels through a separate, larger pipe system due to solid waste load. It is directed into an inspection chamber, a key access point used for checking and cleaning the sewer line. This chamber collects multiple drainage branches and leads them toward the main municipal sewer or septic tank, ensuring efficient flow and easy maintenance access.
3. Plumbing Symbols and Efficient Representation

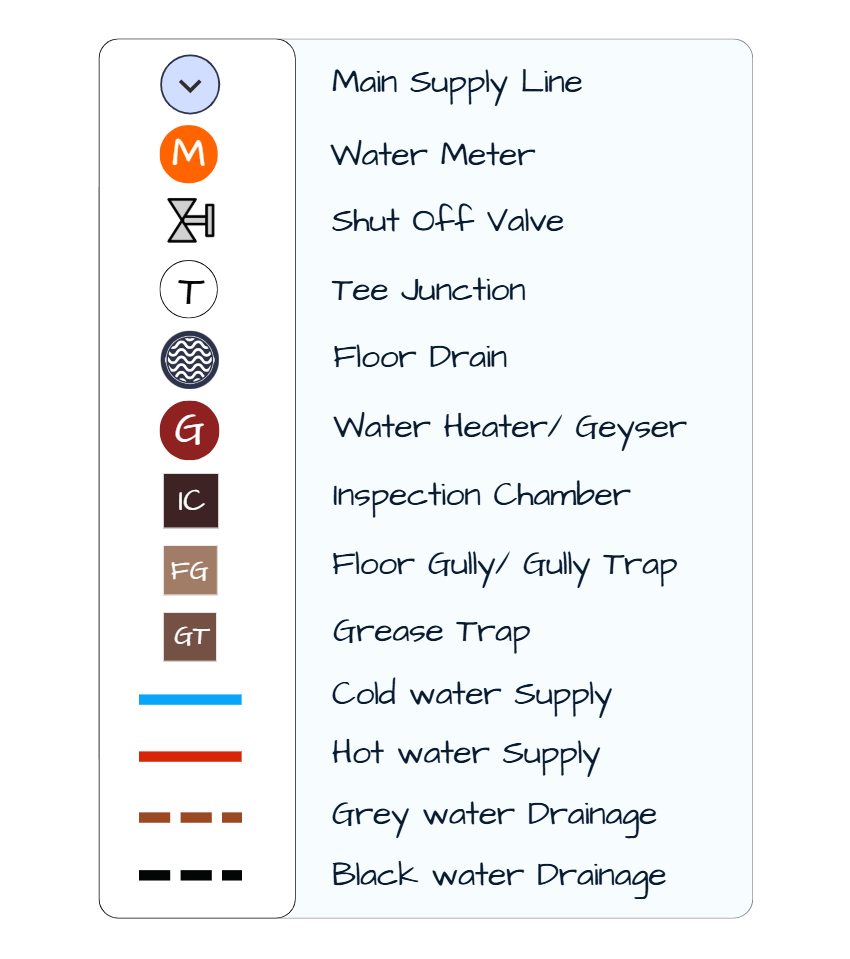

Image Credits: Shivani Chougula @Kaarwan
Accurate plumbing plans depend on consistent use of standard plumbing symbols for supply lines, drainage lines, traps, valves, vents, and fixtures. Line types differentiate cold water, hot water, and main supply paths. Symbols for WCs, sinks, floor traps, geysers, gully traps, grease traps, and inspection chambers help contractors read the drawing efficiently. Adding a clear legend, directional arrows, pipe sizes, and annotation notes helps prevent execution errors on site. Correct representation ensures every stakeholder—from architect to plumber—understands pipe routing, maintenance points, and fixture locations instantly.
Final Thoughts:
A thoughtfully designed plumbing layout integrates supply, drainage, and accurate symbolic representation into a unified system that supports efficient building performance. When planned correctly, it improves water flow reliability, ensures sanitary waste disposal, reduces maintenance needs, and enhances user comfort. Clear drawings, correct symbols, and logical routing together lead to long-lasting, high-quality plumbing systems in architectural design.
