Let me be honest: the first time I heard about Grasshopper data trees, I felt totally overwhelmed. If you’ve tried using Grasshopper for Rhino, you might’ve had the same experience—like you’re suddenly dealing with this abstract concept that throws off an otherwise smooth, visual workflow.

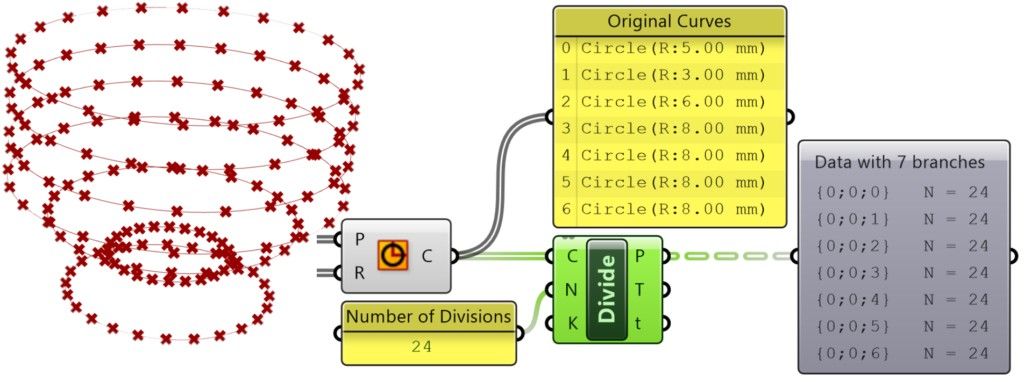

Image Credit: BIM Corner
But here’s what I’ve learned after countless late-night experiments: once you get data trees, your parametric design projects become way easier to handle. In this guide, I’ll walk you through the basics in my own words. By the end, I hope you’ll feel confident enough to dive into any project that requires these little branches and paths. Whether you’re just exploring computational design for the first time or fine-tuning your existing workflow, I’ve got some tips that helped me get the hang of it.
What Are Grasshopper Data Trees?
Grasshopper usually deals with lists. That’s straightforward enough. But in architectural or design work, you’ll often need nested lists. And that’s where data trees step in.
Also read: An introductory guide to Grasshopper's visual programming.
In my mind, a data tree is a lot like an old-school filing cabinet. Each “branch” is a separate folder, and inside each folder, you’ve got your actual items (the data). It’s a simple analogy, but it helps me keep track of why data trees are more than just fancy lists.
Three Things to Know About Data Trees
- Path Index This is like the label on each folder. In Grasshopper terms, you might see {0;1} or {2;0;3}. It shows where each piece of data belongs.
- Branches The folders themselves. Each branch can hold a group of items that belong together.
- Items The individual pieces of data inside each branch. Think of them as the actual documents in your folder.
I still remember the day it finally clicked for me. I was trying to design a facade system with different panels. Without data trees, I had this chaotic, super-long list of panels. Every time I wanted to tweak one panel group, I had to filter everything out. Total headache. With data trees, each group of panels stayed neatly organized. Suddenly, I didn’t have to fight Grasshopper just to make changes.
Also read: The Ultimate Guide to Grasshopper Logic and Algorithms
Why Are Data Trees Important in Architecture?
I like to think of data trees as the backstage crew for complex projects. They keep everything moving smoothly, but you don’t really notice them until something goes wrong.
In Grasshopper Architecture, data trees help me handle:
- Facade designs with unique panel layouts
- Structural analysis for complicated truss systems
- Urban planning where each building mass might need separate logic
- Vastu analysis, for folks who apply ancient vastu architecture principles to modern design
- Material assignments where each building component might use a different material
Basically, if you’re juggling a million parameters—like I often do—data trees keep it all from collapsing into confusion.
Working with Data Trees: A Hands-On Approach
Image Credit: Shape Diver
Let me share a simple example that helped me understand the idea of data trees when I was first getting started.
Also read: Rhino & Grasshopper 101: Essential Skills for Beginners
Example: Building a Grid of Point
1. Flat List of Points
I placed a Series component in Grasshopper to generate a list of numbers. Then I connected it to a Construct Point component. This gave me one basic list of points—nice and simple.
2. Nested Lists for a 2D
Grid To create a 2D grid, I added a second Series and fed them both into a Cross Reference component. Suddenly, I had a nested list—a data tree—instead of just one list.
3. Visualizing the Tree
To visualize the tree, I threw in a Param Viewer and saw how the points were grouped in branches. That’s when the light bulb went off—each group of points had its own “folder.”
(I vividly remember thinking, “Oh! That’s how people keep track of bigger geometry sets.”)
Also read: How Parametric Architecture is Changing the Way We Build?
Real Architectural Uses
Once you have data trees, you can do all sorts of neat things:
- Apply different offsets to each row of a facade.
- Group elements for materials or shading devices.
- Build adaptive structural grids that change shape based on certain rules.
You name it. If it involves managing different sets of geometry, data trees can help you stay organized.
Common Data Tree Operations
If I had to pick the “Top Five” operations that every Grasshopper training session should cover, these would be it:
- Flatten
Combines all branches into one big list. Helpful when you’re done with complexity and just need everything in a single pile. - Graft
Splits items so each one sits in its own branch. Perfect when you need to treat every item independently. - Simplify
Cuts down on extra folder levels in your tree. The Simplify component keeps your structure from getting cluttered. - Path
Mapping Lets you rearrange or rename the branches. Try Replace Path or Shift Paths if you want to tidy up or reorganize your folders. - Merging & Splitting
Merge combines multiple data trees. Explode Tree splits one tree into separate outputs.
Tip: If you’re ever confused, create a small test file and connect a Param Viewer to see exactly what’s happening. That’s usually how I catch mistakes early.
Also read: Top 10 Must-Know Plugins for Rhino and Grasshopper
Best Practices for Managing Data Trees
Here are some lessons I learned the hard way:
- Use Param Viewer often. It’s your map. Don’t fly blind.
- Watch your data matching. If two components expect different branch structures, you can get bizarre results.
- Label branches or use notes. This keeps you (and your future self) from tearing your hair out later.
- Start with small tests. No point in messing up a huge file when you can troubleshoot on a tiny example.
- Don’t over-graft. Too many branches can be as bad as none.
Conclusion
In the beginning, Grasshopper data trees seemed like a puzzle I’d never solve. But once I realized each branch is like a labeled folder, everything changed. Now, I rely on them almost daily—whether I’m working on a complex facade or an experimental structural design.
If you’re curious to dig a little deeper, I recommend enrolling into a more advanced Grasshopper Course. They’ll show you how far you can really push these ideas. And trust me, it goes way beyond just grids of points.
Visit our website Kaarwan for more!
FAQs
1. What is a Grasshopper data tree?
It’s a structured way of storing nested lists in Grasshopper. Instead of one flat list, you get multiple branches that organize your data more clearly.
2. Why are data trees important for architecture?
They let you manage complex design tasks—like different facade panels or structural elements—without turning your model into one giant, disorganized list.
3. How do I see my data tree structure?
Use the Param Viewer component. It shows each branch and the items inside it.
4. What’s the difference between Flatten and Graft?
- Flatten merges everything into a single list.
- Graft puts each item into its own branch.
5. Where can I learn more about computational design?
I’ve found Kaarwan’s parametric design and vastu shastra course especially helpful for taking my Grasshopper skills to the next level.
