Stone masonry is one of the oldest and most enduring methods of wall construction in architecture — a technique that combines craft, structure, and material honesty. Whether used in ancient forts or modern façades, stone walls express permanence and connection to the earth. The strength and character of masonry depend on the way stones are shaped, placed, and bonded. From precisely cut ashlar walls to rugged gabion cages, each masonry type reflects a distinct approach to form, technique, and purpose. This article explores five primary types of stone masonry construction used in architecture today — ashlar, rubble, drystone, gabion, and stone veneer — analyzing their assembly, construction logic, and architectural suitability.

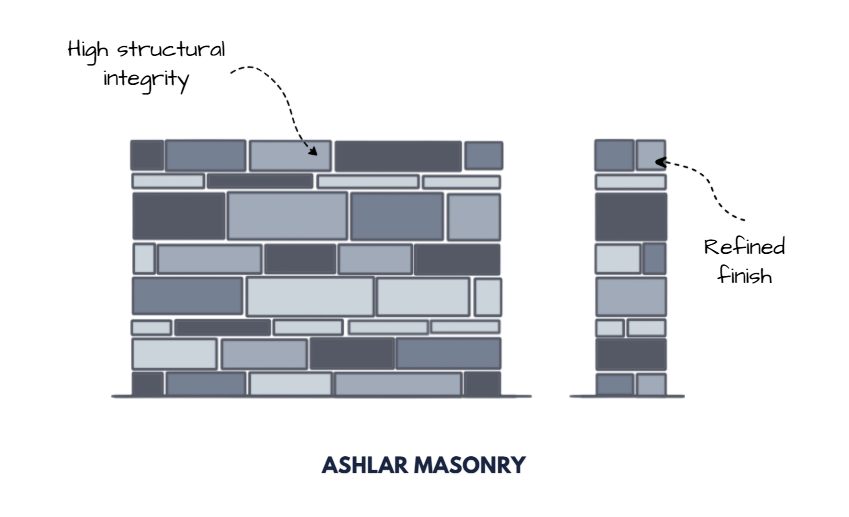

1. Ashlar Masonry
Image Credits: Shivani Chougula @Kaarwan
Ashlar masonry represents the most refined and precise form of stone wall construction. In this technique, stones are carefully cut, dressed, and squared to uniform dimensions, creating tightly fitted joints with minimal mortar. Coursed ashlar masonry arranges these stones in continuous horizontal layers, resulting in a clean and formal appearance. This method requires skilled workmanship and is typically used in monumental, civic, or institutional buildings where aesthetics and precision matter. Structurally, ashlar walls offer excellent load-bearing strength due to their uniform contact surfaces and dense packing. The smooth finish and precise jointing also make them resistant to weathering and moisture ingress. Commonly seen in classical and colonial architecture, ashlar masonry adds a sense of order, durability, and craftsmanship to façades, columns, and retaining walls.
2. Rubble Masonry
Image Credits: Shivani Chougula @Kaarwan
Rubble masonry uses undressed or roughly shaped stones that are irregular in form and size, laid together with wide joints filled with mortar. Random rubble masonry — the most common type — arranges these stones without continuous courses, creating a rugged and natural texture. This technique is cost-effective since it makes use of locally available stone without extensive cutting. Though less precise than ashlar, rubble masonry provides substantial strength and thickness, making it suitable for rural, boundary, or retaining walls. In traditional architecture, it’s often used for load-bearing structures in hilly or rocky regions. The irregular gaps are bonded with rich mortar, sometimes supplemented with through-stones for stability. The rough surface of rubble masonry gives buildings an earthy and contextual character, blending well with natural landscapes.
3. Drystone Masonry
Image Credits: Shivani Chougula @Kaarwan
Drystone masonry is a mortarless construction technique where stones are stacked and interlocked solely by their weight and shape. Each stone is carefully chosen and placed to maximize stability, often with smaller packing stones filling the gaps. Despite lacking mortar, well-constructed drystone walls can last for centuries — a testament to their ingenious balance of gravity and geometry. The technique is widely used in retaining walls, garden terraces, boundary enclosures, and rural constructions where drainage and flexibility are crucial. Structurally, drystone walls are self-draining and can adjust to minor ground movements without cracking, making them resilient in seismic or frost-prone areas. Architecturally, they convey a tactile, timeless quality and celebrate the inherent logic of the material — pure stone, laid with craft and care.

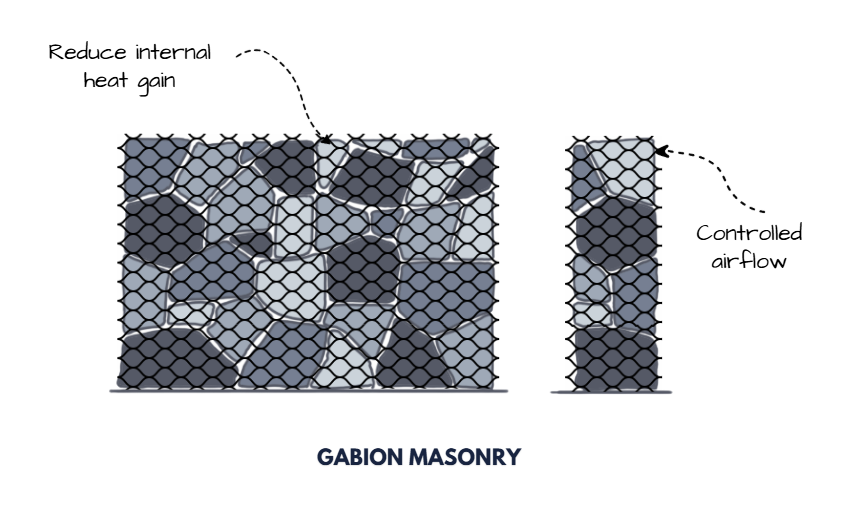

4. Gabion Masonry
Image Credits: Shivani Chougula @Kaarwan
Gabion masonry combines modern engineering with the raw expressiveness of stone. It consists of stones packed inside wire mesh cages (gabions), which are then stacked to form retaining or façade walls. The mesh, typically made of galvanized or PVC-coated steel, holds the stones in place while allowing water to pass through, reducing hydrostatic pressure and improving stability. Gabion walls are commonly used in landscape architecture, flood control, and slope stabilization, but have increasingly found architectural applications for façade screening and noise barriers. They are quick to assemble, require minimal foundation, and make efficient use of irregular or locally available stone. The visual texture of gabions — a blend of industrial and natural — creates a striking aesthetic balance between structure and landscape. Additionally, their permeable and flexible nature makes them eco-friendly and low-maintenance over time.
5. Stone Veneer
Image Credits: Shivani Chougula @Kaarwan
Stone veneer represents the modern evolution of masonry — achieving the appearance of solid stone with far less weight and material. In this technique, thin slices of natural or manufactured stone are applied to a substrate such as concrete, brick, or metal panels using mechanical anchors or adhesives. While not load-bearing, stone veneer provides the aesthetic warmth and texture of real stone at a fraction of the cost and structural demand. It’s ideal for both interior and exterior cladding, columns, feature walls, and facades. Stone veneer systems often include cavity spaces for moisture drainage and thermal insulation, improving building performance. With advances in fabrication and installation methods, veneers offer great versatility in contemporary architecture — blending traditional materiality with modern construction efficiency.
Final Thoughts:
From the precisely carved ashlar blocks of ancient temples to the engineered gabion cages of modern landscapes, stone masonry continues to evolve as both craft and construction method. Each type — whether structural or decorative — reveals a different relationship between material, technique, and environment. Understanding these masonry systems allows architects to make informed design choices that balance aesthetics, durability, and context. Stone, in all its forms, remains one of architecture’s most enduring languages — timeless, tactile, and deeply rooted in the human experience of building with the earth itself.
