Architect’s Guide to Pergola Joinery:
A pergola is one of the most versatile architectural features for outdoor design, combining functionality, structure, and aesthetic appeal. Traditionally used as open-roofed frameworks in gardens, courtyards, and terraces, pergolas today extend beyond landscaping—they act as transitional spaces that provide shade, rhythm, and identity to built environments. To design a durable pergola, architects must understand its structural details: from how its columns are grounded to how beams, joists, and slats are assembled and connected. This guide explores the essential construction elements of a pergola, their roles, and architectural significance, supported by the kinds of detail drawings that clarify their assembly.

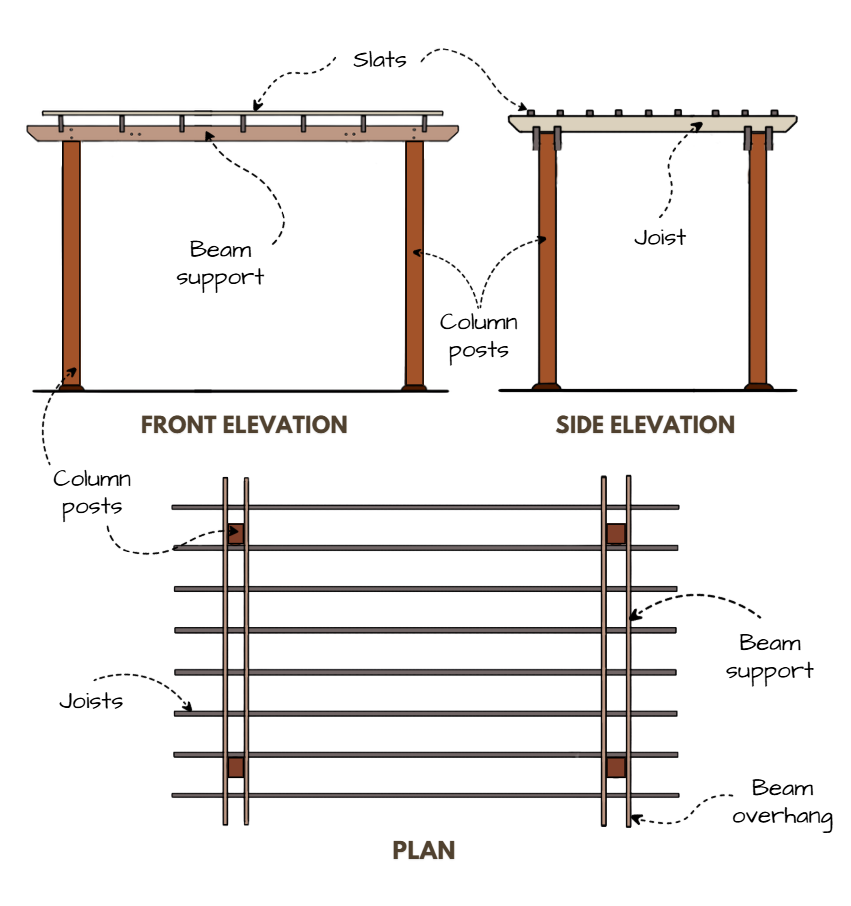

Image Credits: Shivani Chougula @Kaarwan
1. Column Posts:
Columns form the foundation of any pergola, providing vertical support and transferring loads to the ground. They can either be embedded directly into concrete footings or attached with steel base plates fixed onto pedestals. The embedment depth typically depends on soil conditions and wind exposure, ensuring stability against lateral forces. Materials often used include treated timber, steel hollow sections, or reinforced concrete depending on design intent and longevity. For wooden pergolas, posts are pressure-treated to resist rot and termites, and joinery may involve concealed bolts or mortise-and-tenon cuts. The precision of column alignment is critical as it dictates the structural geometry and rhythm of the pergola.
2. Beam Support:
Resting on the columns, beams form the main horizontal framework that defines the span and proportion of the pergola. Beams are usually bolted, strapped, or seated on top of posts with steel brackets to resist wind uplift and horizontal thrust. Their cross-section sizes depend on span length and the load of secondary members like joists and slats. In timber pergolas, beams may be chamfered or detailed with decorative end cuts, while in steel or concrete systems they provide a more minimal aesthetic. Structurally, beams distribute loads evenly across posts, creating stability for the overall skeleton.
3. Joists:
Running perpendicular to the beams, joists act as secondary framing members. They divide the pergola into bays and support the arrangement of slats or lattice elements above. Joists are typically seated on beam notches, attached with joist hangers, or bolted directly for stronger fixity. Their spacing can be adjusted to achieve desired shading density—closer spacing increases coverage while wider spacing allows more light. In addition to functionality, joists add rhythm and depth, giving pergolas their characteristic layered shadow play.
4. Slats:
Slats, also known as purlins or battens, form the topmost layer of the pergola. They are usually laid perpendicular to joists and determine the shading quality and architectural expression of the structure. Fixed slats can be aligned at different angles for controlled sunlight penetration, while adjustable louvers or retractable slats add flexibility. Common materials include hardwood, engineered timber, aluminum, or polycarbonate sheets for partial weather protection. Detailing here is crucial—hidden screws, dowels, or clip-on systems ensure neat finishes and durability against outdoor exposure. Slats transform a pergola from a skeletal frame into a habitable microclimate of filtered light and shade.
5. Material and Joinery Considerations:
The material palette of a pergola significantly impacts its performance. Timber offers warmth and traditional appeal but requires periodic treatment. Steel and aluminum are durable and low-maintenance, making them suitable for contemporary settings. Concrete pergolas are more permanent and often integrated into larger structures. Joinery details—whether traditional carpentry techniques like dovetail joints or modern steel brackets—must balance strength, aesthetics, and ease of assembly. Weatherproof coatings, rust-resistant fasteners, and proper drainage details further extend the life of the pergola.
6. Pergola Detailing Beyond Structure:

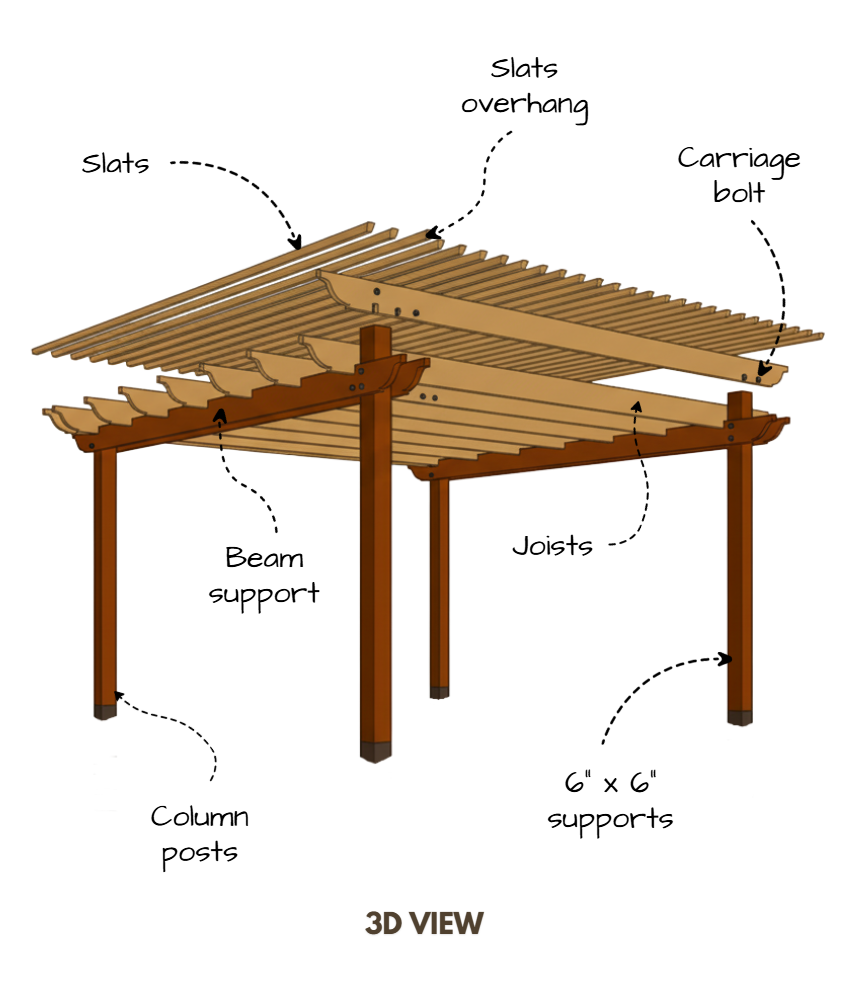

Image Credits: Shivani Chougula @Kaarwan
Architectural detail drawings often include additional layers that elevate a pergola’s usability. Integrated lighting systems can be recessed into joists or beams for nighttime ambience. Pergolas may also incorporate climbing plants, fabric canopies, or retractable shading panels to adapt to climate. Drainage considerations—such as directing rainwater away from posts—are vital to avoid long-term damage. In urban contexts, pergolas serve as outdoor extensions of cafés, restaurants, or residential terraces, acting as social and leisure anchors. These details collectively highlight how a pergola is not merely decorative but a functional, enduring architectural intervention.
Final Thoughts:
Pergolas embody the perfect blend of structure and open-air design, enhancing outdoor spaces with rhythm, shade, and atmosphere. Their construction requires thoughtful detailing of posts, beams, joists, and slats, along with careful consideration of materials, joinery, and finishes. When designed well, pergolas not only extend usability of outdoor spaces but also create architectural signatures that connect people with nature. Whether minimal or ornate, permanent or modular, pergolas remain timeless elements that exemplify how architecture shapes experience.
