BIM for Quantity Surveyors: How 5D BIM Changes Take-Off, Costing and Your Career

BIM for quantity surveyors means taking quantities and costs from a data-rich 3D model instead of measuring every drawing by hand. In 5D BIM, each model element carries quantity data that links to rates, so when the design changes, the quantity picture changes with it. You still set the measurement rules, the rates and the risk. The model just hands you quantities faster, as long as it was built to be measured.

 A 2019 study of quantity surveyors by Mayouf, Gerges and Cox found that unclear workflows and inflexible cost standards limit how far 5D can be trusted.

This guide covers the workflow, the tools, the limits, the roles and how to pick a course.

What is BIM for quantity surveyors?

It's the use of a BIM model as your main source for quantities, BOQ items and cost updates, rather than 2D drawings and a scale rule.

Think of the old routine. Drawings arrive, you measure, you dump numbers into Excel, and a revision lands on Friday evening. Then you re-measure. With BIM for QS, the model holds walls, slabs, columns and doors as objects with dimensions, materials and levels attached. You query them instead of tracing them.

Your job doesn't vanish, though. Someone still has to decide what gets measured, how, and at what rate. That someone is you.

What is 5D BIM and how is it different from 3D?

3D BIM is the geometry. 4D adds the construction schedule. 5D adds cost, so every element can be tied to a rate, a BOQ item or a cost code.

That's the short version. If you want the longer one, our guide on what is 5D BIM walks through all the dimensions. This page stays on the QS side: what you actually do with the fifth one.

Also Read : How BIM Can Help Reduce Construction Costs

Want to learn the model side of 5D? Kaarwan's Revit & BIM course covers Revit-based workflows, including 4D/5D simulation, with project work throughout.

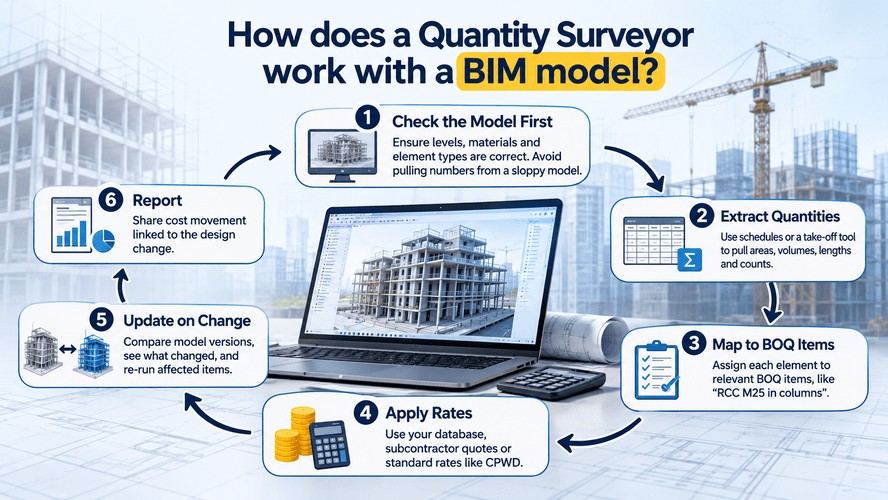

How does a quantity surveyor work with a BIM model?

You work through six steps, and the order matters more than the software.

1. Check the model first: Before you pull a single number, open it and look. Are levels, materials and element types filled in? Is anything modelled twice? A quantity pulled from a sloppy model is just a wrong number that looks confident.
2. Extract quantities: Use schedules or a take-off tool to pull areas, volumes, lengths and counts by element, level or zone. If you're new to this, our guide to quantity take-off in Revit shows the schedule side step by step.
3. Map to BOQ items: Each element group needs a home in your BOQ, such as "RCC M25 in columns" or "formwork to slab soffit". Mapping is where most of the real thinking happens.
4. Apply rates: Rates still come from you: your own database, subcontractor quotes or a schedule of rates like the CPWD Delhi Schedule of Rates for government-style work.
5. Update on change: When the design revises, compare the two model versions, see which elements moved, and re-run the affected items instead of starting over.
6. Report: Cost movement, linked back to the specific design change that caused it. Clients love this. Arguments get shorter.

Here's a small example. Say an 18-storey residential tower has a revision that increases column sizes on the lower floors. In a manual workflow, you'd re-measure concrete, formwork and probably the steel. In a model-based workflow, the concrete volume updates from the schedule almost immediately.

But the formwork area needs its rule checked, and the steel only changes if reinforcement is actually modelled. That's the pattern: the model speeds up what it contains and says nothing about what it doesn't. (This is an illustration, not a project report.)

What changes for a QS: manual take-off vs model-based take-off?

The measuring gets faster. The checking gets more important.

Now the India bit, because this is where people get caught. Indian tenders are generally measured to the BIS standard IS 1200. It's a multi-part series, with separate parts for trades like concrete works and formwork.

Concrete is measured by volume, formwork by contact area, and the rules about deductions for openings are specific. A model doesn't know any of that on its own. You have to set the rules so the extracted number matches how your tender wants it measured, whatever the software's defaults assume.

Estimating basics still matter too. Our post on types of cost estimates covers where take-off sits in preliminary, plinth area and detailed estimates.

Which BIM tools do quantity surveyors use?

Most QS teams use a mix: the authoring model, a viewer or take-off tool, and Excel for the rest.

Don't treat that as a ranking. Which tool a team uses depends on the employer and the project, so ask what your target companies actually run before you invest months in one. Our rundown of 5D BIM tools goes deeper.

What are the limits of 5D BIM for quantity surveyors?

A model won't build a complete BOQ for you. It misses the things nobody modelled.

Temporary works, site overheads, preliminaries, waste and laps, provisional sums, anything dependent on site conditions: these live outside the model. Reinforcement is the classic gap, because many models stop at concrete geometry. In India, steel usually still comes from a bar bending schedule, not the model.

Then there's workflow. Indian projects often receive a mix of models, DWG files, PDFs and Excel sheets from different consultants, so a "pure BIM" workflow is rare. Most of the time it's hybrid: model quantities where the model is good, 2D measurement where it isn't. That's normal. It's also exactly the kind of messy reality the Mayouf study points at, where unclear processes limit reliability.

And one honest warning: automation can create false confidence. A tidy schedule looks trustworthy even when the model behind it is wrong. Sample-check against drawings. Always. For where this is heading, see BIM trends in India.

What BIM roles can a quantity surveyor move into?

You can move into roles that sit between the model and the money.

No salary figures here on purpose. Pay depends on the role, the employer and your experience, and anyone quoting one number for "BIM QS" is guessing. For the bigger picture, our piece on career growth in BIM vs traditional roles lays out how the paths differ.

Do quantity surveyors need to learn Revit modelling, or only take-off?

You don't need to become a full-time modeller. But you do need to read a model, and the more you understand how it's built, the better you'll spot its mistakes.

If you can't tell why a wall's volume looks wrong, you can't fix the quantity. Knowing how families, types and parameters work, and how schedules pull from them, makes you faster and much harder to fool. A civil background helps too, since you already think in concrete, steel and finishes.

How to move from QS to 5D BIM: a step-by-step path

Five steps, in this order.

1. Get comfortable with a model: Open one, click elements, read parameters, build a simple schedule.
2. Learn quantity take-off from Revit: Schedules, filters, grouping by level and type.
3. Practise BOQ mapping: Take a small model and map elements to BOQ items using IS 1200 logic. Notice what the model can't give you.
4. Link cost: Attach rates, build a priced BOQ, then change the model and watch what moves.
5. Do one full project: A real or realistic one, start to finish. This is what you'll talk about in interviews.

What should a 5D BIM course for quantity surveyors cover?

A good one covers five things:

•  Reading and checking models
• Quantity take-off from Revit
• BOQ mapping
• Cost linking
• One worked project

If a course skips the worked project, be careful. Watching take-off is not the same as doing it on a messy model. Kaarwan's Advance Revit & BIM Certification covers Revit-based workflows including 4D/5D simulation, so it's the right fit if you want the model side of 5D. Check the brochure for the exact modules before you decide.

Self-learning vs a structured course: which suits a quantity surveyor?

Both work. They suit different people.

If you're disciplined and already know Revit basics, self-learning can get you far. If you've tried that and stalled twice, a course gives you the structure and the feedback loop.

Three takeaways:

1. BIM gives you faster quantities, but you still own the rules, the rates and the risk.
2. Check the model before you trust it, and remember what it never contains.
3. Start with one small project. Nothing teaches 5D like pricing something and watching it change.

Interested in bringing BIM into your quantity surveying workflow? Learn Revit, explore 4D/5D BIM workflows, and work on practical projects through Kaarwan’s Revit & BIM Certification Program.

FAQs

What is 5D BIM in quantity surveying?

It's using a 3D model whose elements carry quantity and cost data, so a design change updates quantities and cost. The QS sets the measurement rules and rates.

Is BIM replacing quantity surveyors?

No. BIM speeds up measurement, but judgement on rates, risk, contracts and unmodelled items still sits with the QS. The role shifts toward checking, analysis and advice.

Which software is used for 5D BIM?

Teams usually combine an authoring tool like Revit, a viewer or take-off tool such as Navisworks or CostX, and Excel. The right mix depends on the employer.

Do I need Revit to be a BIM quantity surveyor?

You don't need to model full buildings, but you need to read models and pull schedules. Basic Revit knowledge makes that much easier.

Can a civil engineer become a BIM quantity surveyor?

Yes. A civil background helps with understanding structure, concrete and steel. You'll need take-off, BOQ mapping and cost-linking skills on top.

Is there a BIM course for quantity surveyors?

Yes, but check the syllabus. Look for quantity take-off from Revit, BOQ mapping, cost linking and a worked project, rather than modelling alone.

Is a 5D BIM course worth it for a QS?

It's worth it if it includes hands-on take-off and costing on a real model. A course that only teaches modelling won't close the gap.

What is the salary of a BIM quantity surveyor?

There's no single figure. Pay depends on the role, employer, city and your experience, so check current job listings for the specific role you want.
